NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches

China NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier
NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches supplier

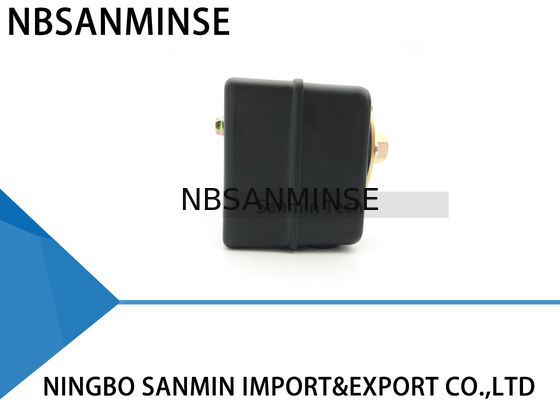

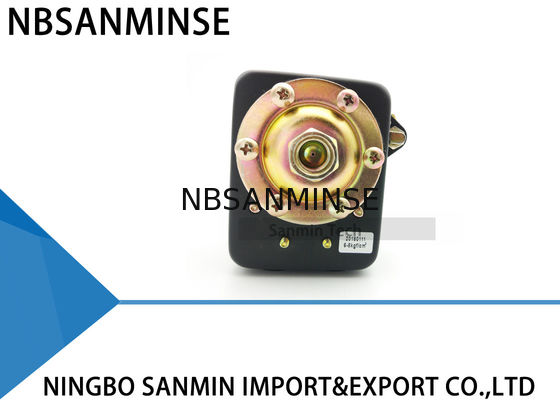

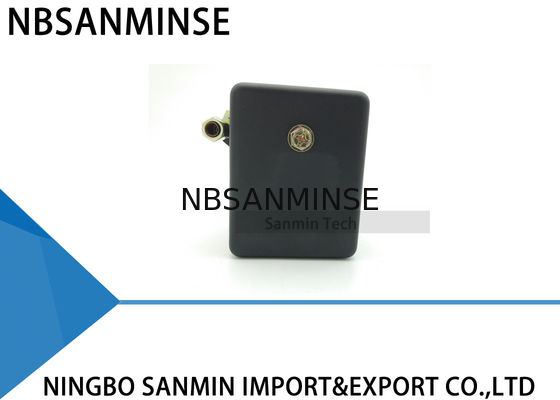

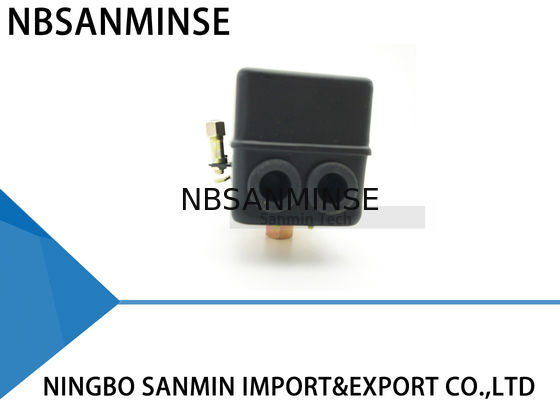

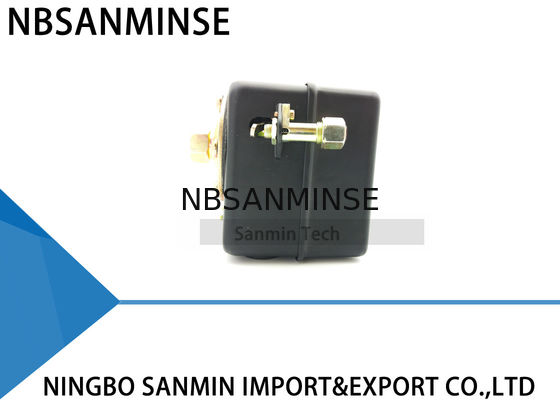

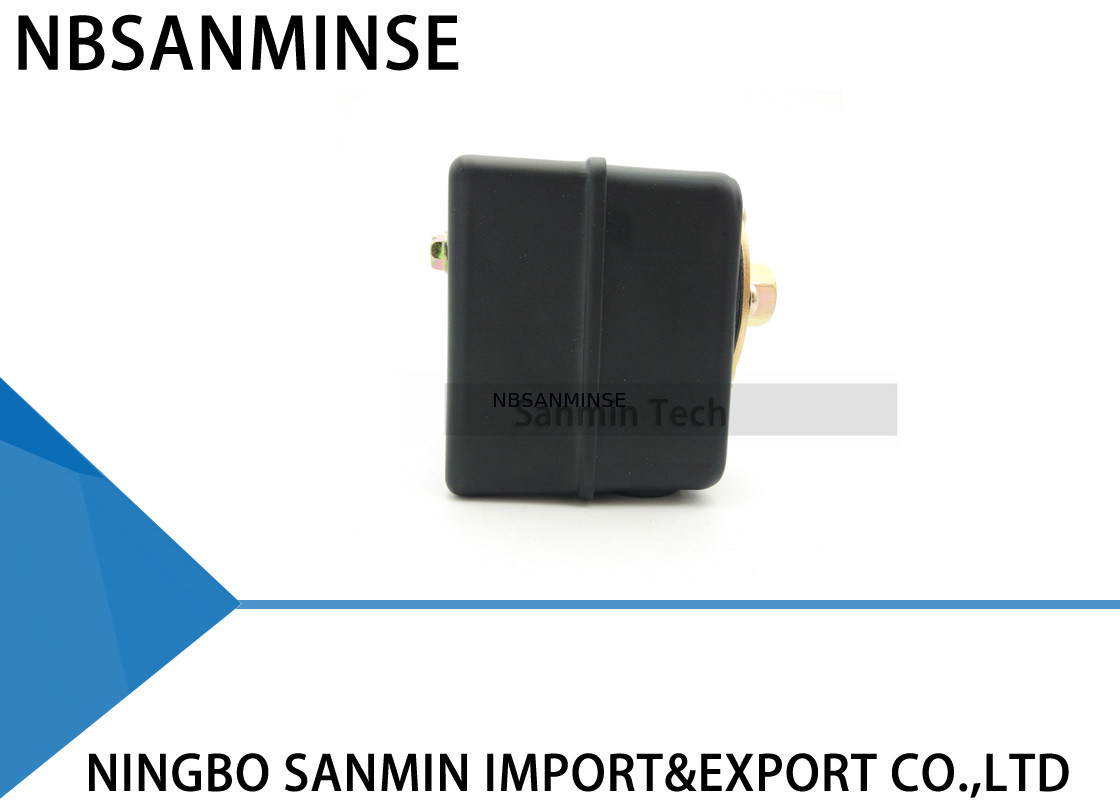

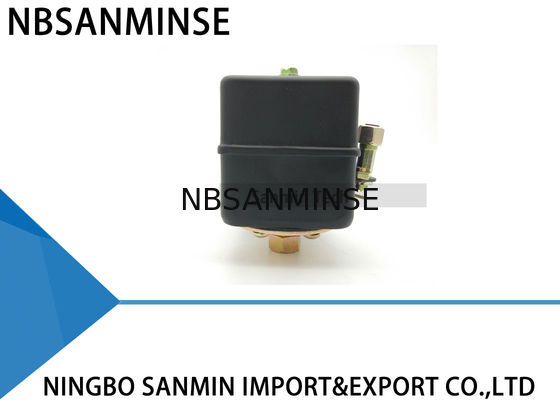

Large Image :  NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches

Product Details:

Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: CE
Model Number: SMF17

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Features: Sturdy Painted Steel Item Type: Switches
Warranty: 12 Months Min ON: 40,15 PSI
Max Off: 250,60 PSI Differential: 25-60,7-15PSI

NBSANMINSE SMF17 1/4 3/8 NPT Thread Air Compressor Pressure Switch High Pressure Switches

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

IMG_20180117_143729.1__ IMG_20180117_143717.1__ IMG_20180117_143706__ IMG_20180117_143725.1__ IMG_20180117_143702.1__ IMG_20180117_143713.1__


NPT1-4 = NPT 1/4"
NPT 3-8 Adapter = NPT 1/4" to 3/8" Adapter


The rugged SMF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.



Sturdy Stamped Steel Case & Cover Visible Contact
No Drift Pressure Setting Captive Cover nut
Ample Wiring Room 2 Ground Screw
Easy to Adjust Automatic Unloader Valve Available
Pulsation Dampener Standard 5HP Heavy Duty Rating
250 PSI Max



MODEL
Min ON (Cut-In)PSI
Max Off
(Cut-Out) PSI
Differential
PSI
Factory Setting PSI
Electrical Rating
Pipe Fittings
Contact Arrangement
120VAC
240VAC
SMF17
40
250
25-60
145-175
24A
12A
1/4", 3/8" Male or Female NPT
NC
SMF17-S
15
60
7-15
30-40
24A
12A
1/4", 3/8" Male or Female NPT
NC

Conversion: 1Kgf/cm2 = 14.2PSI , 1Bar = 14.5PSI
Approval: UL, CSA


Why choose us
1: Various style for each products and completely series pneumatic products .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Large stock for fast shipping .


FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
