Double Acting Single Rod Pneumatic Air Cylinder Bore Size 6 / 10 / 16 1MPa

China Double Acting Single Rod Pneumatic Air Cylinder Bore Size 6 / 10 / 16 1MPa supplier

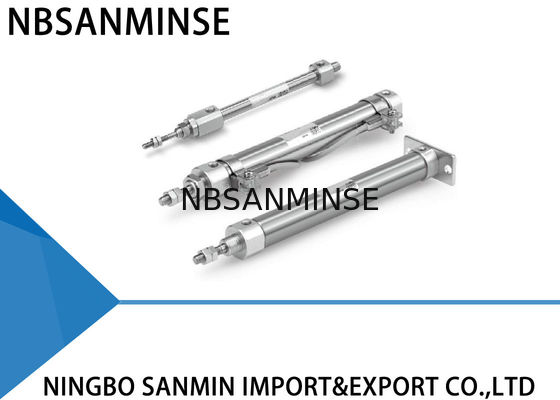

Large Image :  Double Acting Single Rod Pneumatic Air Cylinder Bore Size 6 / 10 / 16 1MPa

Product Details:

Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: CJ2

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Bore Size: 6 , 10 , 16 Action: Double Acting , Single Rod
Fluid: Air Proof Pressure: 1MPa
Lubrication: Not Required( No - Lube ) Auto Switch: Without Auto Switch

CJ2 Air Cylinder Standard Type Double Acting Single Rod SMC Pneumatic Cylinder







Specifications



Bore Size ( mm ) 6 10 16
Action Double Acting , Single Rod
Fluid Air
Proof pressure 1 MPa
Maximum operating pressure 0.7MPa
Minimum operating pressure Rubber bumper 0.12MPa 0.06MPa
Air cushion - 0.1MPa
Ambient and fluid temperature

Without auto switch : -10 ℃ to 70 ℃ (No freezing)

With auto switch : - 10 ℃ to 60 ℃ (No reezing)

Cushion Rubber Bumper Rubber bumper / Air Cushion
Lubrication Not required ( Non – lube )
Piston Speed Rubber bumper 50 to 750 mm/s
Air cushion - 50 to 1000 mm/s
Allowable Kinetic energy Rubber bumper 0.012J 0.035J 0.090J
Air Cushion (Effective cushion length ) -

0.07J

(9.4mm)

0.18J

(9.4mm)

Stroke length tolerance

+1.0

0





Standard Strokes



Bore Size Standard Stroke Max Manufacturable Stroke
6 15 , 30 , 45 , 60 200
10 15 , 30 , 45 , 60 , 75 , 100 , 125 , 150 400
16 15 , 30 , 45 , 60 , 75 , 100 , 125 , 150 , 175 , 200 400



Why choose us


1: Various style for each products and completely series pneumatic products .

2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Large stock for fast shipping .



FAQ


Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.Double Acting Single Rod Pneumatic Air Cylinder Bore Size 6 / 10 / 16 1MPaDouble Acting Single Rod Pneumatic Air Cylinder Bore Size 6 / 10 / 16 1MPa
