|Place of Origin:||NINGBO|
|Model Number:||QT - Y - 75S / 76S|
|Minimum Order Quantity:||20|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Pressure:||0 . 2 ~ 0 . 6MPa||Temperature:||- 25 ~ 60 ℃|
|CV / KV:||Call Us For Detail||Body:||ADC12 Die Cast|
|Armature:||430 FR Stainless Steel||Diaphragm:||Nitrile Or Vtion|
pulse air valve,
pulse jet solenoid valve

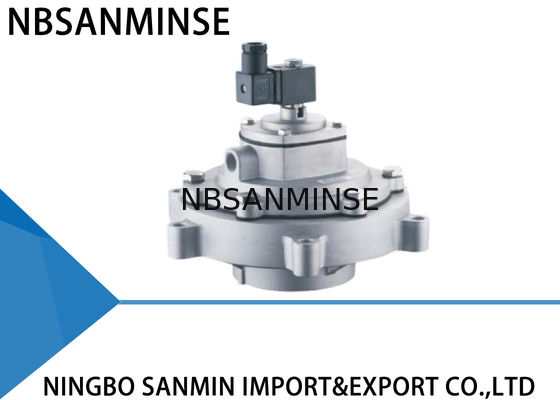

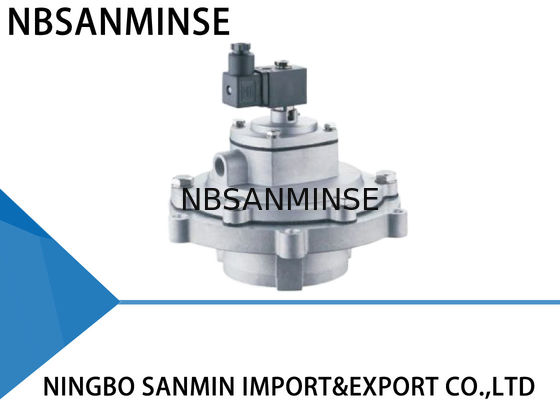

QT - Y - 75S / 76S TURBO Similar Type Embedded G3 " Diameter Double Diaphragm Pulse Valve
Electromagnetic valve ( Also called diaphragm valve ) is the” switch “for compressed air in the dust clean blowing system of the pulse bag filter . Controlled by the output signals of the pulse jet control device , it makes dust clean to the filter bags cell by cell to keep the resistance of the baghouse within the set range and thus guarantee the processing functions and the dust collecting efficiency of the baghouse .
Y type electromagnetic pulse valves is a suble for the work occasions embedded valve ) , is directly installed in the gas bag , with better flow characteristics . As pressure losses drops , it will be suitable for the work occasion of loser pressure gas source .
The electromagnetic pulse diaphragm valve is composed of two gas cells . When the compressed air is connected , it comes into the back bags cell though the orifice , the pressure in the back gas cell pushes the diaphragm against the outlet of the valve and the electromagnetic valve stays in the “ closed ” condition .
When the electromagnetic pulse valve returns to its original position .
The air escape of the back gas cell closes and the pressure in the back gas cell cell rises , which pushes the diaphragm closely again .
The electrical signals from the pulse jet control device move the armature of the electromagnetic pulse valve . The air escape of the back gas cell opens and the back bag gas cell loses pressure quickly , thus the diaphragm moves back and the compressed air blows through the valve outlet . The electromagnetic pulse valve comes into the “ open ” condition .
Body : ADC12 die cast
Armature : 430 FR stainless steel
Diaphragm : Nitrile or Viton
Spring : 321 stainless steel
Fasteners : 302 stainless steel
Good quality membranes shall be selected and used for all the valves , with each part checked in each manufacturing procedure , and put into the assembly ling conforming to all the procedures , Every finished valves shall be taken the electriferous blowing test .
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: Large stock for fast shipping .
6: High quality with competitive price .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
