Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure

Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure

  • Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure
  • Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure
  • Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure
  • Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure
Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure
Product Details:
Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: STV / A530
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Action Type: Internal Pilot Type Position: Two Position Five Port / Three Position Five Port
Temperature: - 5 ~ 60 ℃ Pressure: 0 . 15~ 0 . 8 MPa
Protection Class: IP65 Voltage Range: - 15 % ~ + 10 %
High Light:

pneumatic air valve

,

pneumatic directional control valve

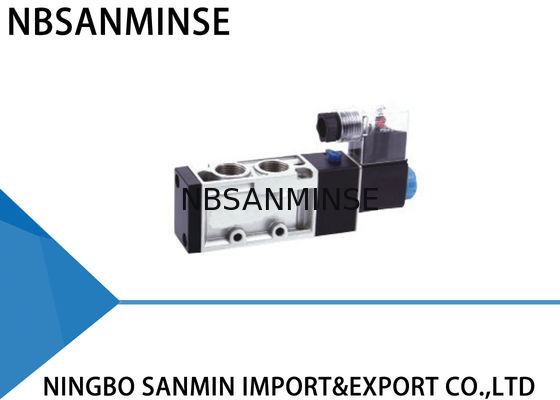

STV / A530 Solenoid Valve , Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure





Ordering Code



ST



V : Solenoid Valve

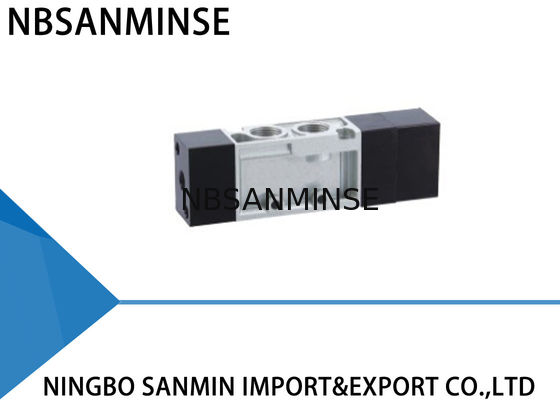

A : Pneumatic Control Valve



Specification : Five Port



Series : 3



Coil and Places

1 : Single - Coil Double - Position

2 : Double - Coil Double - Position

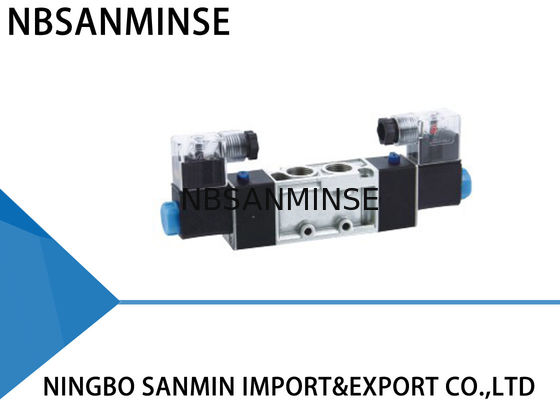

3C : Double - Coil Three - Position Close Type

3E : Double - Coil Three - Position Exhaust Type

3P : Double - Coil Three - Position Pressure Type



Thread Pipe

10 : G3 / 8 "



Standard Voltage

DC12V

DC24V

AC24V 50 / 60Hz

AC110V 50 / 60Hz

AC220V 50 / 60Hz

AC380V 50 / 60Hz



Specification



Model STV531 - 10 STV532 - 10 STV533C - 10 STV533E - 10 STV533P - 10
STA531 - 10 STA532 - 10 STA533C - 10 STA533E - 10 STA533P - 10
Working Medium 40 Micron Filtered Air
Acting Type Internal Pilot Type
Thread Pipe Air Inlet = Air Outlet = 3 / 8 “ Air Exhaust 1 / 4 “
The Position Counting Two – Position Five Port Three – Position Five - Port
Operating Temperature ( ℃ ) - 5 ~ 60 ℃
Sectional Area 30mm² ( Cv=1.67 ) 18mm² ( Cv=0.1 )
Working Pressure ( MPa ) 0.15 ~ 0.8 MPa
Max . Pressure Resistance ( MPa ) 1.2MPa
Protection Class IP65
Max . Action Frequency 5 Cycles / Second 3 Cycles / Second
Voltage Range - 15 % ~ + 10 %
Shortest Excitation Time 0 . 05 Second





Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure 0Pneumatic Control Valve G3 / 8 " Thread Pipe 0 . 15 ~ 0 . 8MPa Pressure 1
