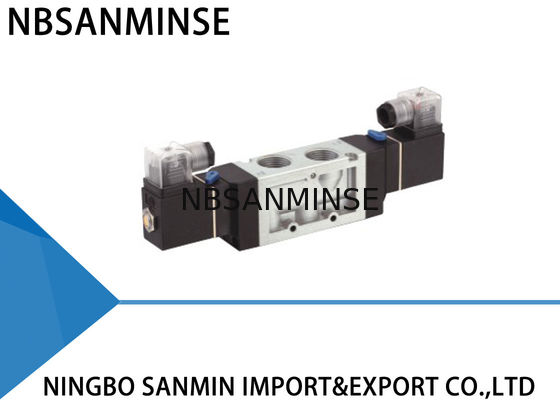

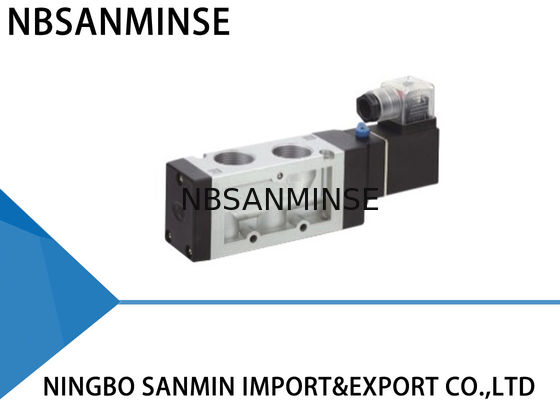

STV / STA 560 Series Big Flow Control Valve IP65 Protection Solenoid Valve Pneumatic

STV / STA 560 Series Big Flow Control Valve IP65 Protection Solenoid Valve Pneumatic

  • STV / STA 560 Series Big Flow Control Valve IP65 Protection Solenoid Valve Pneumatic
  • STV / STA 560 Series Big Flow Control Valve IP65 Protection Solenoid Valve Pneumatic
STV / STA 560 Series Big Flow Control Valve IP65 Protection Solenoid Valve Pneumatic
Product Details:
Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: STV / STA 560
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Type: Solenoid Valve , Pneumatic Control Valve Specification: Five Port
Series Code: 6 Thread Pipe: G1 "
Working Medium: 40 Micron Filtered Air Acting Type: Internal Pilot Type
High Light:

pneumatic directional control valve

,

pneumatic electric valve

STV / STA 560 Series Big Flow Control Valve IP65 Protection Class G 3 / 4 " Port Size





Technical Specification Table



Model :

STV561 – 25 STV562 – 25 STV563C – 25 STV563E – 25 STV563P – 25

STA561 - 25 STA562 - 25 STA563C - 25 STA563E - 25 STA563P – 25



Working Medium :

40 Micron Filtered Air



Acting Type :

Internal Pilot Type



Thread Pipe :

Air Inlet = Air Outlet = 1 “ Air Exhaust = 3 / 4 “



The Position Counting :

Two – Position Five Port ,Three – Position Five – Port



Operating Temperature ( ℃ ) :

- 5 ~ 60 ℃



Sectional Area :

110mm² ( Cv=6.0 ) , 81mm² ( Cv=4.5 )



Working Pressure ( MPa ) :

0.15 ~ 0.8 MPa



Protection Class :

IP65



Voltage Range :

- 15 % ~ + 10 %



Ordering Code



ST



Type :

V : Solneoid Valve

A : Pneumatic Control Valve



Specification

Five Port



Series Code

6



Coil and places

1 : Single - Coil Double - Position

2 : Double - Coil Double - Position

3C : Double - Coil Three -  Position Close Type

3E : Double - Coil Three - Position Exhaust Type

3P : Double - Coil Three - Position Pressure Type



Thread Pipe

25 : G1 "



Standard Voltage

DC12V

DC24V

AC24V 50 / 60 Hz

AC110V 50 / 60 Hz

AC220V 50 / 60 Hz

AC380V 50 / 60 Hz
