SY7000 Small Smc Solenoid Valve Manifold Mounted / Individually High Reliability
SY 3120 - M5 , SY3220 - M5 , SY 3140 - M5 , SY 3320 - M5 , SY 5120 - 01 , SY 5220 - 01 ,

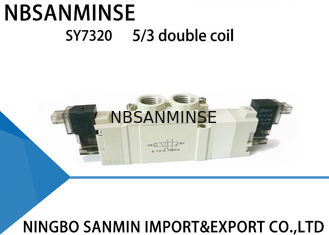

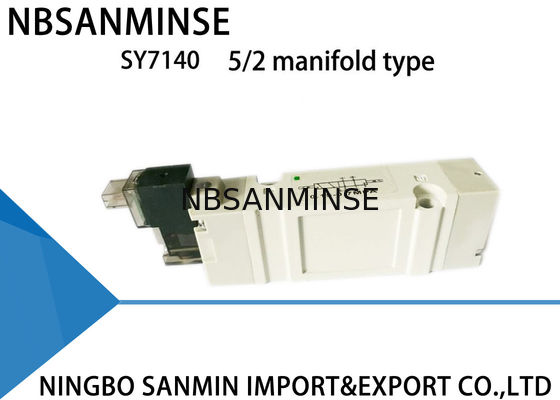

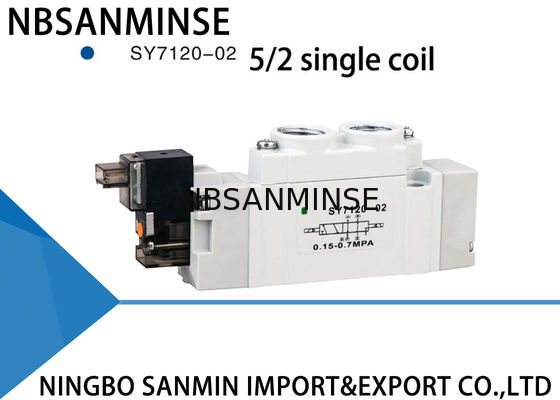

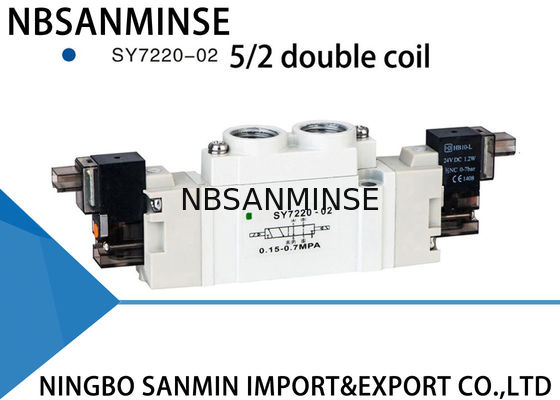

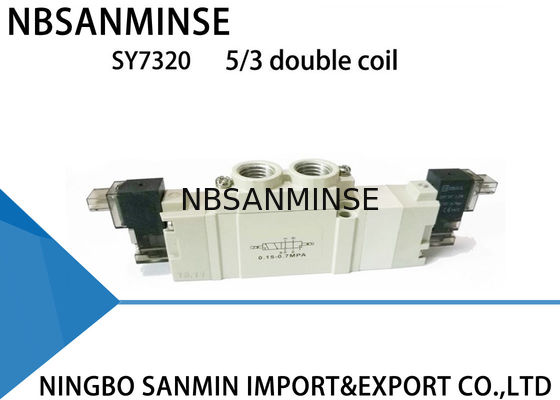

SY5140 - 01 , SY 5320 - 01 , SY 7120 - 02 , SY7220 - 02 , SY 7140 - 02 , SY 7320 - 02
Response Time
| Series |
Type of actuator |
Response time ( at the pressure of 0.5MPa ) |
|
Without light / surge
Voltage suppressor
|
With light / surge voltage suppressor |
| Type Z |
| SY7000 |
2 position single |
31ms or less |
38ms or less |
| 2 position double |
27ms or less |
30ms or less |
| 3 position |
50ms or less |
56ms or less |
Specifications
| Series |
SY7000 |
| Fluid |
Air |
| Internal Pilot Operating Pressure Range |
2 Position Single |
0 . 15 ~ 0 . 7 MPa |
| 2 Position Double |
0 . 1 ~ 0 . 7 MPa |
| 3 Position |
0 . 2 ~ 0 . 7 MPa |
| Ambient and fluid Temperature |
- 10 ~ 50 ℃ ( No freezing ) |
| Max . operating frequency |
2 Position Single , Double |
10 Hz |
5 Hz |
5 Hz |
| 3 Position |
3 Hz |
3 Hz |
3 Hz |
| Manual override ( Manual operation ) |
Non – locking push type |
| Pilot exhaust method |
Common exhaust type for main and pilot valve |
| Lubrication |
Not required |
| Mounting orientation |
Unrestricted |
| Impact / Vibration resistance |
150 / 30 ( m / s ² ) |
| Enclosure |
Dustproof |
Solenoid Specifications
| Electrical entry |
L plug connector ( L ) |
| Coil rated voltage ( V ) |
DC |
24 , 12 |
| AC 50 / 60 Hz |
110 , 220 |
| Allowable voltage fluctuation ( % ) |
± 10 % of rated voltage |
| Power Consumption |
DC |
Standard |
0 . 35W ( With indicator light : 0 . 4 ) |
| Apparent Power |
AC |
110V |
1 . 6V A |
| 220V |
2 . 5VA |
| Indicator light |
LED |
Improved product performance and reliability with the redesigned SY series valve. The SY3/5/7000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. Improved solenoid and spool design makes the New SY the most durable valve in the market. The valve is rated at 70 million cycles for the rubber seal and 200 million cycles for the metal seal. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
FAQ
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
Our products are high quality with 12 month guarantee ,and support paypal payment.
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
