AP Automatic Drainer
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | EPC1 |
|
Detail Information |
|||
| Intrinsic Error: | 1% | Repeatability: | 0.5% |
|---|---|---|---|
| Hysteresis Error: | 1% | Air Pressure: | 140-700KPa |
| Maximum Flow: | 7.6m3/h(at 175KPa Air Supply)20m3/h(at 700KPa Air Supply) | Temperature: | -30℃~60℃ |
| Air Consumption: | 0.3m3/h | Power Interface: | NPT1/2(G1/2) |
| Shell Material: | Aluminum Alloy, Pensu Technology Processing | Overall Dimensions: | (Ordinary Type And Intrinsic Safety Type) Ex IaⅡCT6 Gb87x160x107(mm)(Flameproof Type)Ex DIBT6Gb:97x186x202(mm) |
| Weight: | (Ordinary Type And Intrinsic Safety Type)Ex IaⅡCT6 Gb 0.94kg(Flameproof Type)Ex DIBT6Gb 2.35kg | Lmpedance Ω: | 180 180 90 90 90 90 220 220 |
| Accessaries: | 0 Always 0 AS With Combined Air Filtering Pressure Reducing Valve OG With Pneumatic Pressure Gauge | Structure: | G Ordinary Type EX Flameproof Type I Intrinsic Safety Type |
Product Description

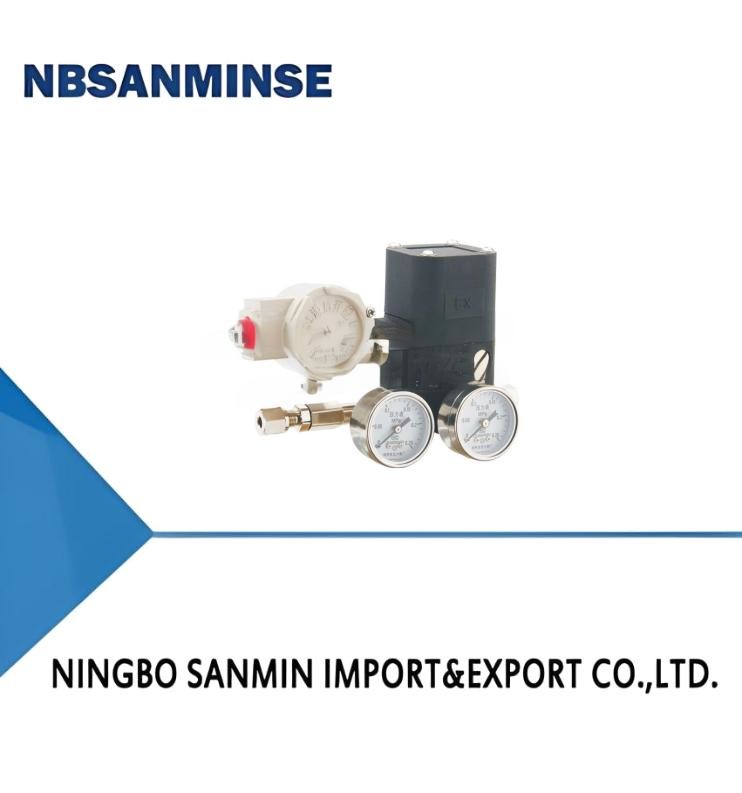

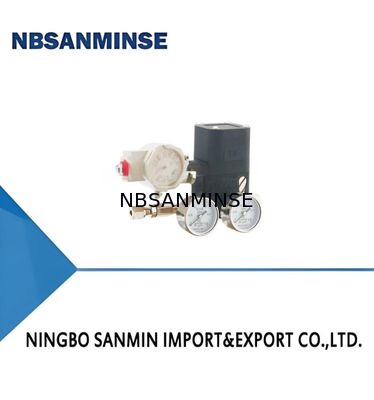

| EPC1000 electro -pneumatic valve positioner | |||
| EPC1000 series of electrical converter is a new type of structure of the electrical conversion unit, which can be different input current signal is converted to the corresponding output pneumatic signal. The converter has a pneumatic power amplifier inside, you can get a higher output power of pneumatic signals to a variety of pneumatic actuators to improve the operating speed of the actuator. | |||
| Intrinsic error | 1% | Repeatability | 0.5% |
| Hysteresis error | 1% | Air pressure | 140-700KPa |
| Maximum flow | 7.6m3/h(at 175KPa air supply)20m3/h(at 700KPa air supply) | Environment temperature | -30℃~60℃ |
| Air consumption | 0.3m3/h | Environmental humidity | 18~85%RH |
| Power interface | NPT1/2(G1/2) | Shell material | Aluminum alloy, Pensu technology processing |
| Overall dimensions |
(Ordinary type and intrinsic safety type) Ex iaⅡCT6 Gb87x160x107(mm)(Flameproof type)Ex dIBT6Gb:97x186x202(mm) |
Weight | (Ordinary type and intrinsic safety type)Ex iaⅡCT6 Gb 0.94kg(Flameproof type)Ex dIBT6Gb 2.35kg |
| Input signal mA DC | Output pressure K Pa | lmpedance Ω | |||
|
4-20
0-10 |
20-100 | 180 | |||
| 100-20 | 180 | ||||
| 20-60 | 90 | ||||
| 60-100 | 90 | ||||
| 60-20 | 90 | ||||
| 100-60 | 90 | ||||
| 40-200 | 220 | ||||
| 200-40 | 220 | ||||
| Model | Input current signal | Pneumatic output signal | Accessaries | Structure | |
| EPC1 |
1 4-20mA DC |
1 20-10OKPa Direct action |
0 Always 0 AS With combined air filtering pressure reducing valve |
G Ordinary type | |
| 2 0-10mA DC | 2 100-20KPa Direct action | OG With pneumatic pressure gauge | EX Flameproof type | ||
| 3 4-12mA DC | 3 20-60KPa Direct action split-ranging | I Intrinsic safety type | |||
| 4 12-20mA DC | 4 60-100KPa Direct action split-ranging | ||||
| 5 60-20K Pa Direct action split-ranging | |||||
| 6 100-60KPaDirect action split-ranging | |||||
| 7 40-200KPa Direct action | |||||
| 8 200-40KPa Direct action | |||||
| 9 80-240KPa | |||||
