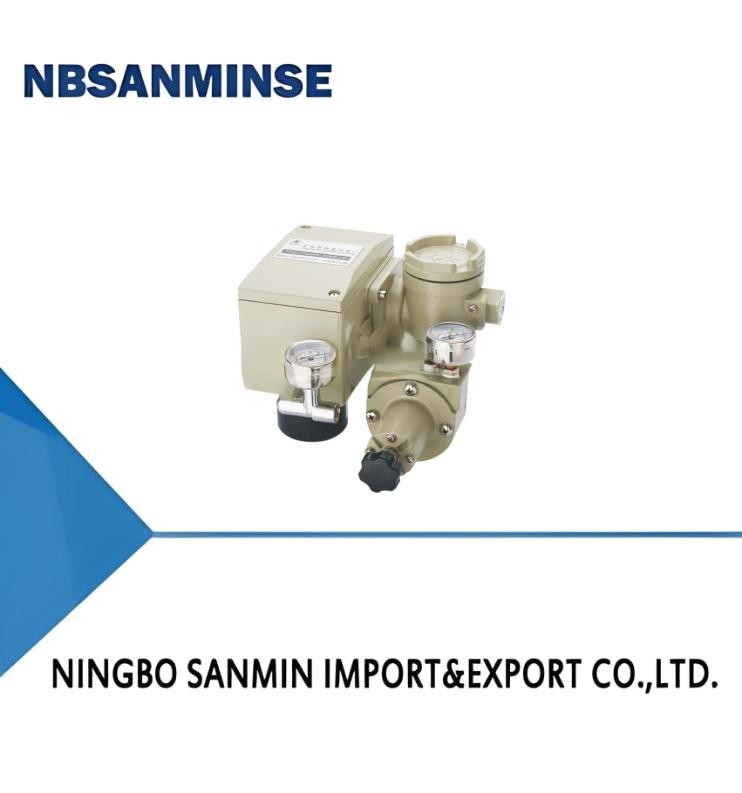

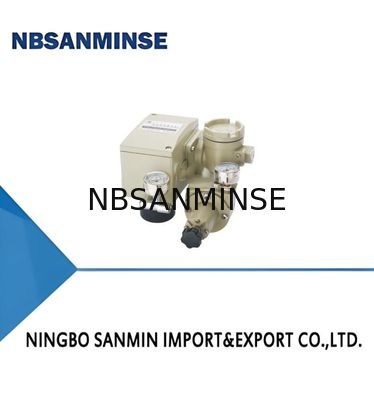

NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17

NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17
NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17
NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17 NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17

Large Image :  NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: CN
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17

Description
Air Supply Connection: Rc1/4 Relative Humidity: ≤90%
Linear: ±1% Hysteresis Error: 1%
Dead Band: 0.4% Protection Grade: IP65
Electrical Interface: NPT1/2(M22×1.5)
Highlight:

Gas Valve Locator

,

CN15/16/17 Electrical Interface Valve Locator

,

M22×1.5 Electrical Interface Valve Locator

CN15/16/17 series electrical and gas valve locator
NPT1/2 M22×1.5 Electrical Interface Electrical And Gas Valve Locator For Sanmin Series CN15/16/17 0

1.Relay, large capacity, small gas consumption, good stability, high sensitivity;

2. High precision electromagnetic components;

3. Adjustment and maintenance can be in the working status directly.

4. Magnet using high energy storage product of rare earth materials, the current through the elastic element input, need not lead.
First, Product Overview
XCN15/16/17 series electric - gas valve locator and regulator, the regulator output signals converted to drive the regulator gas signal, at the same time, according to the control valve opening position feedback, make the adjustment correctly positioned, it points, single and double effect in two forms.
Input signal Standard 4-20 mA DC, Split-ranging 4-12 mA DC, 12-20mA DC10-50mA DC (XCN-15,16,17; XCN-25,26,27)
Input impedence 250Ω(4-20mA DC),100Ω(10-50mA DC)
Gas supply pessure Single-action 0.14-0.16MPa:0.17-0.5MPa; Double-action 0.2-0.4MPa:0.41-0.7M Pa
Rated stoke Straight travel 10-100mm,Around the corner 0-90°
Electrical interface NPT1/2(M22×1.5)
Air supply connection Rc1/4
Environment temperature Explosion-proof type-20- + 60℃; Ordinary type-40- + 80℃
Relative humidity ≤90%
Linear ±1%
Hysteresis error 1%
Dead band 0.4%
Protection grade IP65
Explosion-proof grade Ex iaⅡCT6 Gb;Ex dICT6 Gb
Model Action Type Explosion-proof (protection) structure grade Feedback (action) manner Choose accessories



CN

 1 Single-action 5 Flameproof type Ex dⅡCT6 Gb 1 Straight travel



2 Double-acting 6 Intrinsic safety type Ex ia ⅡCT6 Gb 2 Quarter-turn (with RC actuator) + PTM (built-in valve position feedback)
_____ 7 Ordinary type _____ _____
