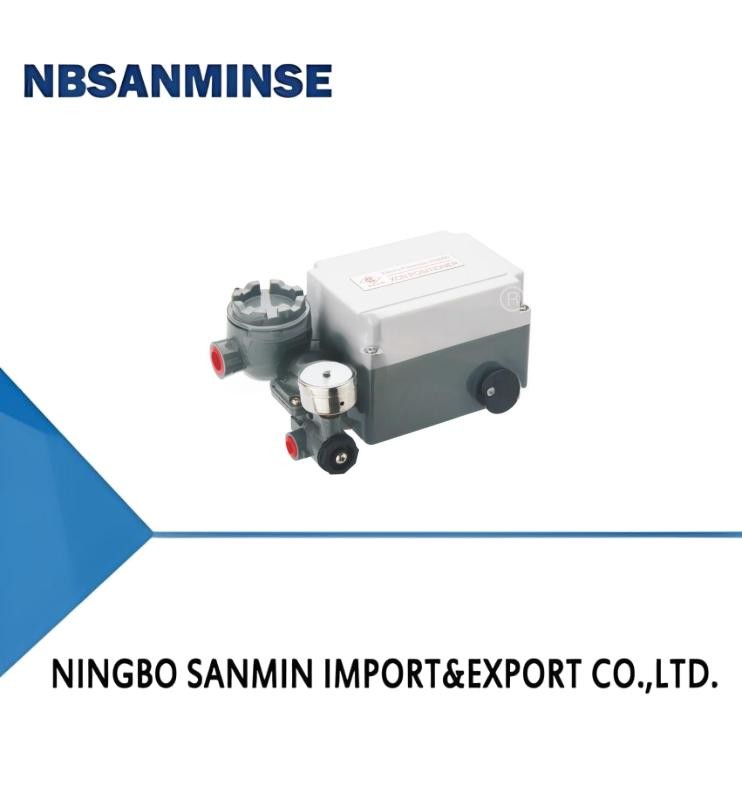

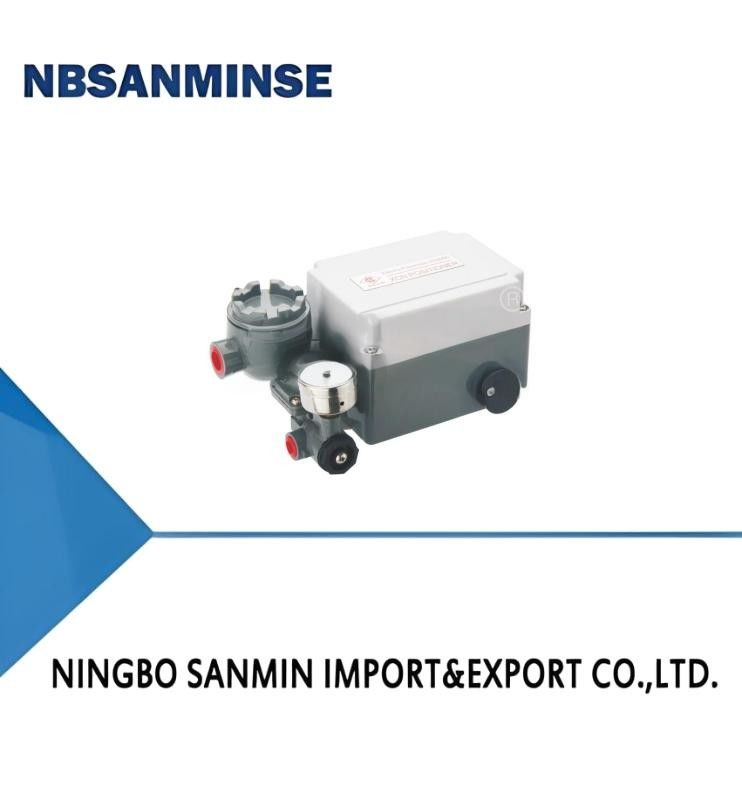

C6000 Series electricity - gas valve locator
|
 |
1. No resonance phenomenon within the range of 5-200Hz.
2. Simple don't have replacement parts can be 1/2 operation within scope of the process control.
3. Zero adjustment and range adjustment is very simple.
4. Positive action and reaction.
5. Feedback pole connection very simple.
6. Fast response and accurate.
7. Little air consumption,the economy is good.
8. On the small actuators can also use the guide valve orifice to prevent vibration phenomenon.
|
First, Product Overview
Electric valve positioner XC66000 is a kind of in the controller or control system for 4 - 20 mA current signal, and sending air to pneumatic actuators to control the valve opening device.
|
| Model |
Actuator move ment |
Mode of action |
Explosion-proof grade |
Feedback form |
Pilot valve exhaust hole |
Options |
| C6000 |
L Linear |
S Single-action |
M Ex dmb ⅡBT 6 Gb |
1Line type: 10-30mm |
1Actuator volume is less than 90cm³ |
0Not have No |
|
|
M Ex dmb ⅡBT 6 Gb |
2Linear type: 20-40mm |
2Actuator volume 90 to 180 cm ³ |
1+PTM |
|
|
M Ex iaⅡCT6 Gb |
3Linear type: 30-60mm |
3Actuator volume is greater than 180cm³ |
2+ L / S (Built-in limit switch) |
|
|
M Non explosion-proof
|
|
|
3+PTM+L/S(Built-in valve position feedback and limit switch) |
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
