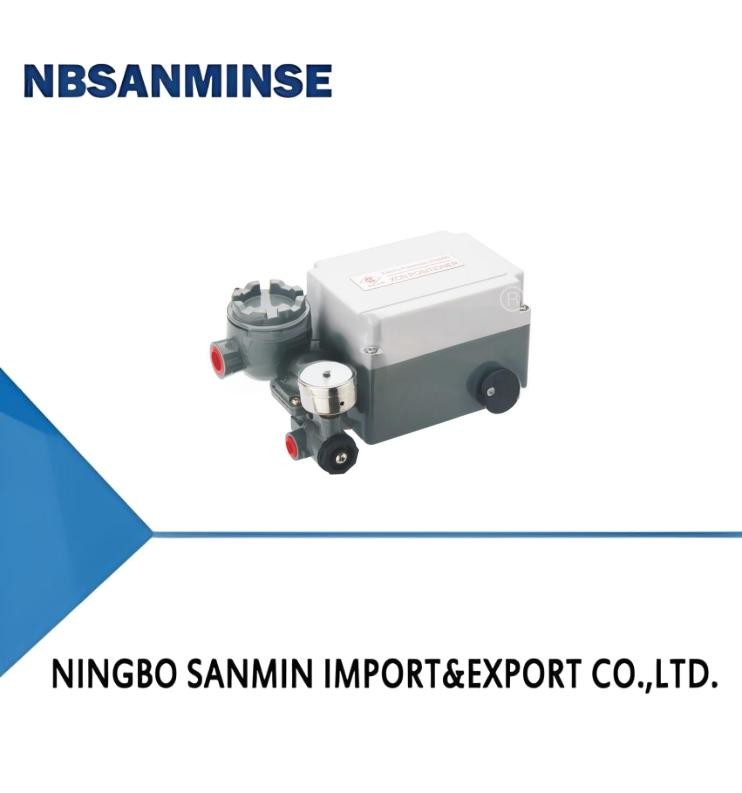

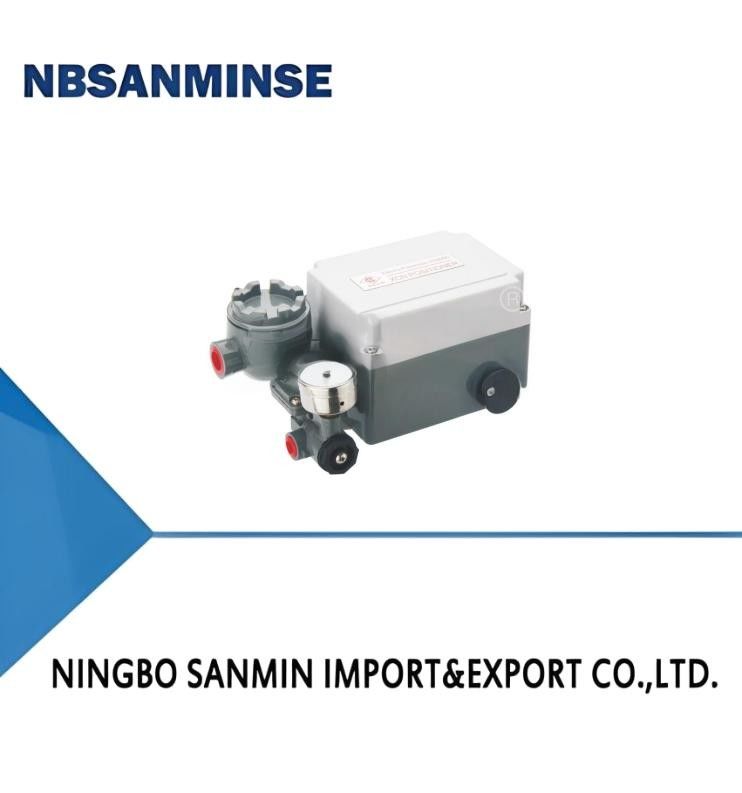

C6000 Sanmin Series electricity - gas valve locator

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	C6000

Detail Information
Actuator Move Ment:	L Linear	Mode Of Action:	S Single-action
Explosion-proof Grade:	M Ex Dmb ⅡBT 6 Gb M Ex Dmb ⅡBT 6 Gb M Ex IaⅡCT6 Gb M Non Explosion-proof	Feedback Form:	1Line Type: 10-30mm 2Linear Type: 20-40mm 3Linear Type: 30-60mm
Pilot Valve Exhaust Hole:	1Actuator Volume Is Less Than 90cm³ 2Actuator Volume 90 To 180 Cm ³ 3Actuator Volume Is Greater Than 180cm³	Options:	0Not Have No 1+PTM 2+ L / S (Built-in Limit Switch) 3+PTM+L/S(Built-in Valve Position Feedback And Limit Switch)

Product Description

C6000 Series electricity - gas valve locator

1. No resonance phenomenon within the range of 5-200Hz.

2. Simple don't have replacement parts can be 1/2 operation within scope of the process control.

3. Zero adjustment and range adjustment is very simple.

4. Positive action and reaction.

5. Feedback pole connection very simple.

6. Fast response and accurate.

7. Little air consumption,the economy is good.

8. On the small actuators can also use the guide valve orifice to prevent vibration phenomenon.

First, Product Overview
Electric valve positioner XC66000 is a kind of in the controller or control system for 4 - 20 mA current signal, and sending air to pneumatic actuators to control the valve opening device.

Model	Actuator move ment	Mode of action	Explosion-proof grade	Feedback form	Pilot valve exhaust hole	Options
C6000	L Linear	S Single-action	M Ex dmb ⅡBT 6 Gb	1Line type: 10-30mm	1Actuator volume is less than 90cm³	0Not have No
			M Ex dmb ⅡBT 6 Gb	2Linear type: 20-40mm	2Actuator volume 90 to 180 cm ³	1+PTM
			M Ex iaⅡCT6 Gb	3Linear type: 30-60mm	3Actuator volume is greater than 180cm³	2+ L / S (Built-in limit switch)
			M Non explosion-proof			3+PTM+L/S(Built-in valve position feedback and limit switch)
