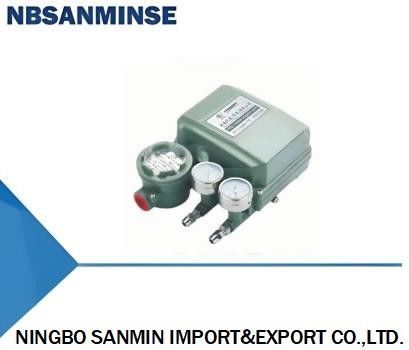

ZPD series electrical and gas valve locator
|
 |
QZD2000 The function of the electric-gas converter is to convert the electrical signal output by the regulator into a gas signal.
ZPD2000 Series electric-gas valve positioning and the valve use, the regulator output electrical signal, into the drive valve gas signal, can overcome the packing function and valve stem friction and medium pressure difference of the valve core imbalance force, improve the valve action speed, so as to ensure that the regulator according to the regulator correct output signal positioning.
|
| Intrinsic error |
+1%(Single acting);+1.5%(Double acting) |
| Hysteresis error |
1%(Single acting):1.5%(Double actin |
| Dead band |
0.4% (Single acting);0.8% (Double acting) |
| Rated travel |
0-(10-100)mm;0-(50--75°-90°)Angular travel |
| Air pressure |
0.14-0.55MPa |
| Input signal |
4-20mA.DC:0-10mA.DC(Separable process) |
| Output pressure |
0.02-0.5MPa |
| Air connection |
Single acting type: 450L/h(Gas supply 0.14MPa) Double acting type: 3600L/h(Gas supply 0.55MPa) |
| Output characteristic |
Linear, Equal percentage |
| Environment temperature |
-35~+60'℃ -20~+60'℃(Intrinsic safety type) |
| Relative humidity |
10%~90% |
| Input impedance |
4-20mA.DC 300+100(20'cTime)0-10mA.DC 1000+300(20℃C时) |
| Air supply connection |
M10x1,p6 Connect the brass |
| Power interface |
NPT1/2(M22x1.5) |
| Housing material |
Aluminum alloy |
| Overall dimensions |
203×160×105mm |
| Weight |
2.8Kg |
| Model |
Action type |
Input signal |
Output pressure |
Ex.enclosure |
|
QZD2
|
1 Single acting |
1 4~20mAD.C |
1 0.02-0.1MPa(or)0-0.5MPa(standard) |
D Explosion proof type |
| 2 Double acting |
2 A relay signals4-12;12-20mAD.C |
2 0.04-0.2MPa |
E Weather proof type |
|
3 0-10mA.DC |
3 0.08-0.2MPa |
I Ex ia ⅡCT6 GB Intrinsically safe explosion proof type |
|
4 A relay signals0-5;5-10mA.DC |
|
|
