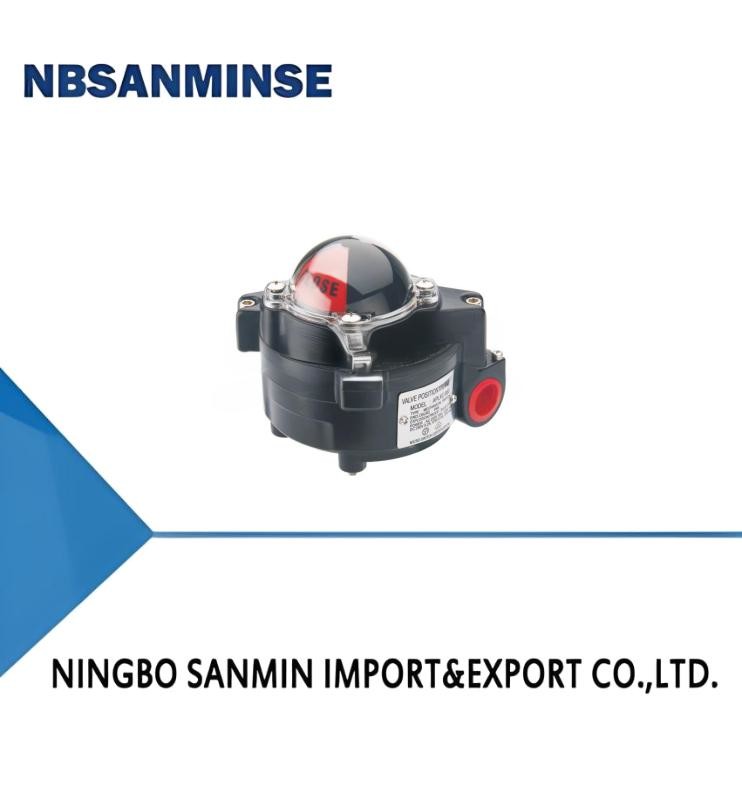

Limit switch APLXC860(XCN860) Sanmin Series

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	APLXC860 (or) 510

Detail Information
Model:	APLXC860 (or) 510	Project Form:	APLXC8601 APLXC8602
Switch Forms:	(Mechanical )x 2 (Induction)x2	Switch Level:	AC:250V 16A,125V16A DC:250V 0.2A 125V 04A,30V 4A 12~24V DC (action Pressure Test: 10-30VDC)
Temperature:	-20°C~60%C	Material:	Die Casting Aluminum
Weight:	1.5Kg(3.3Lb)	Protection Grade:	Weather Proof, IP67/NEMA4 & 4X
Explosion-proof Grade:	Ex DⅡCT6 Gb	Electrical Interface:	NPT3/4(G3/4,PF3/4)

Product Description

Limit switch APLXC860(XCN860) Sanmin Series 0

Limit switch APLXC860(XCN860) Sanmin Series 1

Limit switchAPLXC860(XCN860)Series

1.With a large dome indicator.

2.Switch the CAM is with a spring fixed, so don't use other tools can be convenient to adjust the position of the CAM.

3.Junction box contains 8standard terminal.

4.The terminal has a solenoid valve terminals.

5.With two 3/4" power interface,can be convenient wiring according to the site condition.

6.Easy to change the direction of dome indicator transparent window.

7.Can be made with any basis with lSO5211 cylinder form a complete set.
