AP Automatic Drainer
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | QFH111 QFH211 QFH212 QFH213 QFH221 QFH222 QFH223 QFH241 QFH261 |
|
Detail Information |
|||
| Air Pressure (MPA): | 0.3~0.7 0.4~0.7 0.5~1.0 0.7~1.0 | Maximum Output Pressure(MPA): | 0.16 0.25 0.4 0.6 |
|---|---|---|---|
| Maximum Output Flow(M/H): | 3 12 40 3 12 40 3 | To Take Over The Internal Thread: | 1/4(M10×1) G1/2 G3/4 1/4(M10×1) G1/2 G3/4 1/4(M10×1) |
Product Description

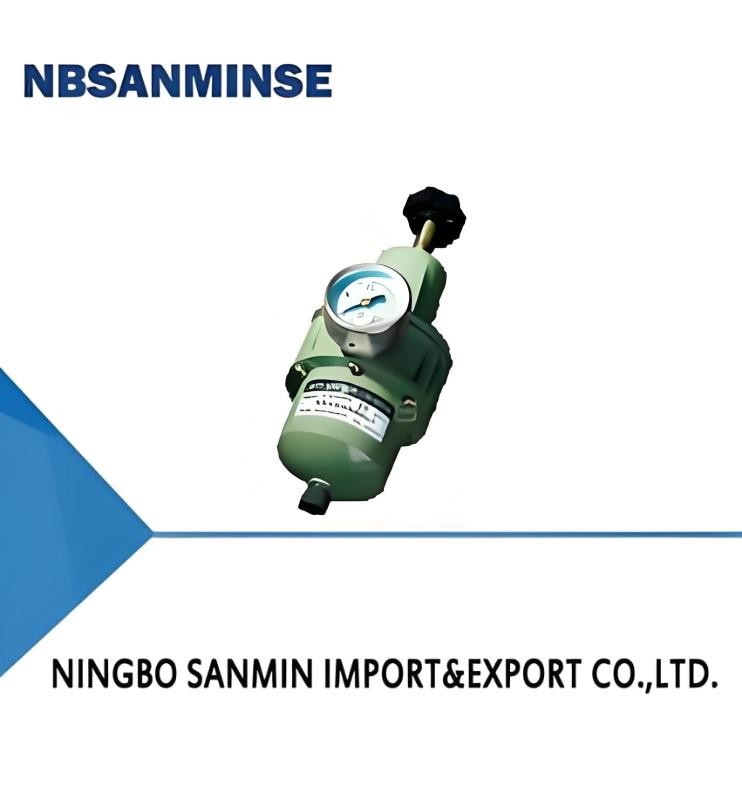

| QFH series air filtration pressure reducer |
|
1.When the input pressure and flow rate fluctuation, can keep a stable output pressure, 2.Light weight, small size, easy installation and maintenance, 3.Can filter 5 micron particles;. 4.If the output pressure is higher than the set, then the atmosphere to maintain the stable of output pressure. |
| First, Product Overview QFH air filtration pressure reducer of 0.3 - 1 M Pa from air compressor, air pressure, passing by after filtration, adjustable from 0 - 0.16; 0 - 0.25; 0 - 0.4; 0 - 0.6 M Pa range any lose the pressure value, maintain the stability of the auxiliary components. |
| Model | QFH111 | QFH211 | QFH212 | QFH213 | QFH221 | QFH222 | QFH223 | QFH241 | QFH261 |
| Air pressure (MPA) | 0.3~0.7 | 0.4~0.7 | 0.5~1.0 | 0.7~1.0 | |||||
| Maximum output pressure(MPA) | 0.16 | 0.25 | 0.4 | 0.6 | |||||
| Maximum output flow(M/H) | 3 | 12 | 40 | 3 | 12 | 40 | 3 | ||
| To take over the internal thread | 1/4(M10×1) | G1/2 | G3/4 | 1/4(M10×1) | G1/2 | G3/4 | 1/4(M10×1) | ||
