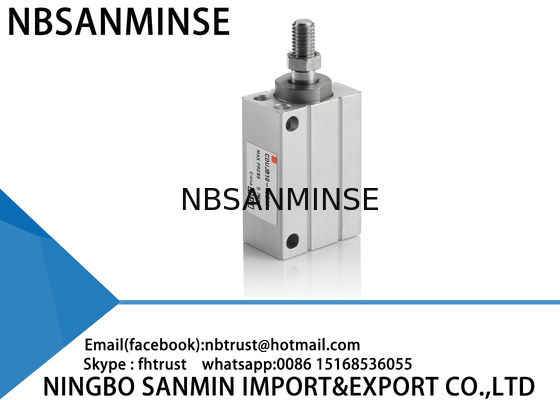

CUJ Mini Free Mount SMC Pneumatic Cylinder Environmentally Friendly
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
9: Technical support via ina@pneuhydr.com
Specifications
| Bore size (mm) | 4 | 6 | 8 | 10 | |
| Action | Double acting; Single acting, spring return | ||||
| Fluid | Air | ||||
| Proof pressure | 1.05MPa | ||||
| Minimum operating pressure | Double acting | 0.15MPa | 0.1MPa | ||
| Single acting, spring return | 0.35MPa | 0.3MPa | 0.2MPa | ||
| Maximum operating pressure | 0.7MPa | ||||
| Ambient and fluid temperature |
Without auto switch:-10 to 70℃(No freezing) |
||||
| Cushion | None | ||||
| Lubrication | Non-lube | ||||
| Piston speed | 50 to 500 mm/s | ||||
| Stroke length tolerance |
+0.5 |
||||
| Mounting | Through-hole | ||||
Theoretical Output: Double Acting
Unit:N
|
Bore size |
Rod size |
Operating |
Piston area |
Operating pressure (MPa) | ||
| 0.3 | 0.5 | 0.7 | ||||
| 4 | 2 | OUT | 12.6 | 3.76 | 6.28 | 8.79 |
| IN | 9.4 | 2.82 | 4.71 | 6.59 | ||
| 6 | 4 | OUT | 28.3 | 8.48 | 14.13 | 19.79 |
| IN | 15.7 | 4.71 | 7.85 | 10.99 | ||
| 8 | 5 | OUT | 50.3 | 15.07 | 25.13 | 35.18 |
| IN | 30.6 | 9.18 | 15.31 | 21.44 | ||
| 10 | 6 | OUT | 78.5 | 23.56 | 39.26 | 54.97 |
| IN | 50.3 | 15.07 | 25.13 |
35.18 |
||
Spring Reaction Force:Single Acting,Spring Return
Unit:N
|
Bore size |
Spring |
Stroke (mm) | |||
| 4 | 6 | 8 | 10 | ||
| 4 | Pre-loaded | 1.70 | 1.27 | - | - |
| Loaded | 2.55 | 2.55 | - | - | |
| 6 | Pre-loaded | 2.45 | 2.01 | 1.57 | - |
| Loaded | 3.33 | 3.33 | 3.33 | - | |
| 8 | Pre-loaded | 4.67 | 3.76 | 2.86 | 1.96 |
| Loaded | 6.47 | 6.47 | 6.47 | 6.47 | |
| 10 | Pre-loaded | 5.04 | 4.18 | 3.31 | 2.45 |
| Loaded | 6.77 | 6.77 | 6.77 | 6.77 | |
