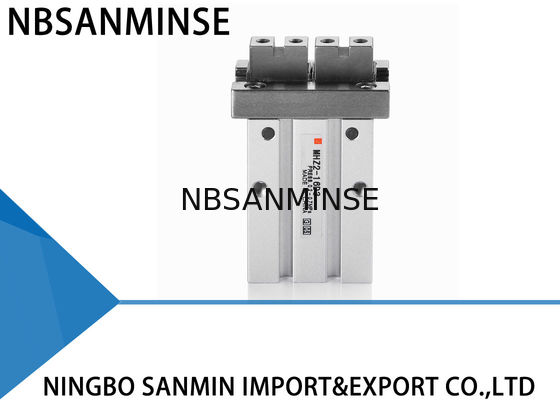

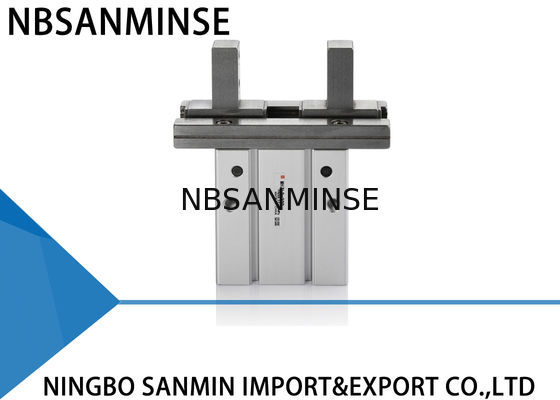

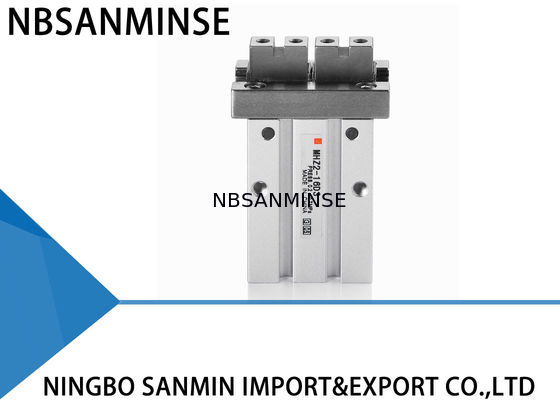

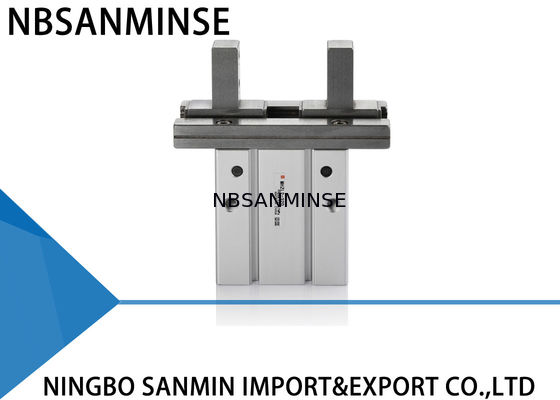

Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series

Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series
Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series

Large Image :  Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series

Product Details:
Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: MHZ2
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS

Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series

Description
Fluid: Air Action: Double Acting / Single Acting
Temperature: - 10 To 60 ℃ Lubrication: Not Required
Broze Size: 10 , 16 , 20 , 25 Auto Switch: Nil Without Auto Switch ( Built - In Magnet )
Highlight:

smc locking cylinder

,

guided pneumatic cylinder

Finger Cylinder SMC Electric Gripper Double / Single Acting MHZ2 Series






Specifications



Fluid Air
Operating Pressure Double Acting

Φ 6 : 0 . 15 to 0 . 7 MPa

Φ 10 : 0 . 2 to 0 . 7 MPa

Φ 16 to Φ 40 : 0 . 1 to 0 . 7 MPa



Single Acting Normally Open

Φ 6 : 0 . 15 to 0 . 7 MPa

Φ 10 : 0 . 2 to 0 . 7 MPa

Φ 16 to Φ 40 : 0 . 1 to 0 . 7 MPa



Normally Closed
Ambient and fluid temperature - 10 to 60 ℃
Repeatability

Φ 6 to Φ 25 ± 0 . 01 mm

Φ 32 , Φ 40 ± 0 . 02mm

Max . operating frequency

Φ 6 to Φ 25 : 180 c . p . m .

Φ 32 , Φ 40 : 60 c . p . m .

Lubrication Not required
Action Double Acting / Single Acting
Auto switch ( option ) Note) Solid state auto switch ( 3 – wire , 2 – wire)



Note ) Refer to pages 807 to 856 for further information on auto switches .

* Use the gripper with dust cover when sued in a place where there may be dust .




Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Reliable quality assured and active after-sell service
5: One year quality guarantee




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
