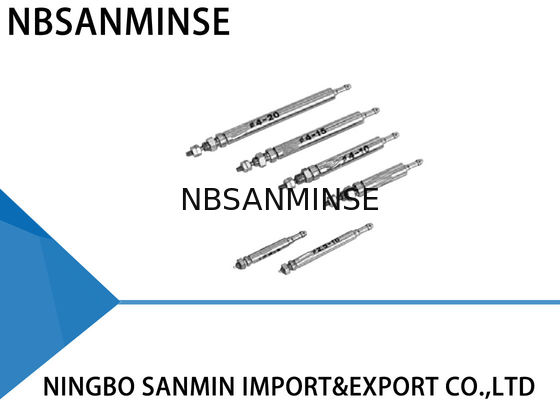

CJ1 SMC Pneumatic Air Cylinder Single Acting Spring Return Non - Lube Pin

Product Details:
Place of Origin: China
Certification: ISO9001
Model Number: CJ1
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation

Detail Information

Action: Single Acting , Spring Return Fluid: Air
Proof Pressure: 1.05 MPa Piston Speed: 50 To 500 Mm / S
Cushion: None Mounting: Basic Style
High Light:

smc locking cylinder


guided pneumatic cylinder

Product Description

CJ1 Air Cylinder Single Acting Spring Return Not Required ( Non - lube ) Pin Pneumatic Cylinder



Component Parts


Description Material Note
Rod Cover Brass Electroless nickel plated
Cylinder Tube Brass Electroless nickel plated
Piston Rod Stainless Steel
Spring Stainless Steel Wire
Piston Seal NBR
Mounting Nut Brass Black zinc chromate
Rod end Nut Steel Zinc chromated





Action Single acting , Spring Return
Fluid Air
Proof pressure 1.05MPa
Maximum operating pressure 0.7MPa
Minimum operating pressure 0.3MPa
Ambient and fluid temperature - 10 to 70 ℃ ( No Freezing )
Piston speed 50 to 500 mm/s
Cushion None
Stroke length tolerance



Mounting Basic Style
Lubrication Not Required ( Non – lube )


Model / Bore Size / Standard Stroke


Model Bore Size (mm ) Standard Stroke (mm )
CJ1B2 2.5 5 , 10
CJ1B4 4

5 , 10 , 15 , 20


Applicable Tubing


Tubing Type Material Size Model no.
O . D Bore Size
Metric Size Polyurethane 4mm 2.5mm TU0425
Soft nylon 4mm 2.5mm TS0425






1 .Do not use it in such a way that a load could be applied to the piston rod during the retraction .

The Spring that is built into the cylinder provides only enough force to retract the piston rod . Thus , if a load is applied , the piston rod will not be able to retract to the end of the stroke .

2 .Do not install it by directly grasping the cylinder tube , as this could cause a tube to deform and malfunction .




Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .


Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .


Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Reliable quality assured and active after-sell service
5: Sample order & small quantity order is acceptable .
