Single Acting Pneumatic Air Cylinder Spring Return Series Pin SMC Locking Cylinder

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: CJP

Detail Information

Bore Size: 4 , 6 , 10 , 15mm Action: Single Acting , Spring Return
Lubrication: Not Required ( Non - Lube ) Piston Speed: 50 To 500 Mm/s
Cushion: None Rod End Style: With Thread / Without Thread
High Light:

smc air cylinders


guided pneumatic cylinder

Product Description

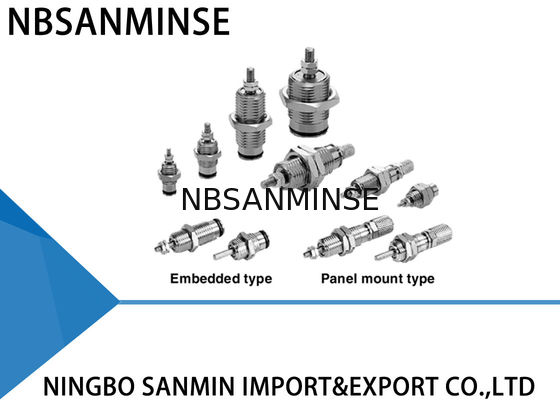

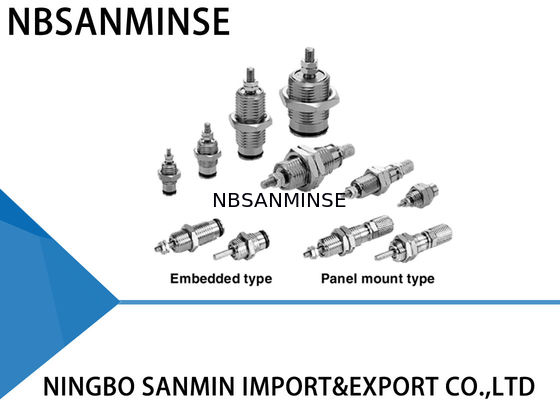

CJP Pneumatic Cylinder Single Acting Spring Return Series Pin Cylinder SMC Similar Cylinder





Action Single Acting , Spring Return
Maximum operating pressure 0.7MPa
Minimum operating pressure φ4 0.3MPa
φ6 0.2MPa
φ10 , 15 0.15MPa
Proof Pressure 1MPa
Ambient and fluid temperature - 10 to 70 ℃ ( No freezing )
Lubrication Not required ( No – lube )
Piston Speed 50 to 500 mm/s
Cushion None
Stroke length tolerance



Rod end style With thread / Without thread
Mounting Panel mount type Embedded type


( Standard equipment )

Standard Equipment

Mounting nut ( 2 )

Rod end nut ( 2 )

Mounting nut ( 1 )

Gasket ( 1 )

Rod end nut ( 2 )

Option Hose nipple (Except φ4) -


How to Order



B : Panel mount type

S : Embedded type


Bore size

4 : 4mm

6 : 6mm

10 : 10mm

15 : 15mm


Cylinder standard stroke ( mm )

φ 4 , φ 6 , φ 10 , φ 15 : 5 , 10 , 15


Rod end thread

Nil : With thread

B : Without Thread


Component Parts


Description Material Note
Cover Brass Electroless nickel plated
Piston Stainless Steel
Collar Oil –impregnated sintered alloy φ4 Brass + Electroless nickel plated
φ6 ,φ10 Bronze
Return Spring Steel wire Zinc Chromated
Piston Seal NBR
Gasket NBR Special product ( O-ring ) embedded type only
Mounting Nut Brass Electroless nickel plated
Rod end nut Steel Zinc chromated





Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .


Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable

5: Reliable quality assured and active after-sell service
6: One year quality guarantee
