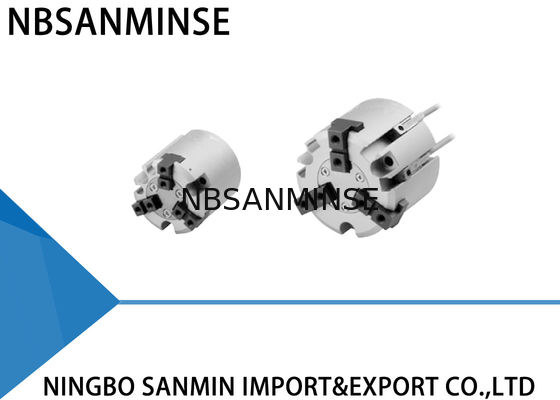

MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01
MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01
Contact Now

MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: MHS3

Detail Information
Bore Size: 16 - 125 Mm Fluid: Air
Temperature: - 10 To 60 ℃ Repeatability: ± 0 . 01
Lubrication: Not Required Action: Double Acting
High Light:

smc locking cylinder

,

guided pneumatic cylinder

Product Description

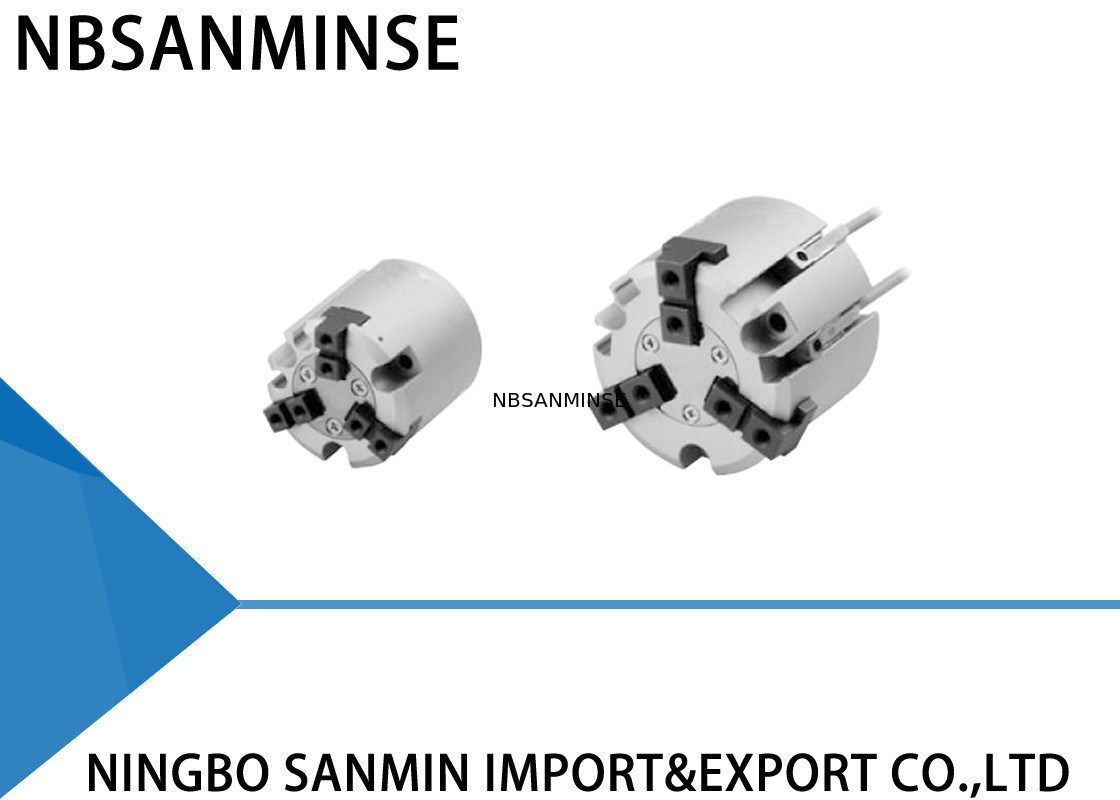

MHS3 Series Parallel Type Air Gripper / 3 - Finger Type φ 16 - φ 125 Similar SMC Type





Models / Specifications



Model : MHS3-16D , MHS3-20D , MHS3-25D , MHS3-32D , MHS3-40D , MHS3-50D , MHS3-63D , MHS3-80D , MHS3-100D , MHS3-125D



Bore Size : 16 , 20 , 25 , 32 , 40 , 50 , 63 , 80 , 100 , 125



Fluid : Air



Operating pressure (MPa) : 0 . 2 to 0 . 6 , 0 . 1 to 0 . 6



Ambient and fluid temperature ( ℃ ) : - 10 ro 60 ℃



Repeatability ( mm ) : ± 0 . 01



Max .Operating frequency (c.p.m.): 120 , 60 , 30



Lubrication : Not required



Action : Double acting



Component Parts



Description Material Note
Body Aluminum alloy Hard anodized
Piston Aluminum alloy Hard anodized
Cam Carbon steel Heat treated , Specially treated
Finger Carbon steel Heat treated , Specially treated
Cap Aluminum alloy Hard anodized
End Plate Stainless steel
Piston Bolt Stainless steel
Magnet -
Type C snap ring Carbon steel Phosphate coated
Piston seal NBR
Rod seal NBR
Gasket NBR
Gasket NBR
Cross recessed flat head screw Carbon steel Zinc chromated



 MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01 0MHS3 Series Parallel Type Pneumatic Air Cylinder Gripper φ16 - φ125 Similar SMC Type Repeatability ± 0.01 1
