|Place of Origin:||NINGBO|
|Model Number:||Z3 2 / 2 Way Large Diameter|
|Minimum Order Quantity:||1 Pc|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Closed|
|Temperature:||- 0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Cast Brass|
|Pressure:||0 - 10kgf / Cm ²||Port Size:||3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "|

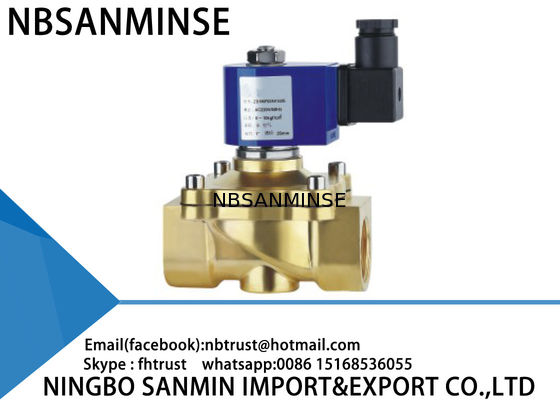

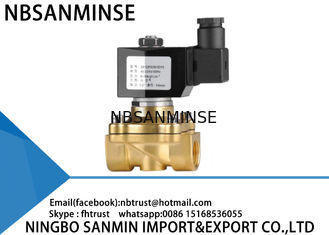

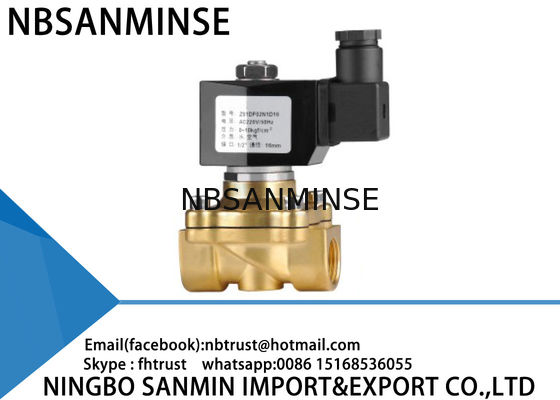

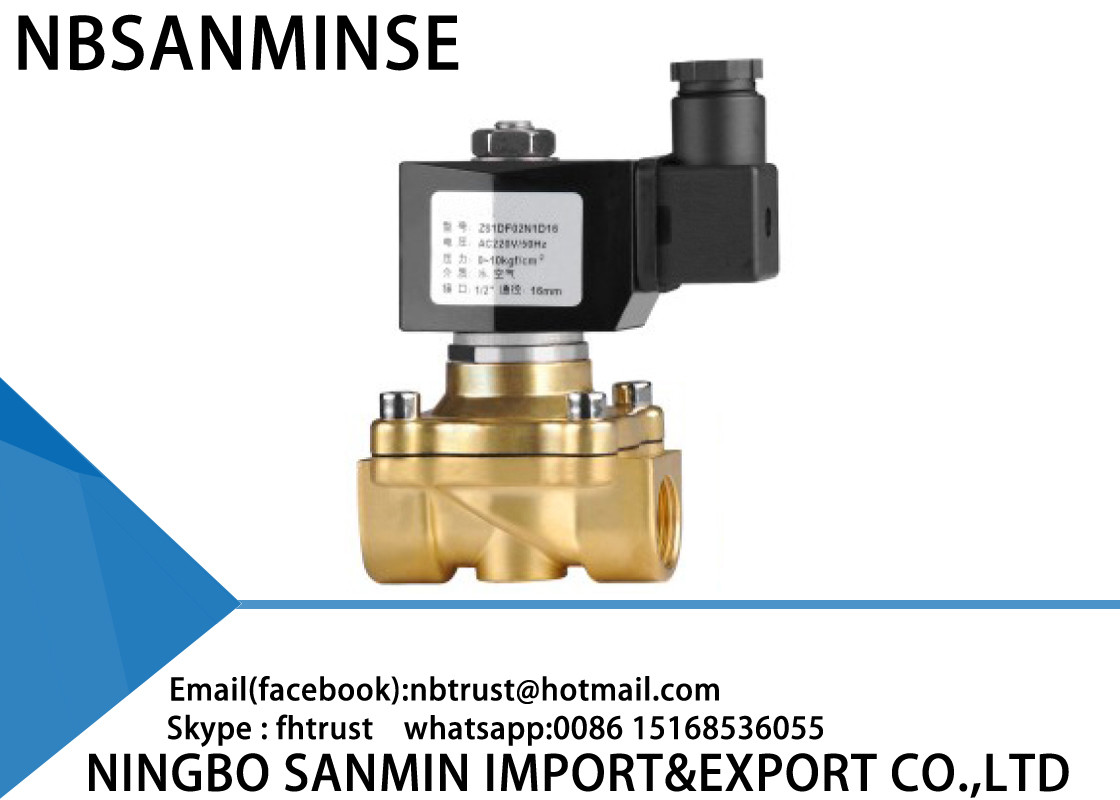

Large Diameter Brass Solenoid Valve , Explosion Proof Solenoid Valve 2 Way
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall
be indicated .
3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
6 . Power supply current and power consumption should be selected according to the output
capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
1: 2- Way normally closed solenoid valve , Closed when de - energized , open when enerized .
2: Serialized products , small in size , large flow rate , widely usd .
3: Body material : forged brass . cast brass ( for orifice Φ 32 , 40, 50 only ) .
4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp : 0 ℃ ~ 120 ℃ .
5: Flow as the arrow , mounts in any position ; Best position is Solenoid vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC ; Voltage Tolerance : + 10 % to - 10 % applicable voltage
7: Coil van fix Germany Nass Coil , for orifice under Φ 16 ~ 25mm only .
8: This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off control of various fluids
9: Coil can fix SM Coil below DN25 . AC 220V / AC110V / AC24V / DC24V
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee
6: Large stock for fast shipping .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .
Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days . If you need emergency products , we can speed up the production of the first arrangement .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Our products are high quality with 12 month guarantee ,and support paypal payment.
