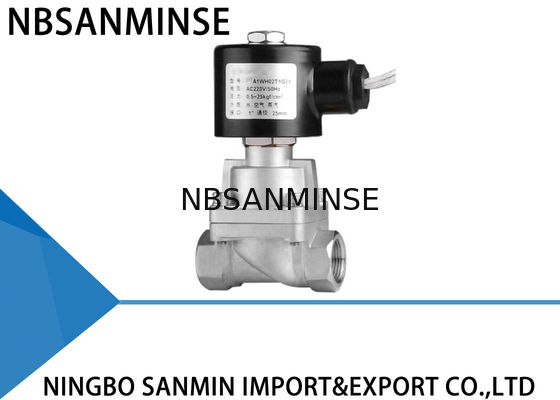

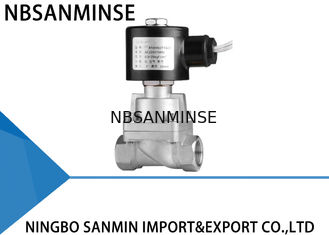

High Flow A2 SS Solenoid Valve , Magnetic Solenoid Valve NBSANMINSE Brand

High Flow A2 SS Solenoid Valve , Magnetic Solenoid Valve NBSANMINSE Brand

High Flow A2 SS Solenoid Valve , Magnetic Solenoid Valve NBSANMINSE Brand

Product Details:

Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: A2 Pilot Operated Piston

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
Temperature: 0 ℃ ~ 65 ℃ Connection: Thread , Flange ( DN 25 - 50 )
Action: Pilot Operated Piston Body: Stainless Steel 304 / 316
Pressure: 0 . 5 ~ 15 Kgf / Cm ² Port Size: 3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "

High Flow A2 SS Solenoid Valve , Magnetic Solenoid Valve NBSANMINSE Brand







Applicability



1 . The pipeline fluid must same as solenoid valve marked medium .

2 . Fluid temperature must be less than the marked temperature .

3 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .

4 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .

5 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness



Reliability


Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .



Security


1. General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

2. Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .



Economy


There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products



Details



1: 2 Way normally closed solenoid valve ; Closed when de - energized , open when energized .

2: Body material : 304 stainless steel ( standard ) , 316 stainless steel ( special made )

3: Max. Allowable pressure 40kgf / cm  ; Ambient Temp . 0 ℃ ~ 65 ℃ (F CLASS) , 0 ℃ ~ 80 ℃ (H CLASS)

4: Serialized products , small in size , large flow rate , widely use .

5: Flow as the arrow , mounts in any position ; Best position is Solenoid vertical and upright direction .

6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC  50 / 60 HZ 24VDC / 12VDC ;

VOLTAGE TOLERANCE : + 10 % to -10 % applicable voltage .

7: Coil can fix Germany NASS Coil , Standard storage : 220VAC / 230VAC / 240VAC   50 / 60HZ  24VDC

8: This series valves are offered PTFE for Seals to provide on - off control of various fluids .




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.




Why choose us


1: Various style for each products and completely series pneumatic products .

2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .

5: Reliable quality assured and active after-sell service
6: One year quality guarantee
