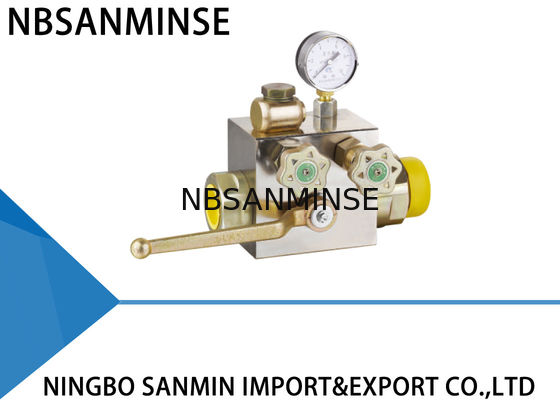

AQF Small Hydraulic Solenoid Valve , High Safety Ball Valve For Accumulator
| Model |
Nominal Flow ( L / min ) |
Connection Size ( mm ) |
( L ) Matching accumulator |
| Safety Valve |
Ball Valve |
d |
D1 |
| AQF – L25H ※ - A |
40 |
100 |
M42 × 2 or M27 × 2 |
M33 × 2 |
1 . 6 ~ 10 |
| AQF – LS5H ※ - A |
| AQF – LW5H ※ - A |
| AQF – L32H ※ - A |
63 |
160 |
M60 × 2 or M42 × 2 |
M42 × 2 |
10 ~ 100 |
| AQF – LSH ※ - A |
| AQF – LW2H ※ - A |
| AQF – L40 ※ – A |
100 |
250 |
M72 × 2 or M60 × 2 |
M48 × 2 |
| AQF – LS40 ※ - A |
| AQF – LW40 ※ - A |
The safety ball valve is mainly used as accessory of hydraulic - bladder accumulator for the purpose of safety ,l flow cutoff and load relief . A safety valve may maintain the set value of pressure in the system . When the pressure exvceeds the set value , the safety valve will open to avoid overload of the system . It is especially indispensable to the accumulator in an enclosed system in preventing damage to the system in the event of sudden increase of external load .
Features : Compact design , high safety and convenient operation
Hydraulic Accumulator Safety ball valve
L : Straight through threaded connection
LS : Right angle
LW : Three Way
Nominal diameter : 25 , 32 , 40mm
Nominal pressure : H1 - 10MPa , H2 - 20MPa , H3 - 31 . 5MPa
Type of structure : Straight Through
Why choose us
1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
