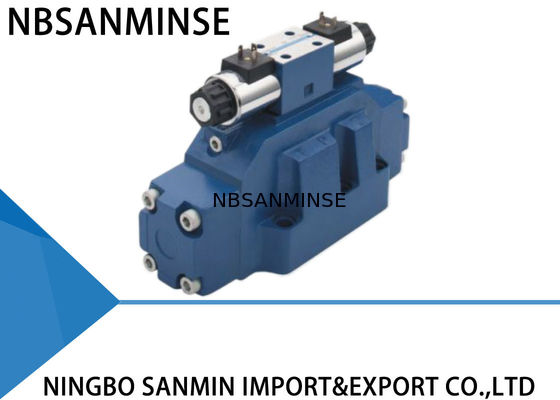

FWH Hydraulic Solenoid Valve 24VDC 110VAC 220VAC For Mineral Oil / Phosphate Ester
Electro - Hydraulic directional control valve is a control valve which can use the pressure of the hydraulic circuit to pull the spool and change the hydraulic oil direction .
Electro - Hydraulic directional control valve is the conbination of the electrical operated directional control valve and the hydraulic operated directional control valve . It uses the electrical operated directional control valve to control the hydraulic operated directional control valve , and change the hydraulic oil direction .
Electro - Hydraulic directional control valve and hydraulic operated directional control valve are sued mostly in hydraulic systems when electrical operated dieretional control valve can not afford the flow . It may control the movement of the power elements , or control the direction of the flowing oil .
Technical specification
| Specification |
03 |
04 |
06 |
| Model |
FWH - 03 |
HFWH - 03 |
FWH - 04 |
HFWH - 04 |
FWH - 06 |
HFWH - 06 |
|
Max .
Working ( MPA )
pressure
|
P . A . B Port |
28 |
35 |
28 |
35 |
28 |
35 |
| T Port ( internal leakage of control oil ) |
10 |
10 |
10 |
| Y port ( external leakage of control oil ) |
10 |
10 |
10 |
| Minimum control pressure ( MPa ) |
1 . 0 Spring – Return
Three – Way valve two – way valve
|
1 . 2 Spring – Return Three – way valve two – way valve |
1 . 3 Spring – Return Three – way valve two – way valve |
| Maximum control pressure ( MPa ) |
To 25 |
| Max . Flow |
160 |
300 |
650 |
| Working fluid |
Mineral oil ; phosphate - ester |
| Fluid temp |
- 20 ~ 70 |
| Viscosity ( mm ² / s ) |
2 . 8 ~ 380 |
| Weight |
Single – head solenoid |
6 . 4 |
8 . 5 |
17 . 6 |
| Double – head solenoids |
6 . 8 |
8 . 9 |
18 |
| FH Valve |
4 |
7 . 3 |
16 . 5 |
| Adjustor of reversing time |
0 . 8 |
| Pressure reducing valve |
0 . 5 |
| Cleanliness |
The maximum allowable cleanliness of the oil should be according to 9th degree of Standard NAS1638 . It is suggested that the minimum filter rating should be β 10 ≥ 75 |
Why choose us
1: Various style for each products and completely series pneumatic products .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: One year quality guarantee
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
