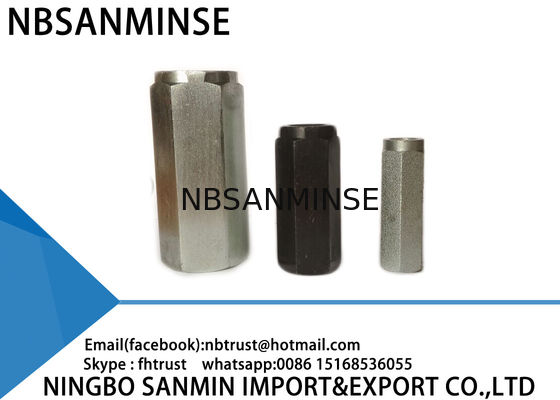

VU Type Straight Inline Hydraulic Check Valve , Hydraulic One Way Check Valve

Large Image : VU Type Straight Inline Hydraulic Check Valve , Hydraulic One Way Check Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	VU

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Boxes
Delivery Time:	5-30 days
Payment Terms:	T/T,L/C
Supply Ability:	10000PCS

Contact Now

VU Type Straight Inline Hydraulic Check Valve , Hydraulic One Way Check Valve

Description

Size:

1 / 2 " , 3 / 4 , 1 " , 1 1 / 4 " , 1 1 / 2 " , 2"

Nominal Diameter:

08 , 10 , 12 , 16 , 20 , 25 , 30 , 40

Thread Type:

G , NPT,M

Pressure:

500 , 400 , 350 , 250

Highlight:

hydraulic pressure control valve

electronic hydraulic control valve

VU Type Straight Inline Hydraulic Check Valve , Hydraulic One Way Check Valve

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
9: Technical support via ina@pneuhydr.com

Bore	Model	Max. flux (L/min)	Burst Pressure (BAR)	PN (bar)	Size
Bore	Model	Max. flux (L/min)	Burst Pressure (BAR)	PN (bar)	L	E	S	D	T	M(G or NPT)
08	VU-08***	30	±0.4/0.7	500	62	21.5	19	19	12	1/4”
10	VU-10***	45	±0.4/0.7	500	68	27.5	24	24	14	3/8”
12	VU-12***	70	±0.4/0.7	500	77	34.5	30	30	15	1/2”
16	VU-16***	110	±0.4/0.7	400	88	41.5	36	36	16	3/4”
20	VU-20***	160	±0.4/0.7	350	105	47	41	41	18	1”
25	VU-25***	210	±0.4/0.7	350	130	63	55	55	20	1^1/4"
30	VU-30***	320	±0.4/0.7	350	138	75	65	65	22	1^1/2"
40	VU-40***	460	±0.4/0.7	250	160	92	80	80	24	2”

VU Type Straight Inline Hydraulic Check Valve , Hydraulic One Way Check Valve 0

Our products are high quality with 12 month guarantee ,and support paypal payment.
