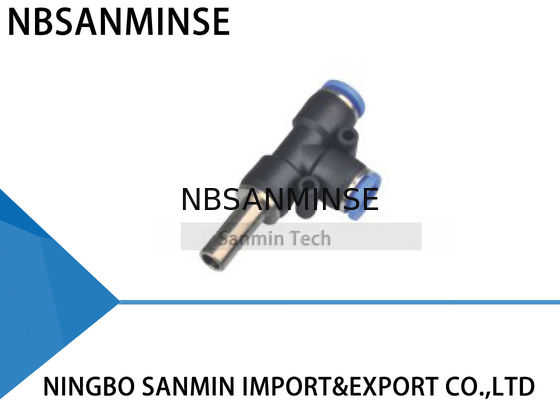

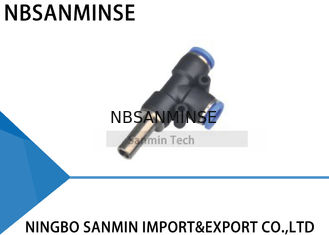

PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin

PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin
PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin

Large Image :  PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PDJ
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin

Description
Fluid: Air , Vacuum Operating Pressure: 0 ~ 1.0MPa
Negative Pressure: -100KPa (10Torr) Max PresOperating Temperaturesure: 1.5 MPa
Operating Temperature: 5 ~ 60 ℃ Application Tube: Polyurethane And Nylon
Highlight:

ss pneumatic fittings

,

stainless steel air line fittings

PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin




Specification


1 Brass with good nice nickel plated.
2 BSPT thread (British Standard Taper Pipe Thread).
3 Each and every pcs was tested at 10kgs/cm2.
4 Thread with PTFE coating which can seal directly without any other seal material.


1.One – Touch tube fittings are used in pneumatics piping
2.The tube fittings come in a wide variety of models to meet all your needs in pneumatics piping
3.Even after installation , the direction of the tube can be changed freely
4.Nickel – Plated metal body ensures Anti – Corrosion and Anti – Contarmination
5.All R and NPT Threads are Pre – Coated sealant .
6.All cylindrical threads are standard with O-Ring Seals


Fluid
Air , Vacuum
Operating Pressure
0-1.0MPa
Negative Pressure
-100KPa (10Torr)
Max Pressure
1.5MPa
Operating Temperature
5 ~ 60 ℃
Applicable Tube
Polyurethane and Nylon


Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .

5: Customize according to your special request .

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials

PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin 0PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin 1PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin 2PDJ Pneumatic Hose Connector Branch Run Tee Push In One-Touch Air Quick Fittings High Quality Sanmin 3

Rotating elbow: allow the air pipe to rotate after connection to increase flexibility.
Quick fixed joint: push-on connection is adopted,

but locking mechanism is provided to ensure safe and reliable connection.
Industrial pneumatic connector: used for pneumatic pipeline connection in industrial automation,

mechanical manufacturing and other fields.
Electronic cooling joint: refers to the water circuit connection used for the cooling system

 of electronic equipment. Such joint usually needs to comply with specific standards, such as VDA standards.


Tag:

stainless steel air line fittings,

stainless steel air hose fittings,

ss pneumatic fittings
