Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: 4HV
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000PCS

Hand Switching Valve Drawing Valve Air Valve Pneumatic Mechanical Valve G Thread 1/8 1/4 3/8 1/2 3/4

Description
Port Size: G1/8" , G1/4" , G3/8" , G1/2" , G3/4" Media Temp: Normal Temperature
Pressure: Low Pressure Structure: Mechanical
Material: Aluminum Working Pressure: 1.0 MPa
Highlight:

pneumatic directional control valve

,

pneumatic electric valve

,

Hand Switching Pneumatic Solenoid Valve

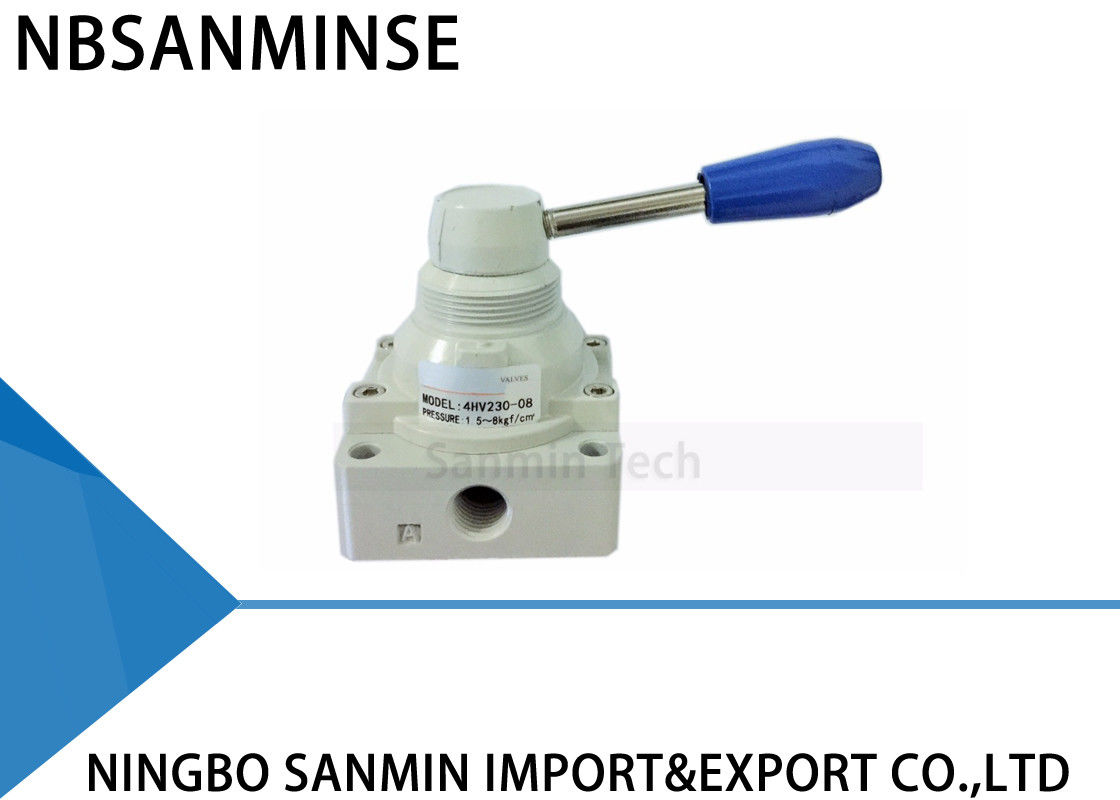

NBSANMINSE 4HV Hand Switching Valve Drawing Valve Air Valve 90 Working Angle G Thread 1/8 1/4 3/8 1/2 3/4


Specification :
4HV Hand Switching Valve


Series :
2 : 2Series
3 : 3Series
4 : 4Series


Position Number :
10 : 4/2 Way
30 : 4/3 Way


Middle Position :
C : Mid-position Closed
E: Mid-position Exhausted
P: Mid-position Pressed


Port Size :
06: G 1/8”
08: G 1/4”
10: G 3/8”
15: G 1/2”
20: G 3/4”


Seal Form :
Blank: NBR
Ceramic: TC


Nut :
Blank: Without nut
S: With nut

Model : 4HV2-06 ,4HV2-08 ,4HV3-08, 4HV3-10 ,4HV4-15 ,4HV4-20
Working : Medium 40 Micron Filtered Air
Port Size : G 1/8”, G 1/4” ,G 1/4” ,G 3/8”, G 1/2”, G 3/4”
Working Pressure : 1.0 MPa
Max. Test Pressure : 1.2 MPa
Max. Ambient Temperature : -5~+60 ℃
Working Angle : 90

FAQ


Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspectionQ: Could you offer the free samples ?

A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
