Carbon Steel Hydraulic Accumulator Direct Acting Overflow Valve Absorb Vibration

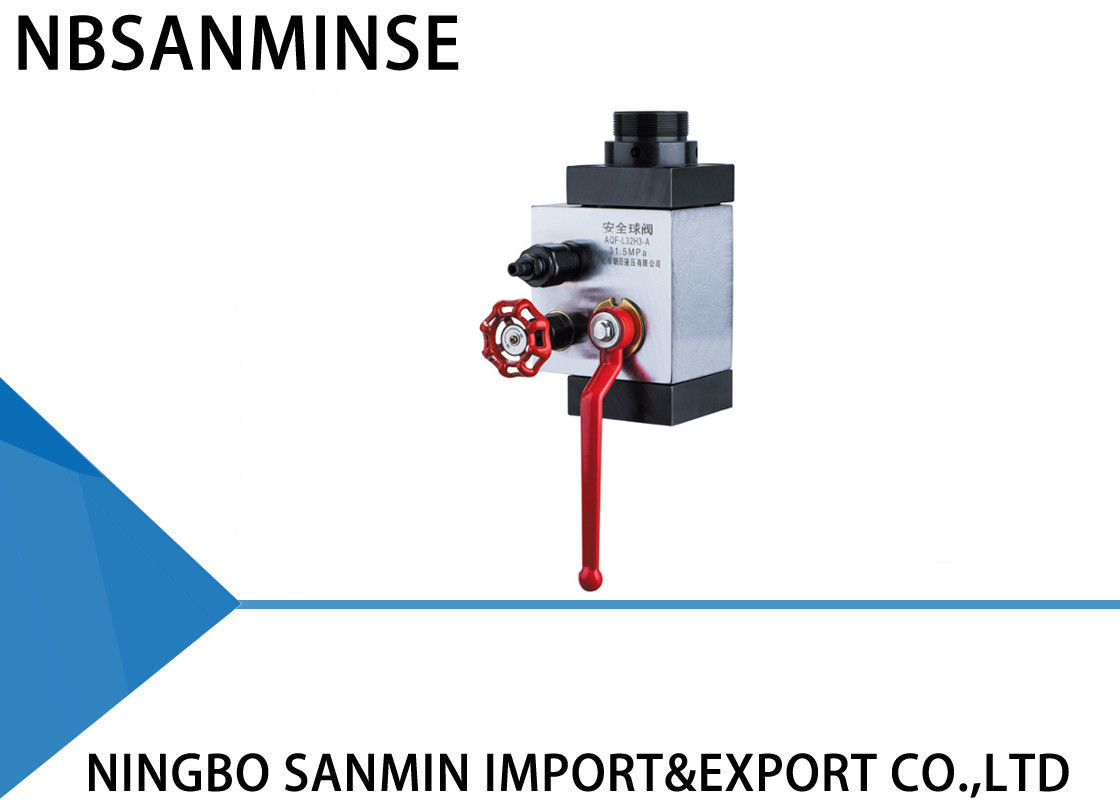

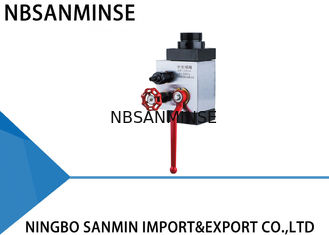

AQF safety ball valve direct acting overflow valve for accumulator

Applications:

1. Store energy

2. Absorption (elimination) the pulsation

3. Absorb (mitigate) the impact

4. Compensate for leakage

5. Compensation volume

6. Absorb vibration

7. Balancing effect

8. Fluid separator

custom supported

General

AQF safety ball valve for accumulator . which consists of stopping valve . protection valve , unloading valve and so on . Sets between accumulator and hydraulic system to control the oil condition of open and break , overflow and unloading .

Code Name : Safety ball valve

Connection type L – Through , LS – Right Angle , LW – Tri – Channel ,

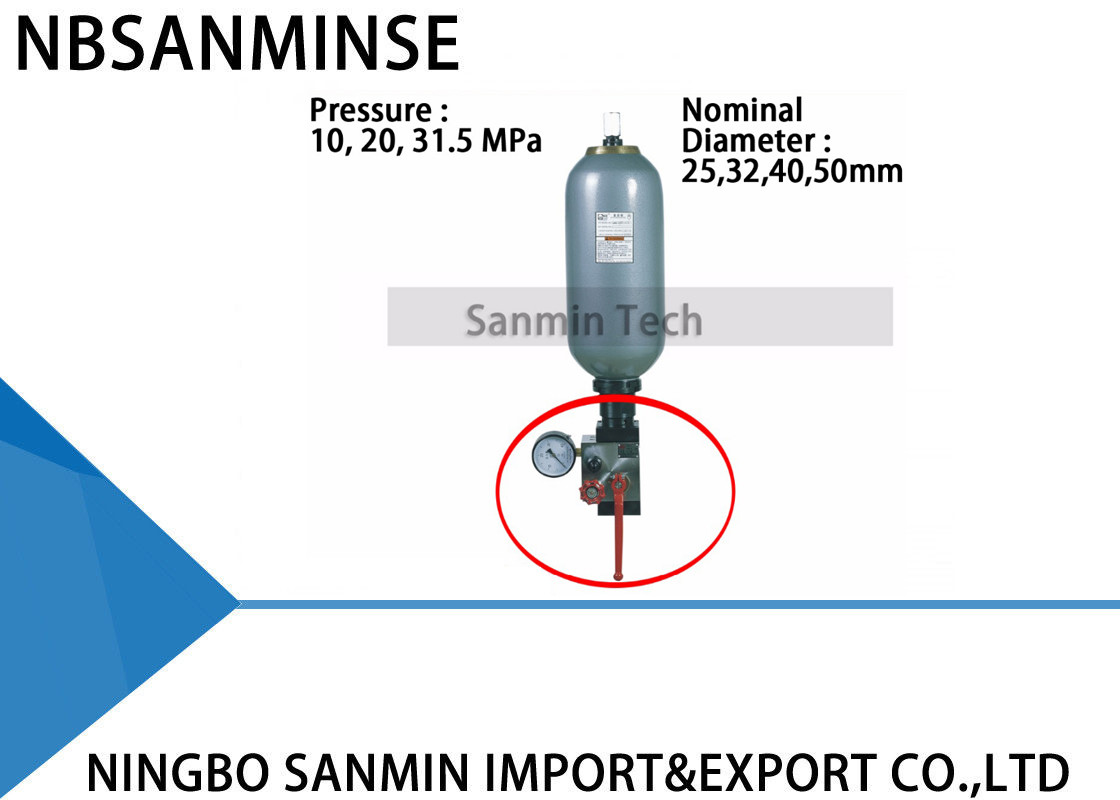

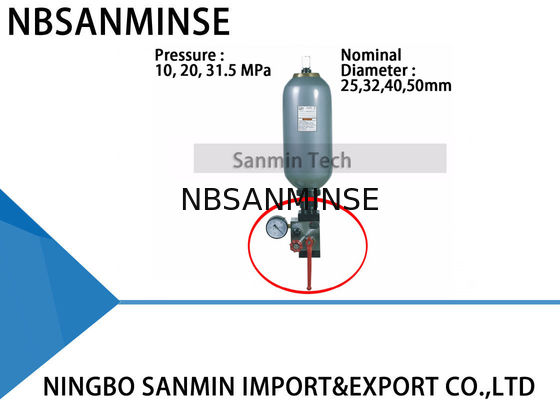

Nominal Diameter : 25 , 32 , 40 , 50 mm

Pressure : H1 – 10MPa , H2 – 20MPa , H3 – 31.5MPa

Structure : A – Direct overflow Valve

Connector : M27 X 2 , M60 X 2 , M72 X 2

Adapter

Making use of adapter to enlarge the usage range of safety valve . For example : accumulator of 100L can be equipped with small – diameter safety valve to solve the problem of big accumulator conn – ecting to small caliber ; or vice versa . At the same , it also solve the exchange problem between import accumulator and national accumulator.

Why choose us

1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .

5: Reliable quality assured and active after-sell service
6: One year quality guarantee

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
