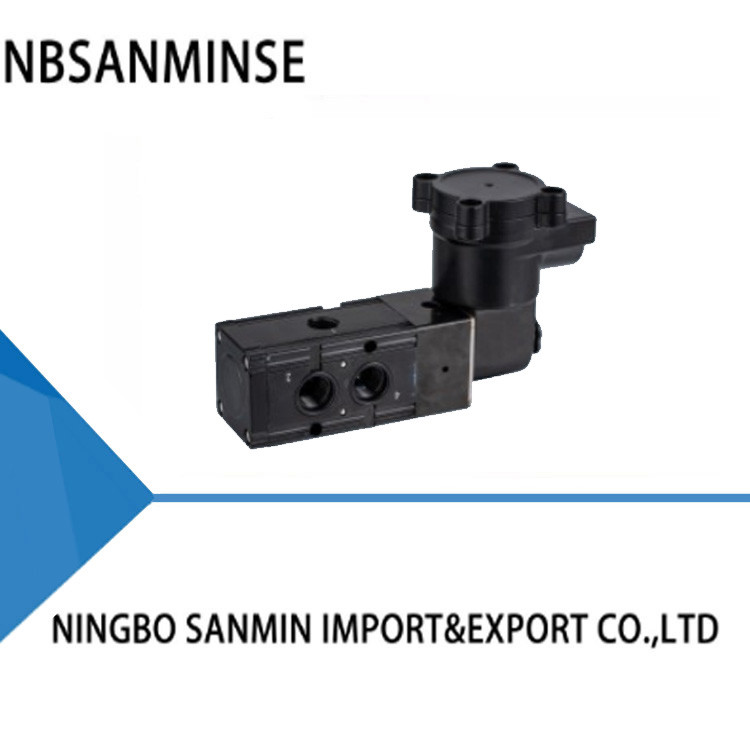

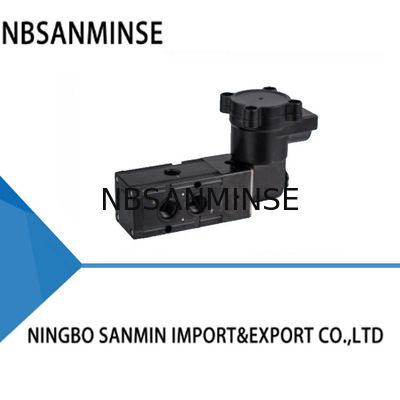

Split Body Explosion Proof Solenoid Valve 70°C HNBR Seal 0.15-0.8Mpa CT6 Aluminum Profile

Split Body Explosion Proof Solenoid Valve 70°C HNBR Seal 0.15-0.8Mpa CT6 Aluminum Profile
Split Body Explosion Proof Solenoid Valve 70°C HNBR Seal 0.15-0.8Mpa CT6 Aluminum Profile

Large Image :  Split Body Explosion Proof Solenoid Valve 70°C HNBR Seal 0.15-0.8Mpa CT6 Aluminum Profile

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: 510M-08-GB
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Split Body Explosion Proof Solenoid Valve 70°C HNBR Seal 0.15-0.8Mpa CT6 Aluminum Profile

Description
Pressure: 0.15-0.8Mpa Temp: - 20°C~ 70°C
Power: DC24V 3.6W Seal: HNBR
Explosion-proof: CT6+ Dust Explosion-proof Mode Of Action: Pilot Type
Flameproof Head: Cast Aluminum Body: Aluminum Profile
Power: 3.0W Cable Interface: NPT1/2
Air Source Interface: G1/4
Highlight:

Aluminum Profile Pneumatic Solenoid Valve

,

Split Body Explosion Proof Solenoid Valve

,

HNBR Seal Explosion Proof Solenoid Valve

Pressure:0.15-0.8Mpa
Temp:- 20°C~ 70°C
power:DC24V 3.5W
Seal:HNBR

Explosion-proof class :CT6+ Dust explosion-proof
Mode of action: pilot type
Flameproof head: cast aluminum
Body: aluminum profile
Power: 3.0W
Cable interface: NPT1/2
Air source interface: G1/4
The function of the flameproof valve is to safely control and guide the fluid in the hazardous area containing explosive gas or dust. Its main function is to "contain the explosion" and prevent it from escaping and causing harm to the external environment. Through special design and sealing technology, the explosion-proof valve can ensure that it can be restricted within the valve housing even if there is explosion inside, so as to ensure safe operation in flammable and explosive areas.
Functions and characteristics of the explosion-proof valve:
Prevention of explosion diffusion: its core function is to "contain the explosion", that is, when an explosion occurs inside the valve, the flame and pressure of the explosion can be limited inside the special shell and not spread to the outside, so as to ensure the safety of personnel and equipment.
Suitable for hazardous areas: designed for working in hazardous areas (ATEX areas, etc.) where explosive substances (e.g. flammable gases, dust) are present.
High Safety Standard: Explosion-proof valves are often certified to meet Safety Integrity Level (SIL) requirements, and have a variety of international and regional certification, such as ATEX, IECEx, UL, etc., proving their reliability and safety.
Special structure design: the valve body and connection parts are designed with special materials and structures to effectively withstand the impact of explosion, such as using high-temperature and corrosion-resistant materials and specially designed seals.
Application in severe environment: it is applicable to chemical industry, oil refining, power generation and other high-risk industries to ensure the safe control of fluid in these environments.
