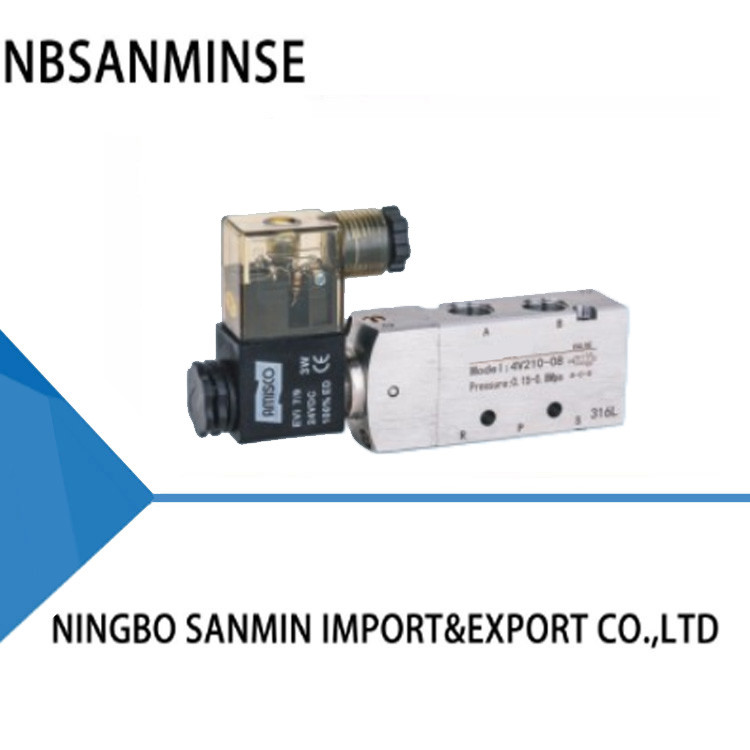

SANMIN All Stainless Steel Plate Type Single Electric Control valve 0.2-1.0Mpa 120°C spool valve spacer type

Pressure:0.2-1.0Mpa
Temp:- 20°C~ 120°C
Seal:NBR+PUR
Body material: stainless steel 316
Design: slide valve sleeve type

The stainless steel solenoid valve is used as the actuator of the industrial process automation control system to control the on-off and flow regulation of the fluid (liquid or gas) in the pipeline by receiving electrical signals. Compared with ordinary solenoid valve, it has excellent corrosion resistance, durability and high temperature/high pressure adaptability. It is suitable for drinking water, food treatment, pharmaceutical and chemical industries and other harsh or high purity media fields.
Core role:
Automatic control: automatically open or close after receiving electrical signal to realize automatic control of pipeline fluid without manual operation.
Medium adjustment: it can not only control the on-off of fluid, but also adjust its flow, speed and other parameters.
Fluid control: it can be used to control compressed air, water, diesel, chemicals and other media.
Advantage and application
High corrosion resistance: stainless steel allows safe handling of corrosive liquids, gases and ultra-clean media.
High reliability: good durability and high temperature resistance, suitable for harsh working environment.
Health and safety: applicable to drinking water, food, pharmaceuticals and other industries with high health requirements.
Wide application: It is used in textile, printing, chemical industry, machinery and other industrial production processes, as well as civil facilities such as air conditioners and bathrooms.
Operating mode
Normally closed type: it is closed when it is not electrified, and the valve is opened when it is electrified, so the medium flows.
Normally open type: open when not electrified, close the valve when electrified and cut off the medium.
