All Stainless Isolation Valve Double Coil Spool Valve Spacer Type C 5/2 Conversion 3/2

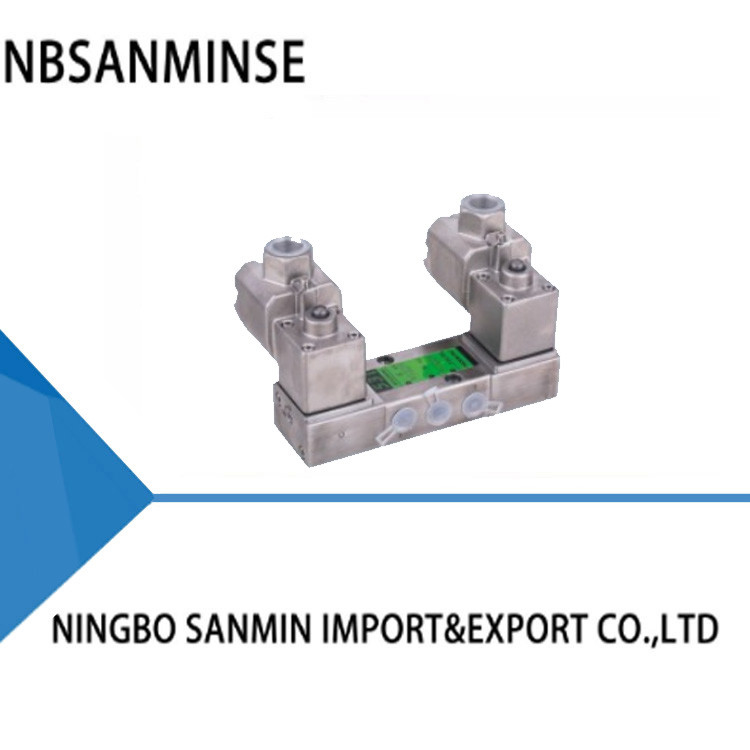

Large Image : All Stainless Isolation Valve Double Coil Spool Valve Spacer Type C 5/2 Conversion 3/2

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	V2532M-08GB

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

All Stainless Isolation Valve Double Coil Spool Valve Spacer Type C 5/2 Conversion 3/2

Description

Pressure:	0.2-1.0Mpa	Temp:	- 20°C~ 120°C
Explosion-proof:	Ex Db IIC T6,Ex Tb IIC T80°C Db	Seal:	NBR+PUR
Body Material:	Stainless Steel 316	Design:	Slide Valve Sleeve Type
Form:	5/2 Conversion 3/2	Port:	G1/4
Highlight:	Isolation Pneumatic Solenoid Valve , All Stainless Isolation Valve , Double Coil Spool Valve

Pressure:0.2-1.0Mpa
Temp:- 20°C~ 120°C
Explosion-proof mark: Exd II CT6GB Td A21 IP66 T80°C

Seal:NBR+PUR

Body material: stainless steel 316
Design: slide valve sleeve type

Form: 5/2 conversion 3/2

The function of the flameproof valve is to safely control and guide the fluid in the hazardous area containing explosive gas or dust. Its main function is to "contain the explosion" and prevent it from escaping and causing harm to the external environment. Through special design and sealing technology, the explosion-proof valve can ensure that it can be restricted within the valve housing even if there is explosion inside, so as to ensure safe operation in flammable and explosive areas.
Functions and characteristics of the explosion-proof valve:
Prevention of explosion diffusion: its core function is to "contain the explosion", that is, when an explosion occurs inside the valve, the flame and pressure of the explosion can be limited inside the special shell and not spread to the outside, so as to ensure the safety of personnel and equipment.
Suitable for hazardous areas: designed for working in hazardous areas (ATEX areas, etc.) where explosive substances (e.g. flammable gases, dust) are present.
High Safety Standard: Explosion-proof valves are often certified to meet Safety Integrity Level (SIL) requirements, and have a variety of international and regional certification, such as ATEX, IECEx, UL, etc., proving their reliability and safety.
Special structure design: the valve body and connection parts are designed with special materials and structures to effectively withstand the impact of explosion, such as using high-temperature and corrosion-resistant materials and specially designed seals.
Application in severe environment: it is applicable to chemical industry, oil refining, power generation and other high-risk industries to ensure the safe control of fluid in these environments.
