INPUT VOLTAGE AC220V 0.75KW-5.5KW
INPUT VOLTAGE AC380V 0.75KW-450KW

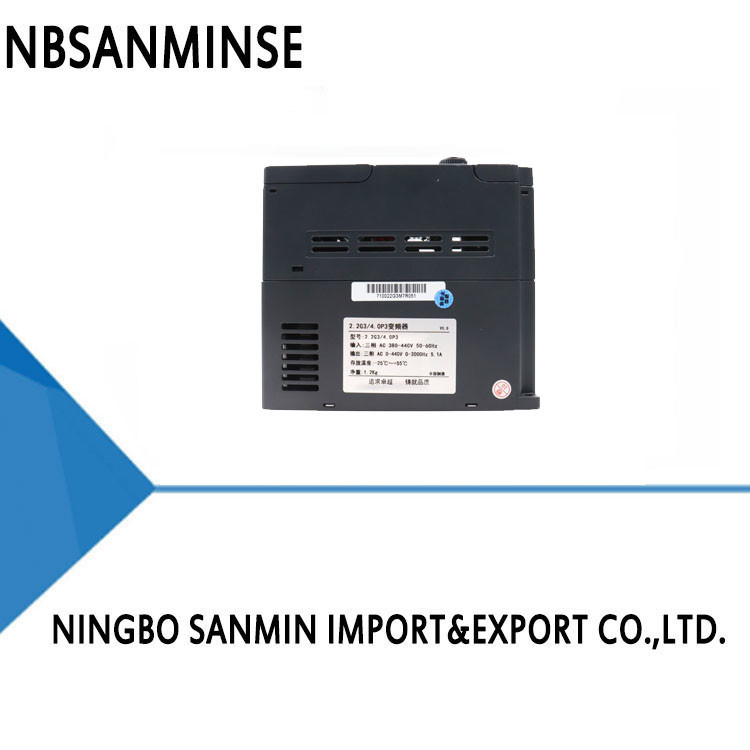

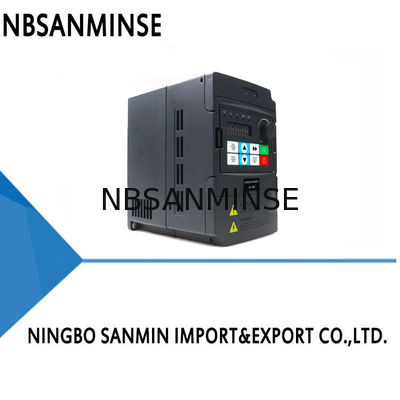

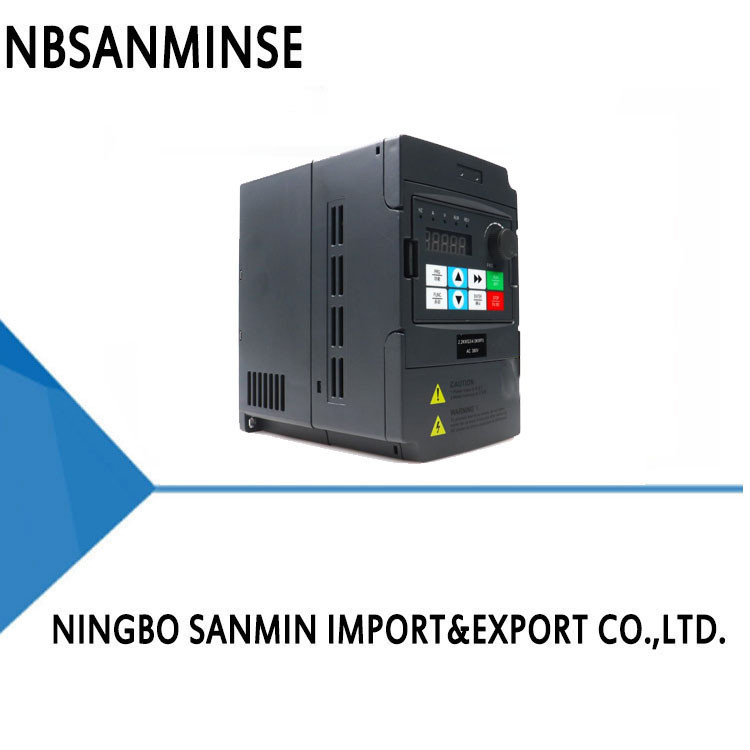

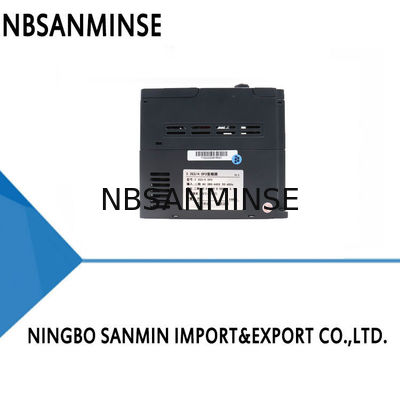

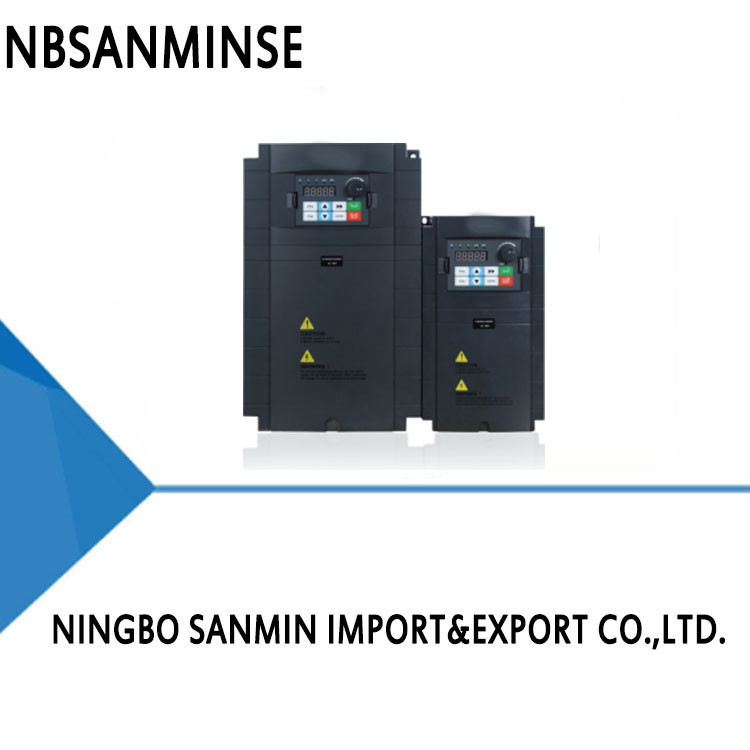

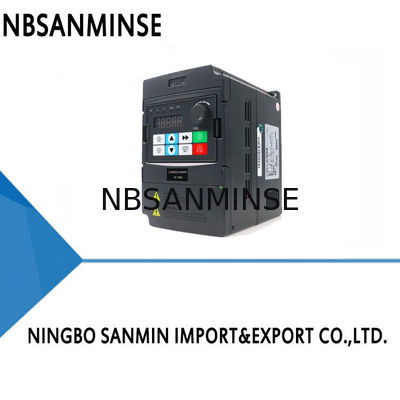

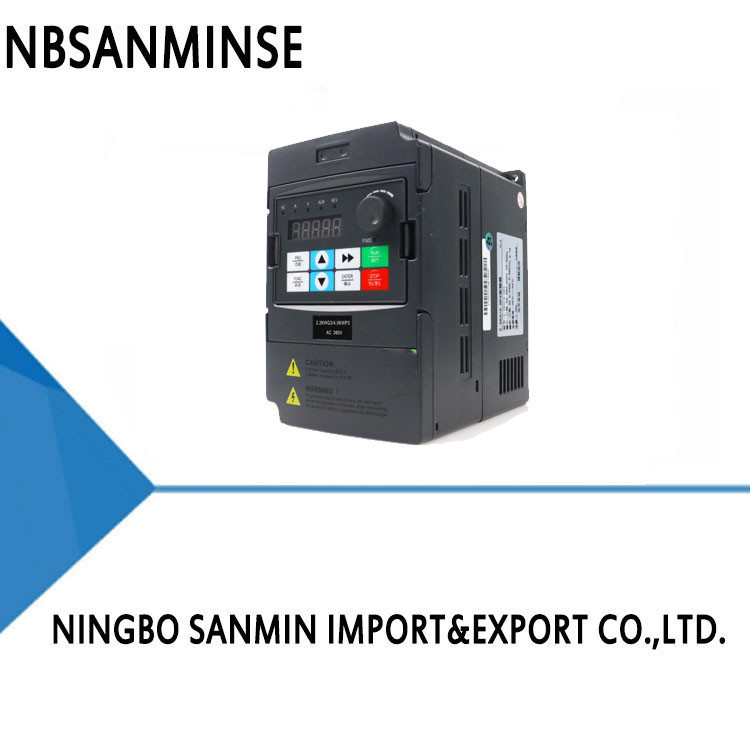

FL710 series inverter is a general purpose high performance current vector inverter, mainly used to control and adjust the speed of three-phase ac asynchronous motor. This series adopts high-performance vector control technology, low speed and high torque output, with good dynamic characteristics, super overload capacity, increased user programmable function and background monitoring software, communication bus function, support a variety of PG CARDS, the combination of functions rich and strong, stable performance.
Product Features
●Superior low frequency performance
Current vector control algorithm, realizing high starting torque and stable low speed torque output
●Wide voltage input
Wide voltage input, good response to the use of voltage instability
●Widely application
It integrates rich industrial application software functions to facilitate the realization of various on-site control requirements
●Built-in brake unit
Compact mechanism design, built-in brake unit (standard configuration below 18.5kw)
●RS485 communication
The whole series of products are configured with the standard RS485 serial communication interface and adopt the standard Modbus communication protocol
●Full protection
Comprehensive protection function, easy to deal with all kinds of load mutation and abnormal use environment
●High security
The whole series of products adopt high JCame retardant materials and high reliability main circuit connection to ensure the safety of product use
Product Information
|
Product
Model
|
Power
Adapter
|
Input
Voltage
|
Output Current |
Installation
Distance
|
Overall
Dimensions
|
Packing
Dimensions
|
Net Weight
|
Gross Weight |
| W*H |
L*W*T |
L*W*T |
| FL710 |
4KW |
220V-240V
50-60HZ
Single phase
220V-240V
50HZ-60HZ
380V-440V
50-60HZ
Three phase
380V-440V
50HZ-60HZ
|
17A |
128*228MM |
240*140*180MM |
302*185*235MM |
2.75KG |
3.2KG |
| FL710 |
5.5KW |
25A |
128*228MM |
240*140*180MM |
302*185*235MM |
2.85KG |
3.3KG |
| FL710 |
0.75KW |
2.1A |
88*140MM |
151*100*138MM |
215*142*183MM |
1.05KG |
1.3KG |
| FL710 |
1.5KW |
3.8A |
88*140MM |
151*100*138MM |
215*142*183MM |
1.05KG |
1.35KG |
| FL710 |
2.2KW |
5.1A |
88*140MM |
151*100*138MM |
215*142*183MM |
1.05KG |
1.35KG |
| FL710 |
4KW |
8.5A |
128*228MM |
240*140*180MM |
302*185*235MM |
2.75KG |
3.15KG |
| FL710 |
5.5KW |
13A |
128*228MM |
240*140*180MM |
302*185*235MM |
2.85KG |
3.25KG |
| FL710 |
7.5KW |
16A |
128*228MM |
240*140*180MM |
302*185*235MM |
2.9KG |
3.35KG |
| FL710 |
11KW |
24A |
128*228MM |
240*140*180MM |
302*185*235MM |
3.3KG |
3.45KG |
| FL710 |
15KW |
32A |
187*305MM |
323*205*205MM |
395*285*300MM |
5.6KG |
6.5KG |
| FL710 |
18.5KW |
36A |
187*305MM |
323*205*205MM |
395*285*300MM |
5.75KG |
6.65KG |
| FL710 |
22KW |
44A |
187*305MM |
323*205*205MM |
395*285*300MM |
5.85KG |
6.75KG |
| FL710 |
30KW |
58A |
235*443MM |
465*285*225MM |
560*385*335MM |
16.1KG |
17.6KG |
| FL710 |
37KW |
70A |
235*443MM |
465*285*225MM |
560*385*335MM |
16.3KG |
17.8KG |
| FL710 |
45KW |
90A |
235*482MM |
510*320*256MM |
605*425*355MM |
22.75KG |
24.6KG |
| FL710 |
55KW |
110A |
235*482MM |
510*320*256MM |
605*425*355MM |
23.05KG |
24.9KG |
| FL710 |
75KW |
152A |
240x626MM |
650*380*275MM |
765*480*321MM |
37KG |
40.1KG |
| FL710 |
90KW |
172A |
240*626MM |
650*380*275MM |
765*480*321MM |
37.75KG |
41.5KG |
| FL710 |
110KW |
205A |
240*626MM |
650*380*275MM |
765*480*321MM |
38.5KG |
42.25KG |
| FL710 |
132KW |
253A |
320*730MM |
750*495*325MM |
850*595*395MM |
59.5KG |
69.5KG |
| FL710 |
160KW |
304A |
320*730MM |
750*495*325MM |
850*595*395MM |
61.5KG |
71.3KG |
Installation Wiring
Terminal Function Description
|
Terminal
Name
|
Terminal
Use
|
Setting and Description
|
|
R
|
Inverter power supply:
The 380V model is connected toR,S and T;The 220V model is connected to R,S or R,T
|
Air switch shall be used as overcurrent protection device at the front end of inverter input power supply. If leakage protection switch is added, in order to prevent misoperation of leakage switch, please select equipment with sensitivity of more than 200mA and operation time of more than 100 ms
|
|
S
|
|
T
|
|
U,V,W
|
Inverter output, connected to the motor
|
In order to reduce leakage current, the motor connection line should not exceed 50 meters"
|
|
PE
|
grounding
|
The inverter should be well grounded
|
|
X1
|
The connection between X1/X2/X3/X- 4/X5/X6/X7 and COM is effective, and other functions are set by parameters F4.00~F4.06 respectively. X7 can be used as a common multi-function terminal, and can also be programmed as a high-speed pulse input port, as shown in
F4.06 function description
|
Input, 0-24v level signal, effective low level, 5mA
|
|
X2
|
|
X3
|
|
X4
|
|
X5
|
|
X6
|
|
X7
|
|
AI1
|
Receive current or voltage analog input
|
Input voltage range: 0-10v Input current range: 0-20ma
|
|
AI2
|
Only Receive current analog input
|
Input voltage range: 0-10v
|
|
AO1
|
Analog output signal 1
|
Output, 0-10v DC voltage
|
|
AO2
|
Analog output signal 2
|
Output, 0-10v DC voltage
|
|
24V
|
24V is the common power supply of digital signal input terminal"
|
Maximum output current 200mA
|
|
10V
|
10V is the common power supply for the analog input and output terminals
|
Maximum output current 20mA
|
|
COM
|
Signal common terminal
|
Internal isolated with GND
|
|
GND
|
Signal common terminal
|
Internal isolated with COM
|
|
AVI
|
0-10V Signal Input
|
0-10V Signal Input
|
|
TA
|
Programmable defined as multi-function relay output terminal, up to 99 kinds, see F5.02 terminal function introduction
|
TA-TB: normally closed, TA-TC: normally open Contact capacity: AC 250V/3A DC 24V/2A
|
|
TB
|
|
TC
|
Industry Application
FL710 series machine with its excellent performance and powerful function is widely used in the design of equipment speed regulation and automation requirements, such as textile, papermaking, drawing, machine tools, packaging, food, fan, water pump and other industries.
