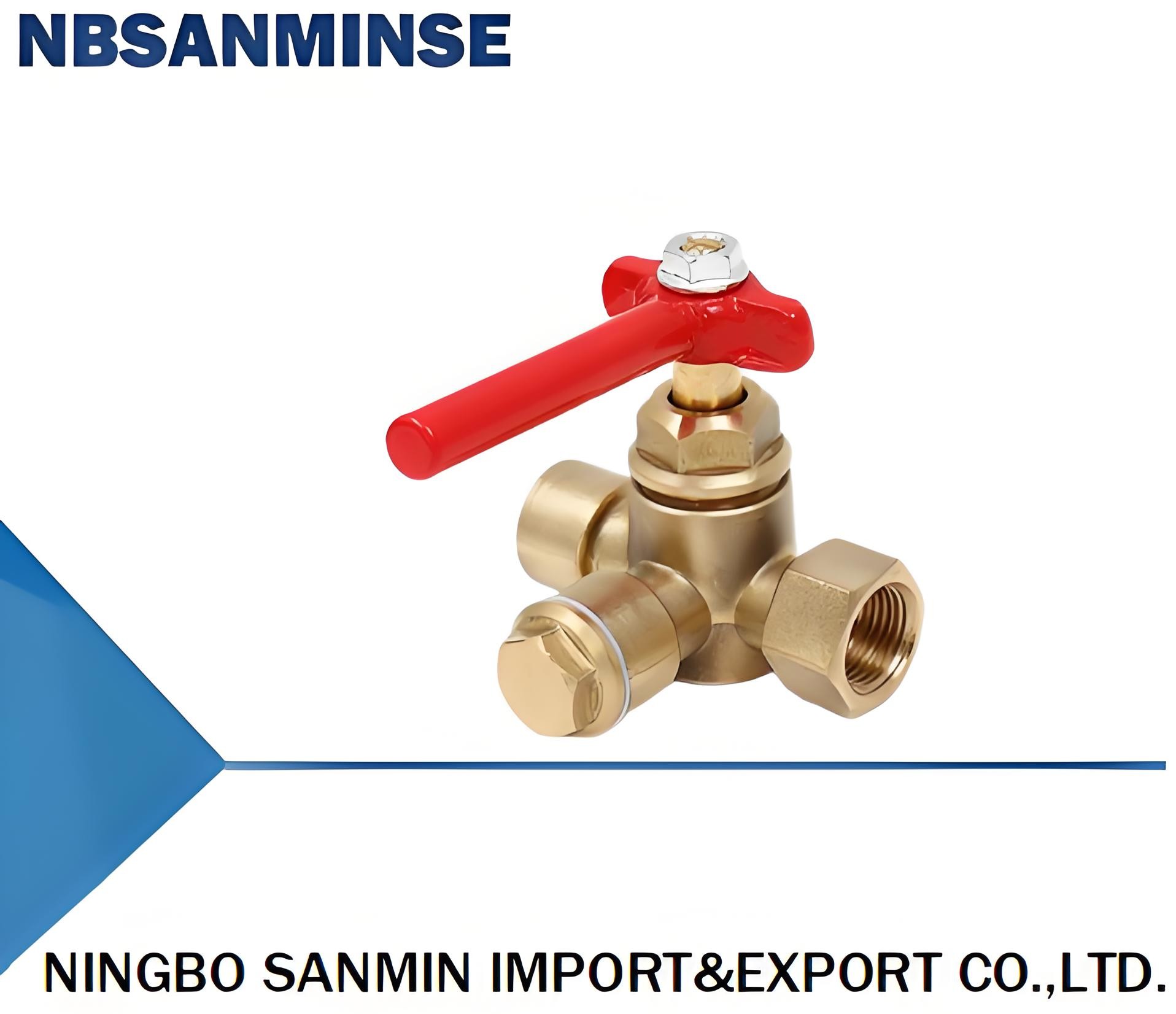

1 2 Inch 1.6Mpa Pressure Gauge Three Way Valve With Brass Body

Place of Origin: china Brand Name: NBSANMINSE
Model Number: 306

Detail Information

Code: 306 Thread G1: 1/2"
Pressure Gauge Thread G2: M20x1.5 Size(mm: L80 H68 R80
Nominal Pressure: 1.6Mpa Strength Test Pressure: 2.4Mpa
Seal Test Pressure: 1.6Mpa Operation Temperature: ≤150℃
Working Medium: Water, Steam, Oil Material: Brass
Highlight:

1.6Mpa Three-Way Valve

,

Pressure Gauge Three-Way Valve

,

1.6Mpa 1 2 brass solenoid valve

Product Description

The three-way valve of the 306 pressure gauge can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.

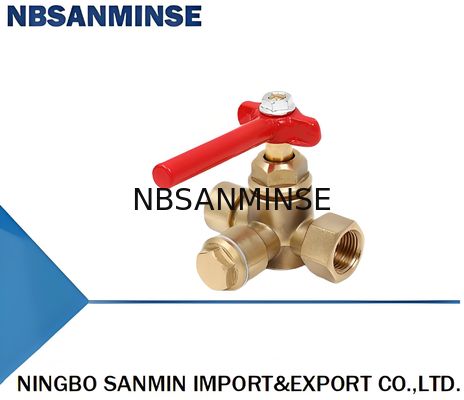

1 2 Inch 1.6Mpa Pressure Gauge Three Way Valve With Brass Body 0

code thread G1 Pressure gauge thread G2 size(mm)
      L H R
306 1/2" M20x1.5 80 68 80
Nominal pressure 1.6Mpa
strength test pressure 2.4Mpa
Seal test pressure 1.6Mpa
operation temperature ≤150℃
Working medium Water, steam, oil
