AP Automatic Drainer
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | XC403Y-1 XC403Y-2 XC403Y-3 |
|
Detail Information |
|||
| Air Pressure(M Pa): | 0.25~0.8 | Output Pressure Range(M Pa): | 0.14 0.24 0.3~0.6 |
|---|---|---|---|
| Output Flow (NM3/h): | 5.8 6.8 | Diameter(mm): | φ4.2 φ6.2 |
| Strainer Aperture (um): | 10-20 25-40 | Temperature('c): | -35~70 |
| Piping With End Con: | φ 6 NPT-1 / 4 Or NPT φ 8-1 / 4 | ||
Product Description

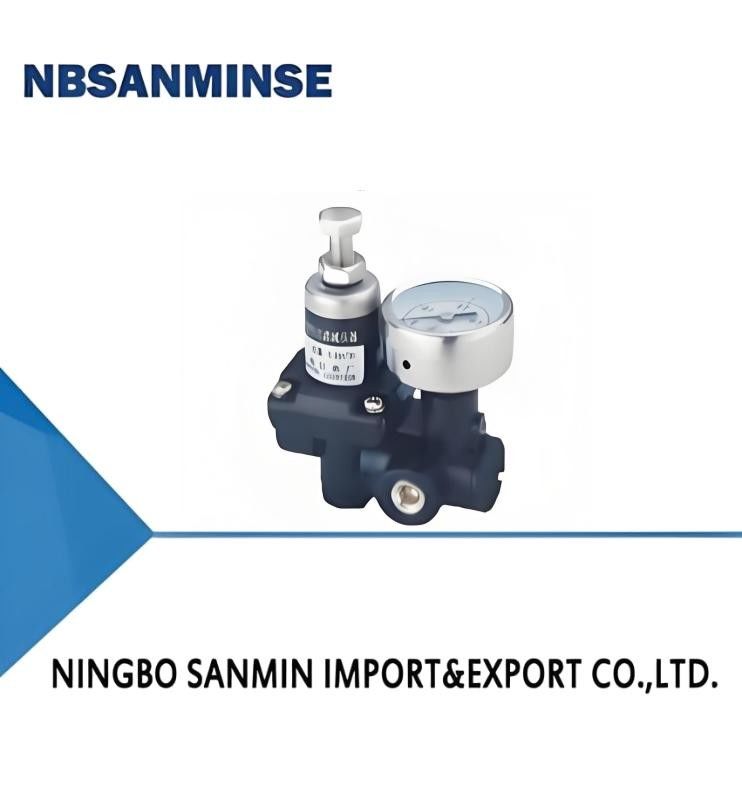

| C403Y series air filtering pressure reducing valve |
|
1.Ultra compact Design It's 1/3 to 1/5 lighter than currently available pressure regulator. 2.Not need fixed bracket With a pipe joint can be directly connected to locator. 3.The filter is to use fiber cloth tube Using the fluid resistance small polypropylene fiber cloth tube. compared with sintered its resistance under 1/7 only. 4.Air interface can be free to choose Two gas interfaces, are free to choose, install,high efficiency |
| First, Product Overview C403Y air filtration pressure reducer is our factory imported the latest technology in the 90s, on the basis of development, research, and its performance technology to achieve similar foreign product standards. Output has small volume, large flow, good accuracy and stability advantages. Applicable to the electric/gas converter, electric/ gas valve positioner and all kinds of pneumatic instrument air filter pressure-relief devices. |
| Model | XC403Y-1 | XC403Y-2 | XC403Y-3 |
| Air pressure(M Pa) | 0.25~0.8 | ||
| Output pressure range(M Pa) | 0.14 | 0.24 | 0.3~0.6 |
| Output flow (NM3/h) | 5.8 | 6.8 | |
| Diameter(mm) | φ4.2 | φ6.2 | |
| Strainer aperture (um) | 10-20 | 25-40 | |
| Working temperature('c) | -35~70 | ||
| Piping with end con | φ 6 NPT-1 / 4 or NPT φ 8-1 / 4 | ||
Ordering instructions: If you special requirements, when ordering,please indicate
