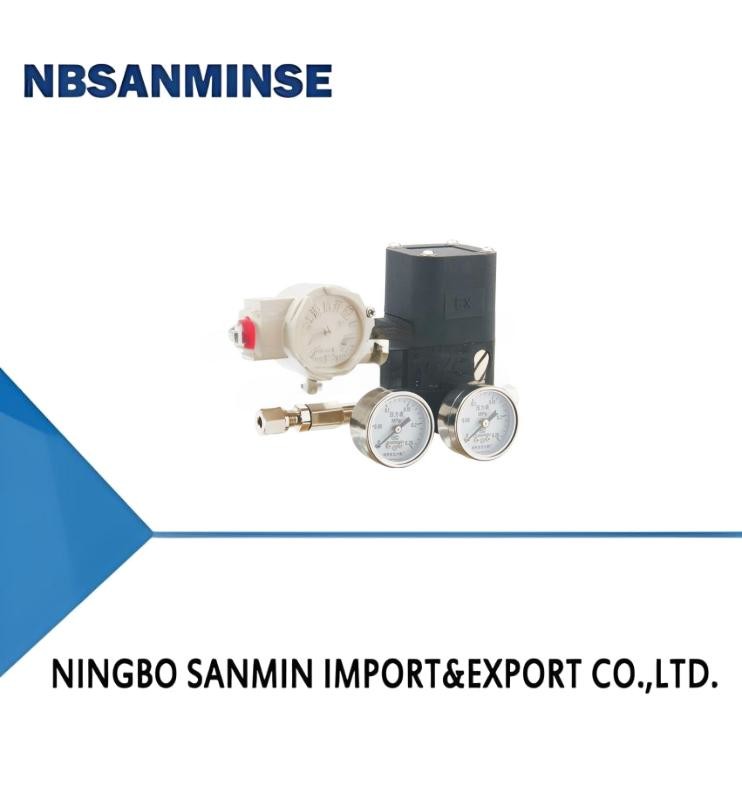

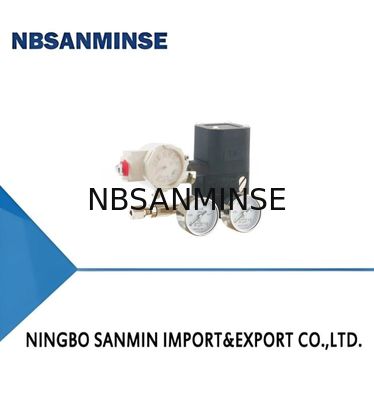

| EPC1000 electro -pneumatic valve positioner |
 |
EPC1000 series of electrical converter is a new type of structure of the electrical conversion unit, which can be different input current signal is converted to the corresponding output pneumatic signal. The converter has a pneumatic power amplifier inside, you can get a higher output power of pneumatic signals to a variety of pneumatic actuators to improve the operating speed of the actuator. |
| Intrinsic error |
1% |
Repeatability |
0.5% |
| Hysteresis error |
1% |
Air pressure |
140-700KPa |
| Maximum flow |
7.6m3/h(at 175KPa air supply)20m3/h(at 700KPa air supply) |
Environment temperature |
-30℃~60℃ |
| Air consumption |
0.3m3/h |
Environmental humidity |
18~85%RH |
| Power interface |
NPT1/2(G1/2) |
Shell material |
Aluminum alloy, Pensu technology processing |
| Overall dimensions |
(Ordinary type and intrinsic safety type)
Ex iaⅡCT6 Gb87x160x107(mm)(Flameproof type)Ex dIBT6Gb:97x186x202(mm)
|
Weight |
(Ordinary type and intrinsic safety type)Ex iaⅡCT6 Gb 0.94kg(Flameproof type)Ex dIBT6Gb 2.35kg |
| Input signal mA DC |
Output pressure K Pa |
lmpedance Ω |
|
4-20
0-10
|
20-100 |
180 |
| 100-20 |
180 |
| 20-60 |
90 |
| 60-100 |
90 |
| 60-20 |
90 |
| 100-60 |
90 |
| 40-200 |
220 |
| 200-40 |
220 |
| Model |
Input current signal |
Pneumatic output signal |
Accessaries |
Structure |
| EPC1 |
1 4-20mA DC
|
1 20-10OKPa Direct action
|
0 Always 0
AS With combined air filtering pressure reducing valve
|
G Ordinary type |
| 2 0-10mA DC |
2 100-20KPa Direct action |
OG With pneumatic pressure gauge |
EX Flameproof type |
| 3 4-12mA DC |
3 20-60KPa Direct action split-ranging |
|
I Intrinsic safety type |
| 4 12-20mA DC |
4 60-100KPa Direct action split-ranging |
|
|
|
5 60-20K Pa Direct action split-ranging |
|
|
|
6 100-60KPaDirect action split-ranging |
|
|
|
7 40-200KPa Direct action |
|
|
|
8 200-40KPa Direct action |
|
|
|
9 80-240KPa |
|
|
