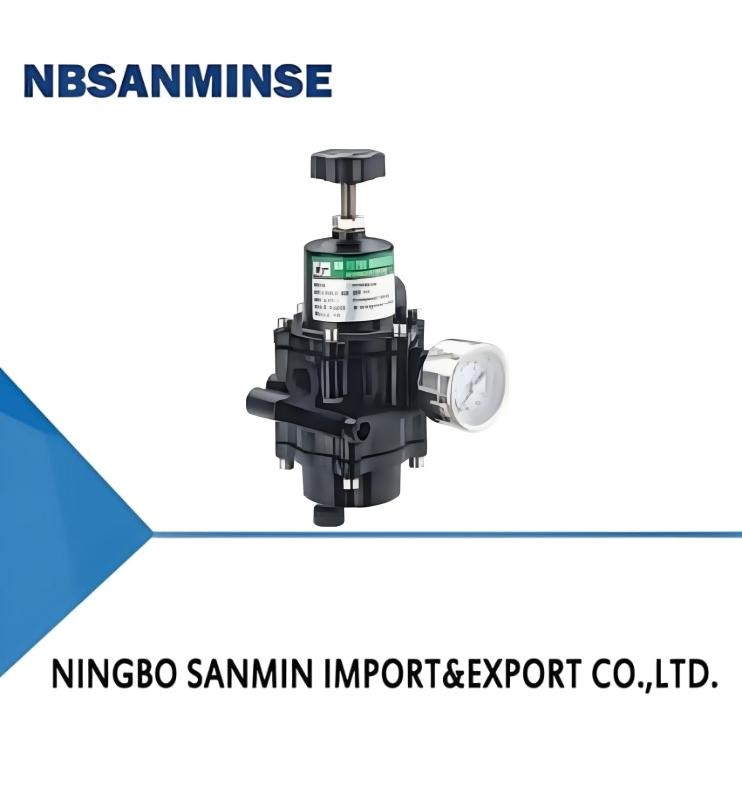

YT200 Sanmin Series Air Filtration Pressure Reducer With 5 Micron Minimum Filter Size

YT200 series air filtration pressure reducer
	1, Sophisticated technology,structure compact, good appearance. 2, Filtering, pure, equipped with PE microporous filter, can be used repeatedly. 3, Aluminum castings for anodic oxidation treatment, surface coating, strong beautiful and corrosion resistance. 4, Key parts stainless steel material. 5,Domestic sewage is convenient and effective.
	First, Product Overview The company produced all kinds of filtering pressure reducing valve is my company to meet the needs of production site and specially design and manufacture. In a larger output flow and more accurate stability and advancement. Widely used in automatic control system, especially suitable for electrical converter, the valve positioner and all kinds of air source for pneumatic instrumentation, actuators filter, vacuum processing.
Project, form	YT-200		YT-205
	A	B	A	B
Highest input pressure	15kgf/cm2(231psi)		15kgf/cm2(231psi)
High output pressure	4.2kgf/cm2(57psi)	8.4kgf/cm2(120psi)	4.2kgf/cm2(57psi)	8.4kgf/cm2(120psi)
Air supply interface	PT(NPT1/4)
Pressure gauge connection	PT(NPT1/4)
Environment temperature	-20℃ ~70℃ (normal temperature) -20℃ ~120℃ (high temperature) -40℃ ~70℃ (low temperature)
Minimum size of filter	5 Micron
Material	Die casting aluminum		Stainless steel
Weight	0.6kg(1.7Ib)		1.4kg(3.0lb)

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
