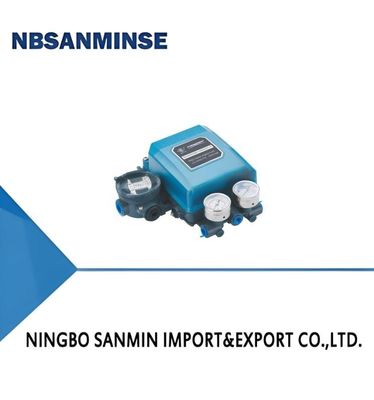

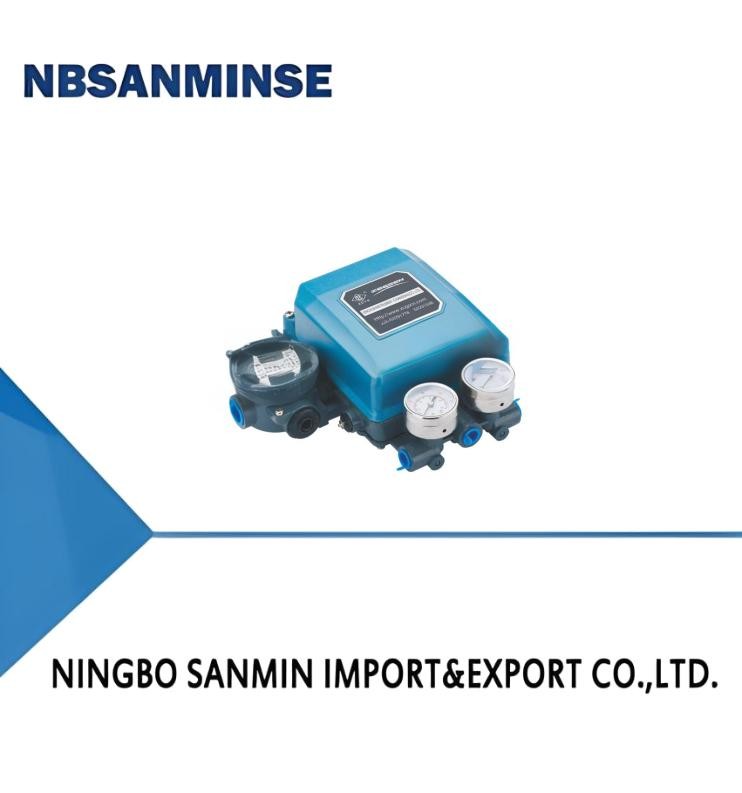

| EP6000 series electrical and gas valve locator |
 |
1. Suitable for small capacity and large capacity of actuators.
2, Amplifier, gas consumption is small, large capacity.
3. Can choose the out out characteristic.
4, Single-acting actuator in need reaction control, positive action type amplifier is
easy to transform into a reaction type amplifier.
5, Pressure explosion-proof type can be adjusted in the field.
6, intrinsically safe has a broad scope of the structure of the building. |
First, Product Overview
EP6000 series of electric valve positioner and actuator, 4 ~ 20 mA DC input the signal output of air pressure, the control action of the actuator. At the same time according to the stroke of the actuator feedback, so that the actuator stroke can accurate positioning according to control signal. EP6000 series electric valve positioner can be used for single action and double action type actuator. |
| Series |
EP6000 |
| Input signal |
4-20mA DC
Process control can be carried out
Adjustment range: 4-12,12-20mA DC
|
| Input impedance |
250Ω~±5% at 25℃ |
| Output characteristic |
Linear (standard) |
|
Amplifier
|
Single action type actuator and double action type actuator combination, single action is action type
amplifier is easy to transform into a reaction type amplifier (input signal increases, the output pressure decreases).
|
| Air pressure |
0.14-0.7MPa(140-700KPa) |
| Output pressure |
0-0.7MPa(0-700KPa) |
|
Air consumption
|
The output 50% air pressure gas consumption.Single acting type: 5Nl/min at140KPa air supply
Double acting type: 15Nl/minat 400KPa air supply.
|
|
The biggest processing capacit
|
When the output side air venSingle acting type: 175Nl/minat 140KPa air supplyDouble acting type: 400Nl/min at 400KPa air supply |
|
Performance
|
Single action type actuator
Linearity................................................ +1.0% of Full stroke
Hysteresis............................................. 0.5%of Full stroke
Response................................................ 0.1% of Full stroke
Repeat accuracy.................................... 0.2% of Full stroke
Air pressure change of error.f......... 0.1% / 10 K Pa
Double action type actuator
Linearity...............................................+1.5% of Full stroke
Hysteresis......................................... 0.8% of Full stroke
Response............................................... 0.2% of Full stroke
Repeat accuracy.....................................0.3% of Full stroke
Air pressure change of error .........0.4%6/10KPa
The above represents the performance of the positioner on an actuator without a valve.
|
| Air supply connection |
RC1/4 |
| Power interface |
NPT1/2(G1/2) |
| Environment temperature |
Standard type: -20~80℃ |
| Humidity range |
10~90%RH |
|
Structure form
|
Outdoor waterproof type (safety type) e Ex eIT6 Gb, IP65 pressure resistant explosion-proof type (explosive type) d Ex dIBT6 Gb
Intrinsically safe (safe) i Ex iaICT6 Gb
|
| Subsidiary body |
Auto, Manual change |
| Shell material |
Aluminum alloy |
| Surface coating |
Spray plastic |
| Standard coating color |
Black Light gray Blue |
| Weight |
2.3Kg-3Kg |
| Additional specifications |
According to the customer request production |
|
Electrical interface
|
1/2NPT(Outdoor water proof type)Pressure filler type (Pressure explosion-proof type)Seal joint type (Pressure explosion-proof type) |
| Safety barrier |
Zener safety barrier(Ex iaⅡC) |
| Pressure gauge calibration |
M Pa, K Pa,Bar,Psi |
| Characteristic |
Equal percentage |
| Air interface |
1/4NPT |
| Model |
Explosion-proof grade(protection)structure |
Feedback(action) |
Action type |
Accessories |
|
EP6
|
1 Flame proof d Ex
dⅡBT6 G
|
1 Straight travel actuators:standard |
1 Single action with actuator(single-acting) |
AS With correlation
Matching combination
Air filtering pressure reducing valve
|
|
2 Increased safety type
e Ex d IT6 Gb, IP65
|
2 Quarter-turn
actuators:
standard
|
2 Double action with actuator(double-acting) |
______ |
| 3 Intrinsic safety type I Ex iaⅡCT6 Gb |
_____ |
_____ |
