| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | JHd01 |
|
Detail Information |
|||
| Allow The Cable Diameter: | φ7.5~φ9.5/φ9~φl1mm | Rated Voltage: | AC 220V(50Hz)DC24V |
|---|---|---|---|
| Allow The Electric Current: | ≤10A | Temperature: | -20~+60℃ |
| Environmental Humidity: | ≤90% | Explosion-proof Grade: | Ex DⅡC Gb |
| Protection Grade: | IP65 | Explosion-proof Electrical Interface: | NPT 1 / 2, And NPT 1 / 2 |
| Weight: | 0.35Kg | ||
Product Description

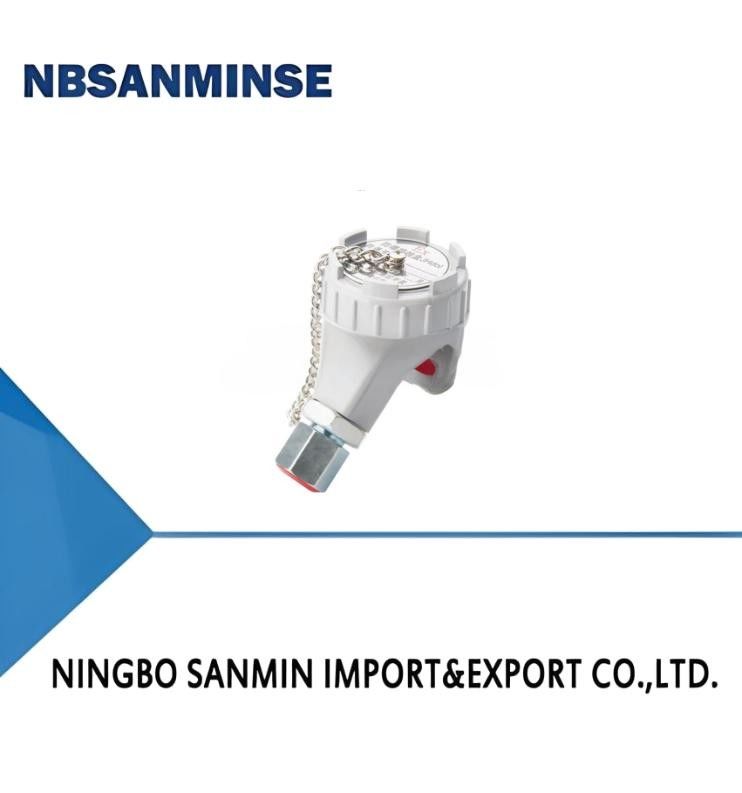

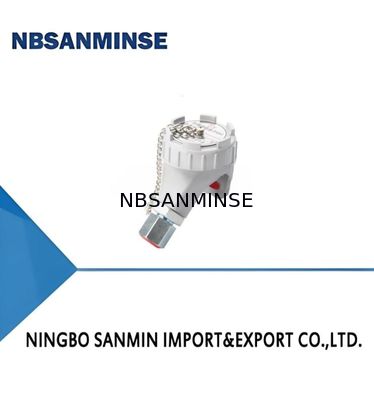

| JHd01 series connection box |
|
1.The junction box installation,, shell should be reliable grounding. 2.The introduction of cable sheath diameter for 7-8 mm, tighten gland nut, sealing ring diameter hold cable sheath 3.Must open after power off. 4.Users to install and use, and maintenance of this product, must be in accordance with relevant provisions of GB3836 explosion - proof standards. |
| First, Technical Data Such as ASCD solenoid valve: EF8320(series): EF8320G174,EF8320G201; EF8314(series): EF8314G34,EF8314G53; EF8327(series): EF8327G041,EF8327G051. |
| Allow the cable diameter | φ7.5~φ9.5/φ9~φl1mm |
| Rated voltage | AC 220V(50Hz)DC24V |
| Allow the electric current | ≤10A |
| Environment temperature | -20~+60℃ |
| Environmental humidity | ≤90% |
| Explosion-proof grade | Ex dⅡC Gb |
| Protection grade | IP65 |
| Riot level | Ex dⅡC Gb, widely used in power supply interface for encapsulation type solenoid valve, explosion-proof equipment. |
| Explosion-proof electrical interface | NPT 1 / 2, and NPT 1 / 2 |
| Weight | 0.35Kg |
