Versatile EPP1000 Sanmin Series Electrical And Gas Valve Locator With PTM And Built-In Valve Position Feedback

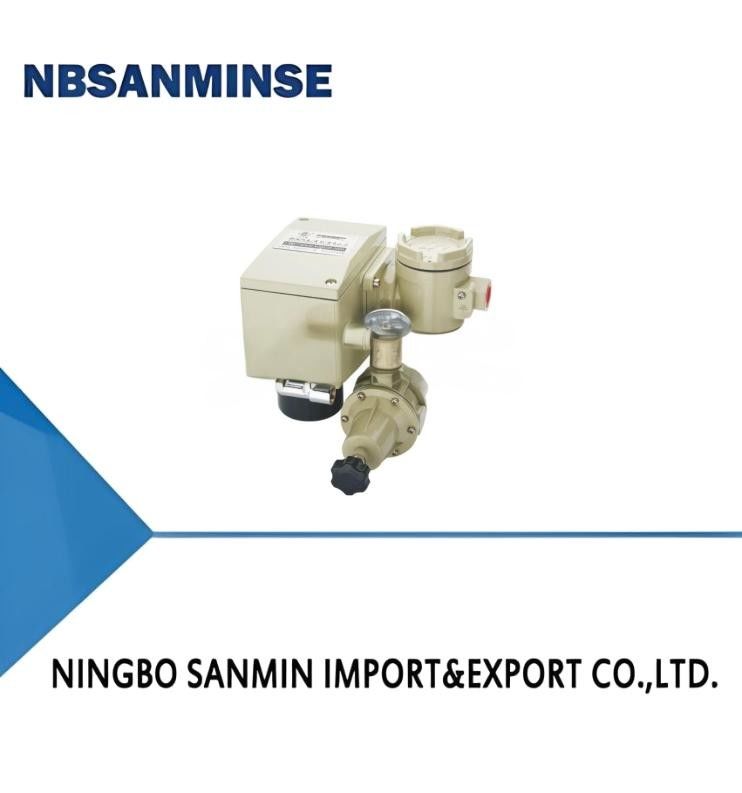

Large Image : Versatile EPP1000 Sanmin Series Electrical And Gas Valve Locator With PTM And Built-In Valve Position Feedback

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	EPP1

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

Versatile EPP1000 Sanmin Series Electrical And Gas Valve Locator With PTM And Built-In Valve Position Feedback

Description

Locator Model:	1 Positive Effect 2 Reaction	Pressure:	A 0.14-0.16MP A B 0.17-0.5MPa
Job Characteristics:	1 Linear 2 Percentage	Structural Type:	Ordinary Type I Intrinsic Safety
Accessories:	NO +PTM	Signal Range:	1 4~20mAD.C 2 0~10mAD.C
Highlight:	PTM Electrical and Gas Valve Locator , Versatile Electrical and Gas Valve Locator , Built-In Valve Position Feedback Locator

EPP1000 Series electrical and gas valve locator
		1, Introduction of foreign advanced design, high reliability, small volume, light weight, etc. 2,Magnetoelectric component part adopts new coil structure,reliable, good stability and linear. 3, In addition to the explosion-proof junction box, the scene of the dangerous area can be adjusted and open the shell and cover maintenance and repair. 4,Range, zero adjustment knob by hand wheel, easy to adjust, and with a locking device.
First, Product Overview EPP1000 series electrical and gas valve positioner is the function of adjusting device of the output electric signal into drive regulator action gas signal, and has the function of the valve positioning, is overcome stem friction, offset the pressure change of modulated medium of unbalanced force, so that the valve opening corresponding to the adjusting device output signal, realize the correct positioning. Due to the positioning equipment explosion - proof structure, it can be used in explosive place
Model	The Input signal range	The locator role model	Job characteristics	Structural type	Gas supply pressure	Complete set	Choose accessories
EPP1	1 4~20mAD.C	1 Positive effect	1 Linear	Ordinary type	A 0.14-0.16MP a	A With a combined pressure-reducing valve	NO
	2 0~10mAD.C	2 Reaction	2 Percentage	I Intrinsic safety type	B 0.17-0.5MPa	B Don't take combined Pressure Reducing valve	+PTM (Built-invalve position feedback)
	3 10~50mAD.C	_____	3 Quick opening	b Flame-proof type	_____	_____	_____
	4 4~12mAD.C	_____	_____	_____	_____	_____	_____
	5 12~20mAD.C	_____	_____	_____	_____	_____	_____
