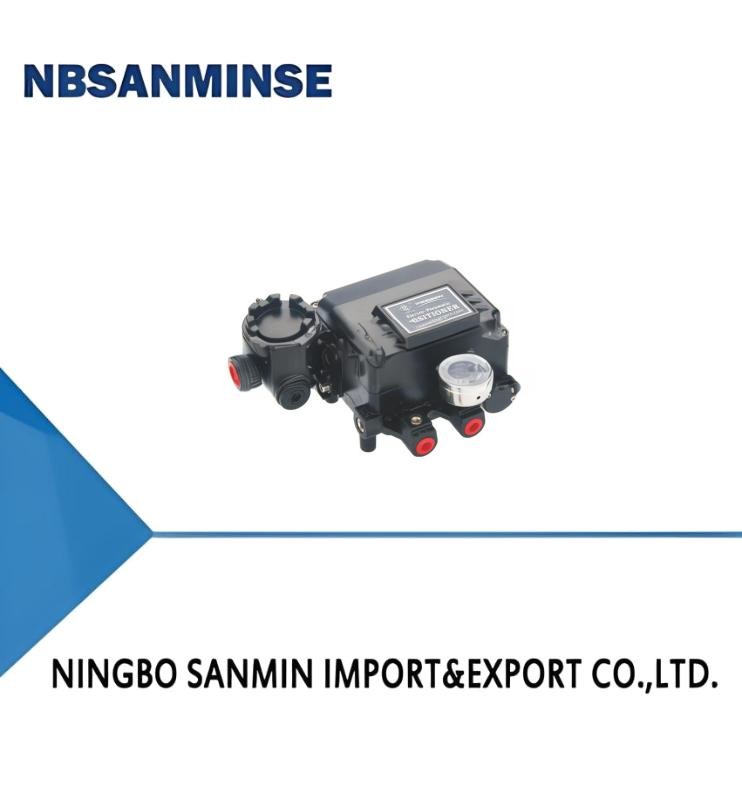

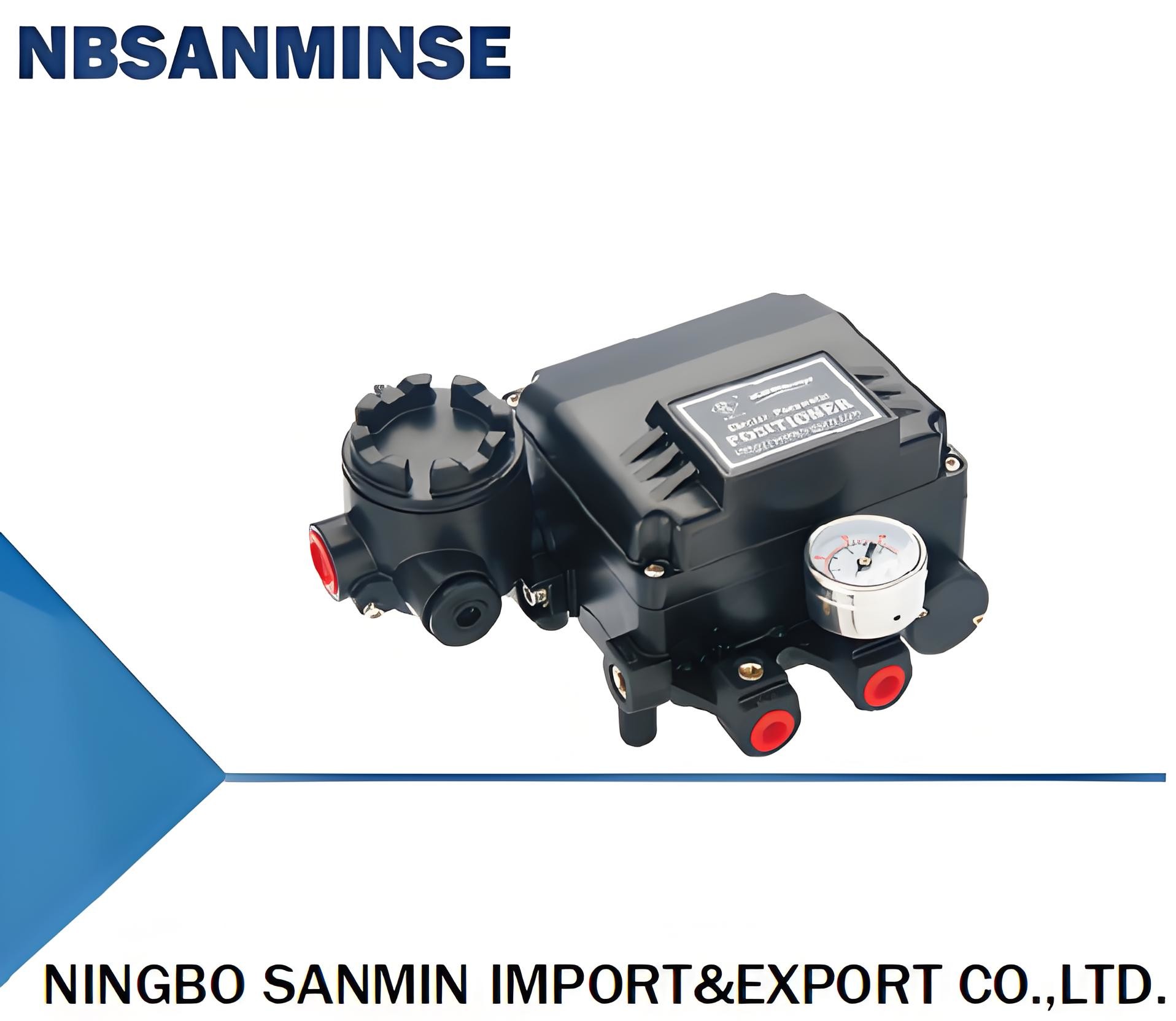

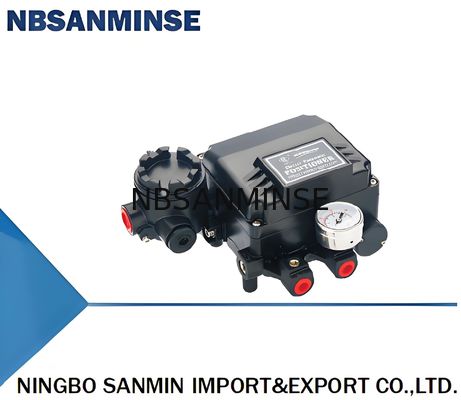

YT1000 series electrical and gas valve locator |
|
|
1.Through the CE certification
2.Through the explosive - proof grade (Ex iaⅡBT6 Gb, Ex dmbⅡBT6 Gb, Ex dmbⅡCT6 Gb) certification
3.Through the IP66 rating certification
4.With a high vibration (no influence in 5 - 200 Hz)
5.Electrical interface are porous form, to any direction connection
6.Are calibration is simple, easy to implement, reaction conversion
7.Don't need to change, 1/2 equal parts can complete control
8.Modular structure design for parts, easy to repair and maintenance
|
First, Product Overview
YT 1000 series electric positioner and pneumatic control valve, constitute a closed loop control circuit. To convert the dc current signal control system is given to drive letter of gas valve control valve action. At the same time according to the feedback regulator of the opening to make the valve position can correct positioning according to the system output control signals. The electrical locator is available In the type single acting (spring return type) and double - acting pneumatic actuators. |
| Model |
YT1000L |
YT1000R |
| project |
Straight travel |
Angular travel |
| Single-action |
Double-acting |
Single-action |
Double-acting |
| Input signal |
4~20mA DC |
| Impedance |
250±15Q |
| Supply pressure |
1.4~7kgf/cm2(20~100psi) |
| Stroke |
10~150mm 0~90° |
| Trachea interface |
NPT1/4 |
|
Pressure
gauge interface
|
NPT1/8 |
| Power interface |
NPT1/2(G1/2) |
| Explosion-proof grade |
Ex dmbⅡB(C)T6 Gb,Ex ia ⅡB(C)T6 Gb |
| Protection grade |
IP66 |
| Envronment temperature |
-20℃~70℃ |
| Linearity |
±1%F.S±2%FS |
| Hysteresis |
±1%F.S |
| Sensitivity |
±0.2%F.S±0.5%F.S |
| Repeatability |
±0.5% |
| Air consumption |
3LPM(Sup=1.4kgf/cm2,20psi) |
| Flow capacity |
80LPM(Sup=1.4kgf/cm2,20psi) |
| Material |
Cast aluminium |
| Weight |
2.7kg(6 lb)2.8kg(6.2 Ib) |
| Model |
Actuator movement |
Action type |
Explosion-proof grade |
Feedback bar form |
Pilot valve exhaust hole |
Options |
| YT-1000 |
L Linear |
S Single action |
M Ex dmbⅡBT6 Gb |
1 10~40mm(Linear)
M6x40L (Rotary type)
|
1 Actuator volume is.less.than 90cm³ |
0 No |
| R Rotary type |
D Double-acting |
C Ex dmb ⅡCT6 Gb |
2 40~70mm(Linear)
M6x63L (Rotary type)
|
2 Acyuator volume90-180 cm ³ |
1 +PTM(built-invalve position.feedback) |
|
|
I Ex iaⅡBT6G b |
3 70~100 mm (Linear)
M840L (Rotary type)
|
3 Actuator volume is greater than 180cm³ |
2 +PTM(Outer valve position feedback) |
|
|
P EX iaⅡC16G b |
4 100-130 mm (Linear)
M863L (Rotary type)
|
|
3 +L/S (Built-inlimit. switch) |
|
|
N Non explosion proof |
5 130-150 mm (Linear)
NAMUR(Rotary type)
|
|
4 +L/S(Outer limit .switch) |
|
|
|
|
|
|
5+PTM+L/S(Built-in.valve.position feedback.and limit switch) |
