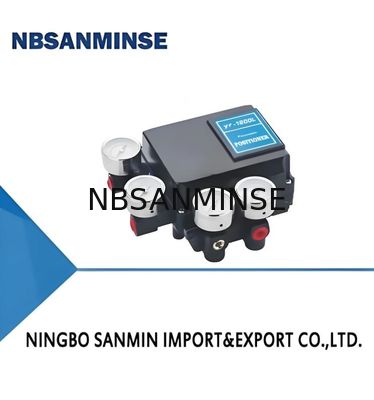

| YT 1200 series pneumatic valve locator |
|
|
1.The structure of seismic reinforcement, action at the scene of the big vibration and very stable.
2, After more than 1 million times a fatigue test and seismic test, to ensure the stability of the products.
3. Reaction speed. accurate positioning.
4.Through a simple replacement parts is 1/2 minutes ride control can be realized.
5.Gas consumption is small, good energy saving.
6.Positive and negative role conversion is very simple.
|
First, Product Overview
Pneumatic valve positioner YT 1200 series of products from the control system receives the air pressure is 3 ~ 15 psi signal, according to the signal pressure precision adjustment device of the valve opening. |
| Model |
YT1200L |
YT1200R |
| Project |
Straight trip |
Angle stroke |
| Single-action |
Double-acting |
Single-action |
Double-acting |
| Input signal |
0.2~1.0kgf/cm2 (3 ~ 15 psi), (Are also applicable to the process and control) |
| Trip |
Standard type: 20~70mm type
Selection: 70~150mm
|
0~90° |
| Air supply interface size |
Standard type: PT 1 / 4 (pressure gauge PT / 1 / 8)
Selection: NPT 1 / 4 (pressure gauge NPT / 1 / 8)
|
|
Pressure gauge (output pressure)
|
Standard:
0~2.0kgf/cm²
0~4.0kgf/cm²
0~10kgf/cm²
|
Standard:
0~2.0kgf/cm²
0~4.0kgf/cm²
0~10kgf/cm²
|
| Supply pressure |
1.4~7.0kgf/cm2(20~100psi) |
| Protection grade |
IP66 |
| Cam |
Linear |
| Environment temperature |
-20~70℃ |
| Linear |
±1.0%FS |
±2.0%FS |
| Degree of lag |
±0.75%FS |
±1.0%FS |
| Sensitivity |
±0.3%FS |
±0.5%FS |
| Repetitive |
±0.3%FS |
±0.5%FS |
| Air consumption |
3.0LPM(Sup=1.4kgf/cm2),11LPM(Sup=4.0kgf/cm2) |
| Flow |
80LPM(Sup=1.4kgf/cm2),200LPM(Sup=4.0kgf/cm2) |
| Material |
Die casting aluminium |
| Weight |
1.7kg |
| Model |
Action type |
Action way |
Feedback pole(YT-1200L) |
Feedback pole(YT-1200R) |
Air Supply interface |
Environment temperature |
| YT1200 |
L linear pattern |
S Single-action |
1 40mm(Following) |
1 M6X40L |
1 PT |
S -20℃~70℃ |
| R Angular travel |
D Double-acting |
2 40~70mm |
2 M6X63L |
2 NPT |
H -20℃~120℃ |
|
|
3 70~100mm |
3 M8X40L |
|
L -40℃~70℃ |
|
|
4 100~130mm |
4 M8X63L |
|
|
|
|
5 130~150mm |
5 The.NAMUR.(standard ard) |
|
|
