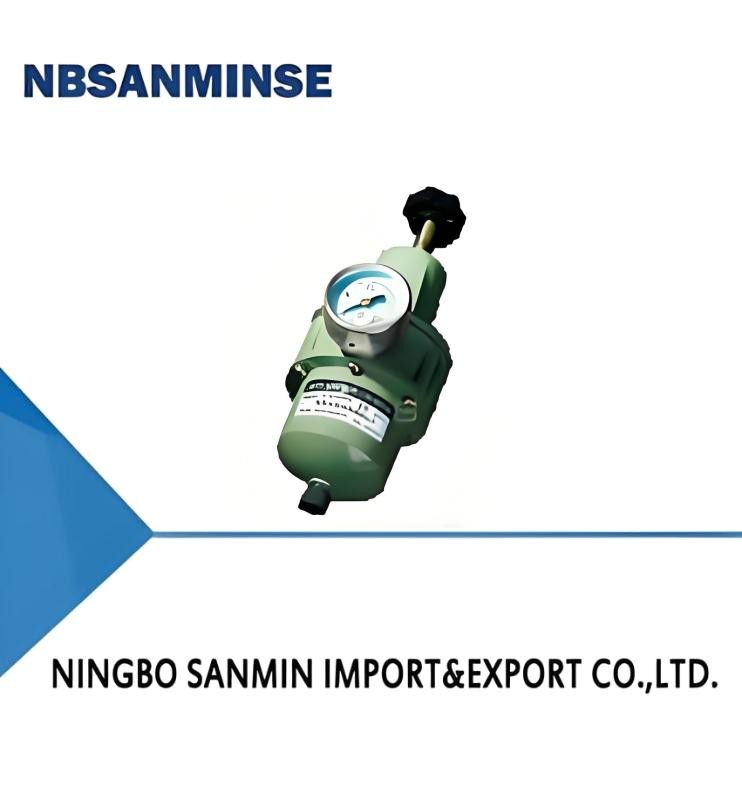

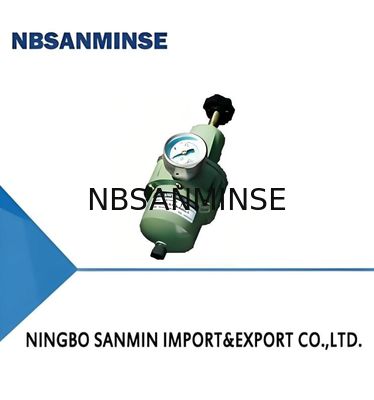

0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure

0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure
0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure
0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure 0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure

Large Image :  0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: QFH111 QFH211 QFH212 QFH213 QFH221 QFH222 QFH223 QFH241 QFH261
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: T/T,L/C
Supply Ability: 10000PCS
Contact Now

0.7-1.0 MPA Air Pressure QFH Sanmin Series Air Filtration Pressure Reducer 0.6 MPA Maximum Output Pressure

Description
Air Pressure: 0.3~0.7 0.4~0.7 0.7~1.0(MPA) Pressure: 0.16 0.25 0.4 0.6(MPA)
Maximum Output: 3 12 40 3 12 40 3(M/H) Internal Thread: 1/4(M10×1) G1/2 G3/4
Warranty: 1 Year
Highlight:

0.6 MPA Air Filtration Pressure Reducer

,

QFH Air Filtration Pressure Reducer

QFH series air filtration pressure reducer

1.When the input pressure and flow rate fluctuation, can keep a stable output pressure,

2.Light weight, small size, easy installation and maintenance,

3.Can filter 5 micron particles;.

4.If the output pressure is higher than the set, then the atmosphere to maintain the stable of output pressure.
First, Product Overview
QFH air filtration pressure reducer of 0.3 - 1 M Pa from air compressor, air pressure, passing by after filtration, adjustable from 0 - 0.16; 0 - 0.25; 0 - 0.4; 0 - 0.6 M Pa range any lose the pressure value, maintain the stability of the auxiliary components.
Model QFH111 QFH211 QFH212 QFH213 QFH221 QFH222 QFH223 QFH241 QFH261
Air pressure (MPA) 0.3~0.7 0.4~0.7 0.5~1.0 0.7~1.0
Maximum output pressure(MPA) 0.16 0.25 0.4 0.6
Maximum output flow(M/H) 3 12 40 3 12 40 3
To take over the internal thread 1/4(M10×1) G1/2 G3/4 1/4(M10×1) G1/2 G3/4 1/4(M10×1)
