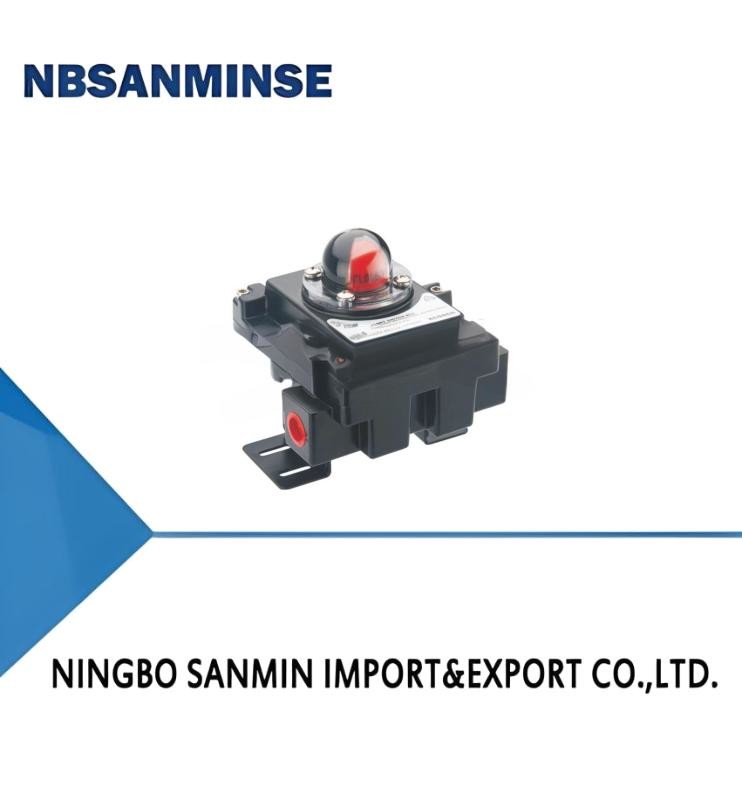

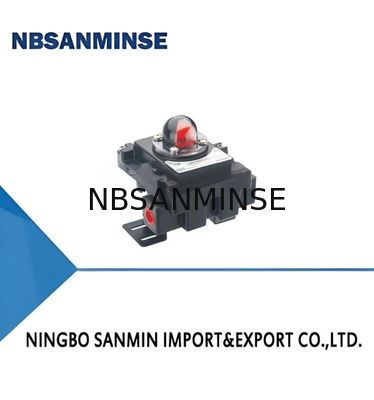

| Limit switch APL Series |
|
1.Die casting aluminum alloy shell, powder coating, nice appearance, reliable in quality.
2.Switch position indicator can be made of clear identification
3.Quick setting CAM, by spline shaft and the spring installation,convenient adjustment without tools.
4.Multijunction terminal row,there are 8 standard contact, safe and convenient wiring
5. Interface standard of wire
6. Prevent to take off the bolt,dismantling bolt attached to the cover will not fall off.
|
| Model |
APLXC-3N Series |
APLXC-4N Series |
APLXC-5N Series |
| Standard |
Option |
Standard |
Option |
Standard |
Option |
| Shell |
IP67 |
IP67 EexdⅡBT6 Gb
(EN50014/50018)
|
IP67 EexdⅡCT6 Gb (EN50014/50018) |
| Temperature |
-25~85℃ |
|
Connection terminal
|
2×1/2NPT
|
PT1/2
PF1/2
M20,PG13.5
|
2×3/4NPT
|
PT3/4 PF3/4 |
2×3/4NPT
|
PT3/4 PF3/4 |
|
Binding post
|
8 |
9~24 |
8 |
9~24 |
8 |
9~24 |
|
Conform to standard
|
| Position indication |
0~90° |
0~180° |
0~90° |
0~180° |
0~90° |
0~180° |
| Open-yellow; close-red |
| Micro switch |
Mechanical type, induction type, spring proximity type |
| Potentiometer |
1K ohm(0~5K ohm,0~10K ohm) |
| Current feedback |
4~20mA(20~4mA) |
| Model |
Shell |
Micro switch |
|
Stents |
|
APLXC
|
3 Climate protection type (IP67 |
10 2-SPDT (Mechanical) |
Indicator shell For the bolted fixation |
A
Ordinary type limit switch (side mounted)
30×80 H:20~30
|
| 4 Flameproof type (EexdⅡBT6G b) |
11 3-SPDT (Mechanical) |
|
|
5 Flameproof type(EexdⅡCT6G
b)
|
12 4-SPDT (Mechanical) |
|
|
13 2-SPST (Mechanical |
|
B
Ordinary type limit switch (side mounted)
30×130 H:30~50
|
|
14 2-DPDT (Mechanical) |
|
|
15 2-SPDT + potentiometer (mechanical ) |
|
|
16 2-SPDI + current feedback (4-20 mA) (induction type) |
|
C
Flameproof limit switch (bottom mounting)
30×80H:30
|
|
20 P&F.NJ2-V3-N (Induction-type) |
|
|
21Autonics.PSI7-5DN U (Induction type) |
|
|
22P&F.NJ412GM-N
(induction type)
|
|
D
Flameproof limit switch (bottom mounting)
30×130 H:30
|
|
23NBB 2-V3 (induction type) |
|
H:refers to the height of the pneumatic actuators upper output shaft |
|
30General type (spring proximity) |
|
|
31High temperature type (100℃) G spring proximity) |
|
