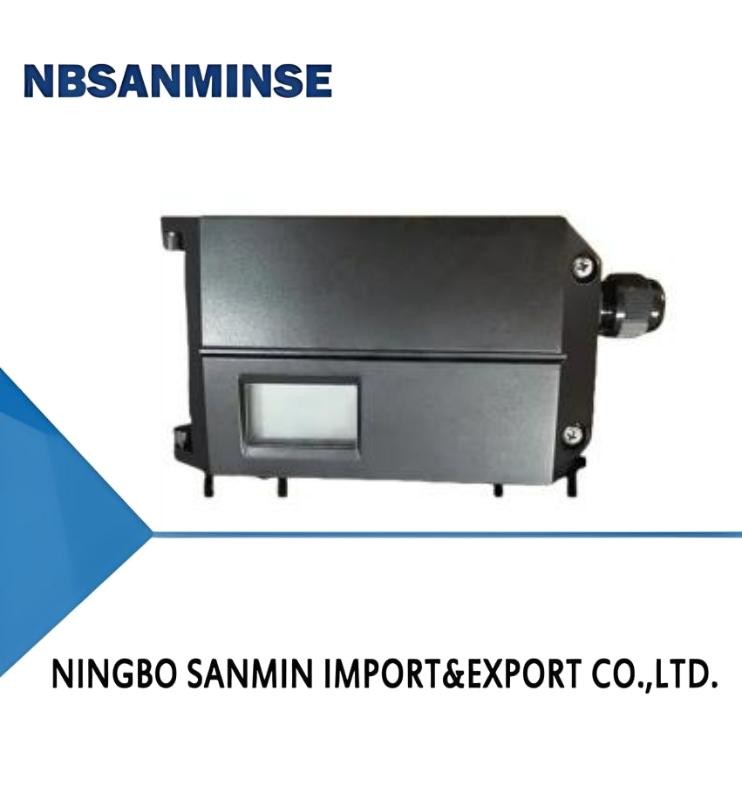

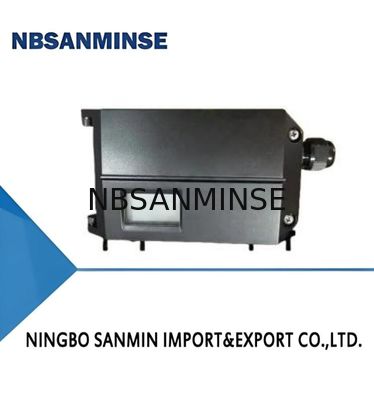

| CN8000 Series of intelligent electrical valve positioner |
|
1.Read the installation instructions carefully before installing the positioner. Install the positioner according to the described installation requirements. Please note some installation key points. For example, confirm the initial position of the positioner or the feedback shaft of the remote - type sensor before installation. Do not rotate the feedback shaft by 360° during the installation process. For conventional straight - travel positioners, ensure that the upper plane of the positioner casing is at a right angle to the main shaft of the valve. Within the valve stroke range, the rotation angle of the positioner feedback rod meets the installation requirements.
2.After installing the positioner on the valve, connect the air source and electrical wiring. Ensure that the air source pressure can fully open the valve. Input a 4 - 20mA signal to energize the positioner.
3.When the positioner is powered on, the system is in an uninitialized state before the initialization function is completed. The display indication is NOINI, and the interface first displays the percentage value of the sensor.
|
|
Product Overview
The CN8000 series intelligent electro - pneumatic valve positioners are used in conjunction with pneumatic actuators. They receive a 4 - 20mA DC current signal from the automatic control system to obtain the valve position control set - point. Meanwhile, they collect the signal from the position sensor to get the actual valve position. Through the computational processing of the control software for these two values, they control the air intake and exhaust of the pneumatic actuator, driving the valve position to reach the set - point.
|
| Installation type |
Conventional linear stroke |
| Remote - type linear stroke |
| Conventional angular stroke |
| Remote - type angular stroke |
| Split - type |
| Acting Form |
Single-action |
| Double-acting |
| Explosion-proof Grade |
Not explosion-proof |
| Ex ia IIC T4/T6 Ga |
| Ex d IIC T6 Gb |
| Feedback Signal |
Not have |
| Have |
| HART Communication |
Not have |
| Have |
| Mounting Bracket |
Not have |
| Linear stroke bracket |
| Angular stroke bracket |
| Pressure gauge components |
Not have |
| Have |
| Power - off State |
Reset |
| Hold - position |
| Minimum ambient temperature |
-20℃ |
| -40℃ |
| Shell Material |
Aluminum alloy |
| Signal lnput |
4-20mA DC |
| Minimum working current |
3.8mA |
| Input impedence |
120Ω |
| Ambient temperature |
General version: -20℃ ~ + 70℃
Low-temperature version: -40℃ ~ + 70℃
Maximum explosion-proof temperature in T4 environment is + 60℃. The maximum explosion-proof temperature in T6 environment is + 40℃
|
|
Air source requirements
|
Compliance with ISO 8573-1
Solid particle size and density:class 3
Dew point :class 3
Oil content :class 3
|
|
Vibration resistance
|
0.15mm, 10Hz-60Hz, 20 cycles / axis
20 m/s², 60Hz-500Hz, 20 cycles / axis
Recommended range for continuous operation of the entire control valve 20m/s² no resonance peak
|
| Ar source prewwure |
0.14-0.7MPa |
| Flow rate |
Intake
2 bar:4.8 Nm³/h
4 bar:8.0 Nm³/h
6 bar:11.2 Nm³/h
Exhaust (reset)
2 Bar:5.9 Nm³/h
4 bar :9.8 Nm³/h
6 bar:13.7Nm³/h
Exhaust (hold-position)
2 bar :6.6 Nm³/h
4 bar :11.1 Nm³/h
6 bar:15.6 Nm³/h
|
| Steady state air consumption |
≤0.4L/min |
| Basic error |
≤1.0% |
| Hysteresis |
≤1.0% |
| Electrical interface |
M20×1.5 |
| Pneumatic interface |
G1/4 |
| Weight |
2.0 kg |
| Protection Level |
IP66 |
| Explosion-proof Grade |
Ex 1a IIC T4/T6 Ga |
|
Electrical interface |
Description |
| IN+ |
4-20 mA setting signal + |
| IN- |
4-20 mA setting signal- |
| OUT+ |
Feedback signal Module 18-30V DC + |
| OUT- |
Feedback signal module 4-20 mA output |
|
Pneumatic interface |
Description |
| SUP |
Air source inlet |
| OUT1 |
Pilot air port 1 |
| OUT2 |
Pilot air vent 2, used during double-action |
