Optimize System JQF Intake Control Valve 40mm Orifice 15 Bar Maximum Pressure

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	JQF-40B-K

Detail Information
Orifice:	40mm	Maximum Pressure:	15 Bar
Medium Temp.:	-20℃~+120℃	Environment Temp.:	-20℃~+60℃
Highlight:	15 Bar Intake Control Valve , JQF Intake Control Valve , 40mm Orifice Intake Control Valve

Product Description

Air Inlet Valve of screw compressor,normally opened,is designed to open and close by signal input and offers internal pressure discharge,automatic air compensation and backstopping,and has the merits of stable performance,high

efficiency and energy saving.

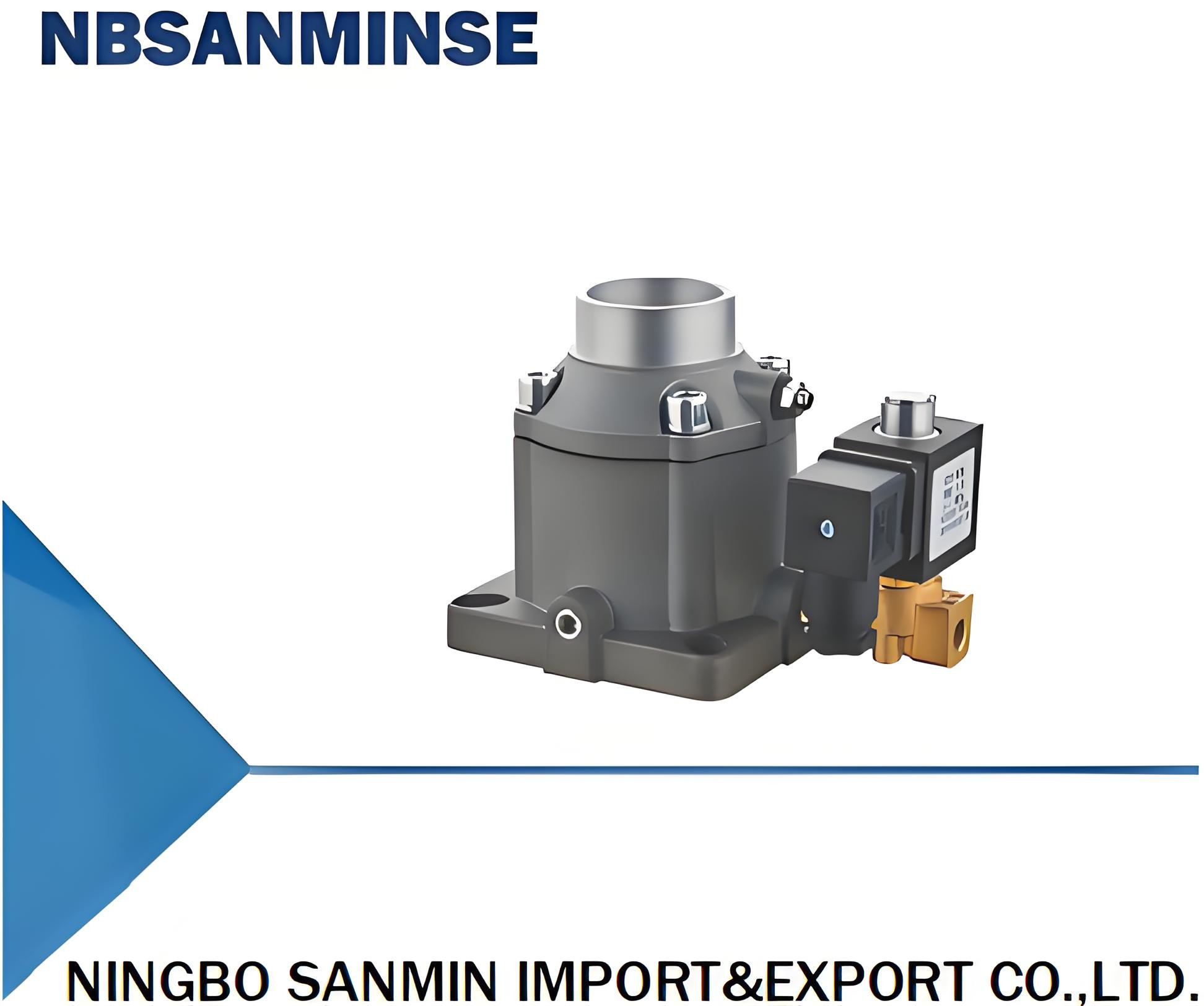

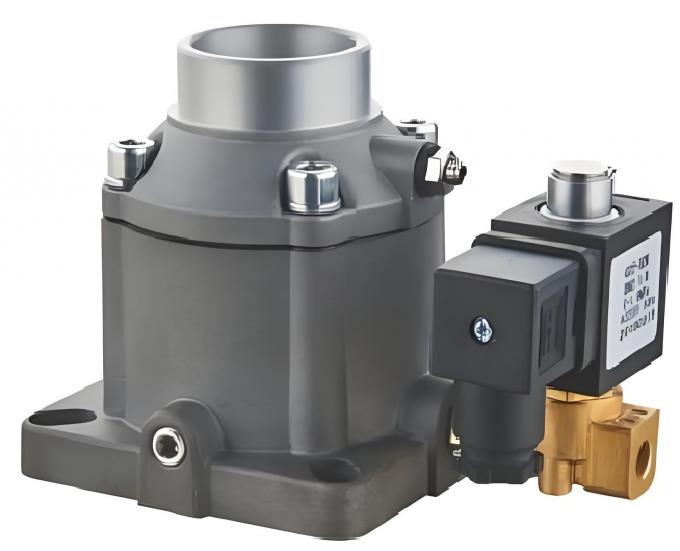

JQF Intake Control Valve

Model:JQF-40B-K

Orifice:40mm

Maximum Pressure:15 Bar

Working Medium Temperature:-20℃~+120℃

Working Environment Temperature:-20℃~+60℃

Optimize System JQF Intake Control Valve 40mm Orifice 15 Bar Maximum Pressure 0

Installation Parameters

Optimize System JQF Intake Control Valve 40mm Orifice 15 Bar Maximum Pressure 1
