AP Automatic Drainer G1/2" Thread Interface For Temperature Range -20C- 60C

Automatic water drainer is available for air compressor and pipelines,can automatically exhaust the condensed water at any time,so as to ensure a dry and clean compressed air.

 AP Automatic Drainer

Model:AP-68/1     AP-68/2

Interface Thread:G1/2"

Maximum  Pressure:15  Bar

Working    Medium   Temperature:-20℃~+120℃

Working    Environment    Temperature:-20℃~+60℃

The automatic drainer is mainly used to automatically remove condensate, oil stain and impurities generated in the compressed air system, keep the air dry and clean, prevent equipment corrosion, blockage and failure, so as to extend equipment life and improve system efficiency. Through the principle of physical (such as floating ball) or electronic (such as solenoid valve and sensor), it automatically opens the valve regularly to discharge pollutants without loss of compressed air.
Specific functions:
Removal of condensate and contaminants: The compressed air system generates condensate during operation and carries oil and dust. The automatic drainer collects these contaminants in a centralized manner and discharges them when a certain level is reached.
Prevention of equipment corrosion and damage: the retained condensate will corrode the air storage tank, pipeline and equipment, causing corrosion and damage. The automatic drainer can be removed in time to protect the equipment.
Ensure air quality: dry and clean compressed air is essential for precision instruments and downstream equipment. The automatic drainer helps to maintain the desired moisture content of the compressed air, avoiding excessive moisture from affecting the normal operation of the equipment.
Improve system reliability: Regular drainage of accumulated water and dirt can prevent pipe blockage and filter failure and ensure stable and reliable operation of the entire air compression system.
Automation and energy conservation: compared with manual drainage, automatic drainer eliminates manual intervention and realizes unattended automatic operation. In addition, advanced design (such as zero air consumption drainer) can effectively avoid unnecessary compressed air loss.
Field of application:
Automatic drainer is widely used in all links of compressed air system, including air receiver, air compressor, filter and separator, air drier, low point and drip leg of pipeline.

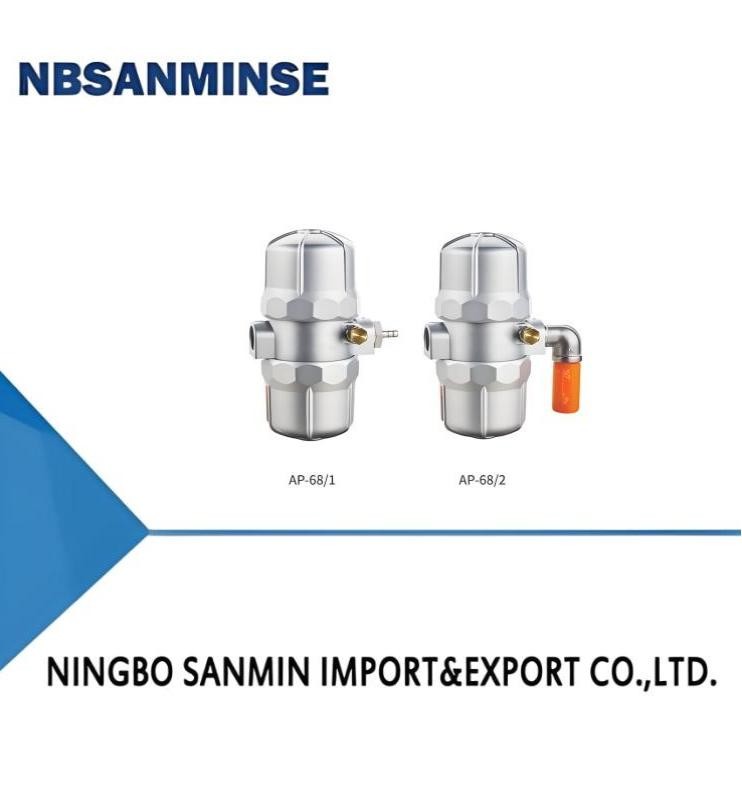

     AP-68/1                  AP-68/2

Installation    Parameters
