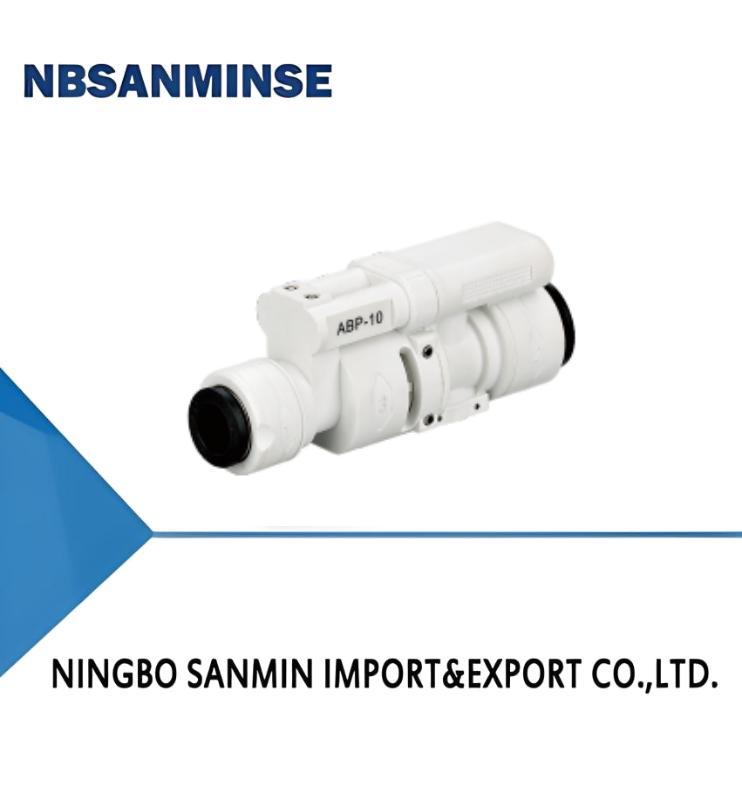

ABP Series Vacuum Generator with Fast Blow-off

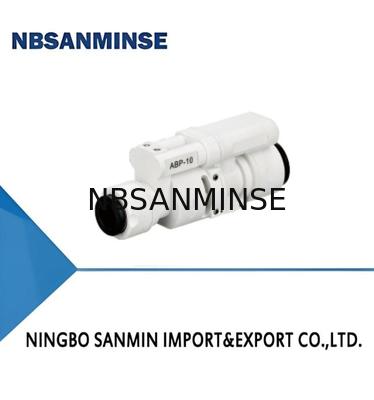

Large Image : ABP Series Vacuum Generator with Fast Blow-off

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	ABP-10

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

ABP Series Vacuum Generator with Fast Blow-off

Description

Pressure:

5.0bar

Max. Vacuum Level:

81 -kPa

Max. Vacuum Flow:

38 NL/min

Air Consumption:

38NL/min

Highlight:

ABP Series vacuum generator

fast blow-off vacuum generator

pneumatic solenoid valve with warranty

Features

◇ Axial connection

◇ Plastic housing, compact size, light weight

◇ Connect plug-in fitting directly

◇ Optimal direct lateral exhaust design

◇ Built-in fast breaking device, no need of external drive

Advantages

◇ Connect hose directly

◇ Suitable for installing in narrow space

◇ Easy to mount, there is no need to add extra mounting accessories

◇ Reduce product noise most

◇ Release product fast

Applications

◇ The linear vacuum generator can be connected with the PU hose

directly

◇ Suitable for the handling systems with limited space

◇ Suitable for occasions where there is no need of external drive and

can automatically release workpiece fast

◇ Suitable for occasions where need to grip and release workpieces

fastly, and there is requirement for light weight of whole equipment, etc.

Structure

◇ (1) Air supply port

◇ (2) Vacuum port

◇ (3) Exhaust port

ABP
①②
①Series			②Specification
ABP			10
Technical parameters
Model	Air supply pressure range bar	Rated air supply pressure bar		Max. wacuum level -kPa	Max. vacuum flow NL/min		Air consumption NL/min		Noise level dB(A)	Working temperature ℃			Weight g		Recommended h Air supply port P			ose da(mm) Vacuum port V
ABP-10	4.0~7.0	5.0		81	38		38		70	0~60			34		φ8			φ10
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min		0	10	20	30		40	50		60		70		80	Max. vacuum level -kPa
ABP-10	5.0	38		38.0	32.4	26.3	18.9		11.5	7.1		5.0		3.2		0.8	81
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air suppy pressure bar	Air consumption NL/min		10	20	30		40	50		60			70		80	Max. vacuum level -kPa
ABP-10	5.0	38		0.12	0.32	0.61		1.08	1.76		2.73			4.29		7.58	81
