ABQ Series Vacuum Generator with Fast Blow-off

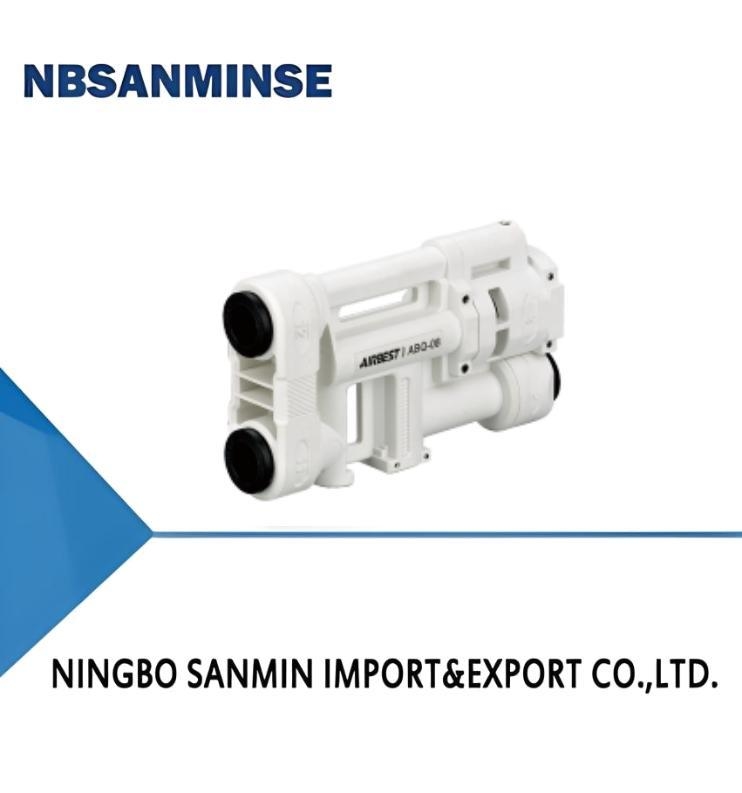

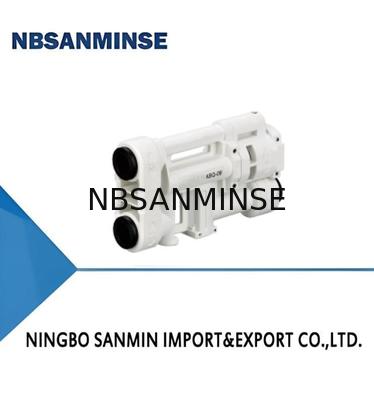

Large Image : ABQ Series Vacuum Generator with Fast Blow-off

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	ABQ-08

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

ABQ Series Vacuum Generator with Fast Blow-off

Description

Pressure:

5.0 Bar

Max. Vacuum Level:

81 -kPa

Max. Vacuum Flow:

38NL/min

Air Consumption:

38 NL/min

Highlight:

ABQ Series vacuum generator

pneumatic solenoid valve with fast blow-off

vacuum generator with warranty

Features

◇ Plastic housing,compact size and light weight

◇ Connect plug-in fitting directly

◇ Optimal direct lateral exhaust design

◇ Built-in fast blow-off device

Advantages

◇ Suitable for installing in narrow space

◇ Easy installation, no need extra mounting accessory

◇ Minimize product noise

◇ Safe and reliable with fast blow-off system

Applications

◇ Suitable for handling system with limited space

◇ Suitable for occasions where require safe and quick release of

the workpieces

◇ Suitable for occasions where need to grip and release workpieces

fastly, and there is requirement forlight weight of whole equipment, etc.

Structure

◇ (11) Air supply port

◇ (12) Vacuum release port

◇ (2) Vacuum port

◇ (3) Exhaust port

ABP
①②
①Series				② Specification
ABP				08
Technical parameters
Model	Air supply pressure range bar	Ratedairsupply pressure bar	Max. wacuum level -kPa	Maxflow NL/min		Air consumption NL/min		Noise level dB(A)	Working temperature ℃			Weight g		Recommended h Air supply port P			ose da.(mm) Vacuumport V
ABQ-08	4.0~7.0	5.0	81	38		38		70	0~60			55		φ8			φ8
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30		40	50		60		70		80	Max. vacuum level -kPa
ABQ-08	5.0	38	38.0	32.4	26.3	18.9		11.5	7.1		5.0		3.2		0.8	81
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air suppy pressure bar	Air consumption NL/min	10	20	30		40	50		60			70		80	Max. vacuum level -kPa
ABQ-08	5.0	38	0.12	0.32	0.61		1.08	1.76		2.73			4.29		7.58	81
