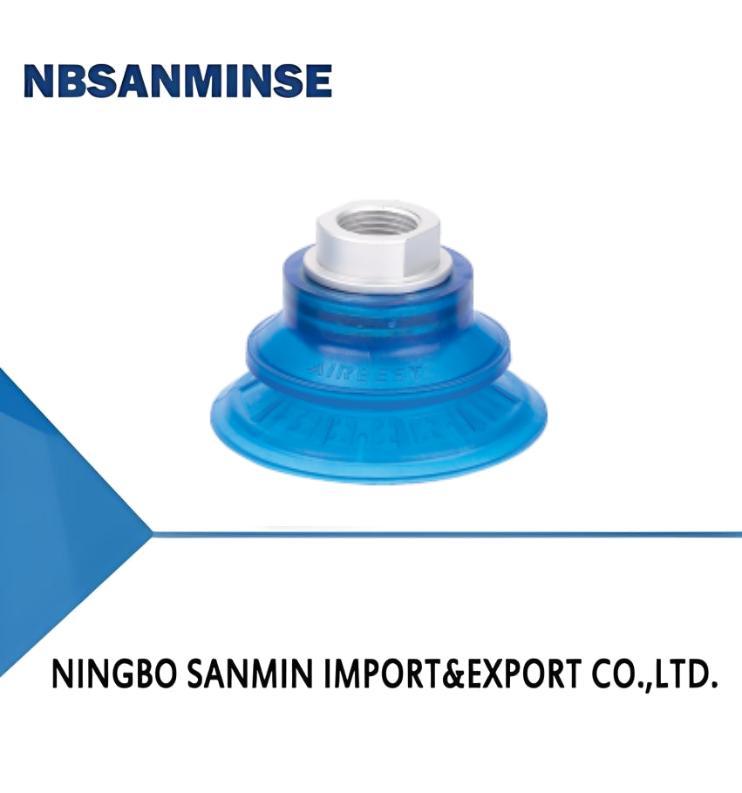

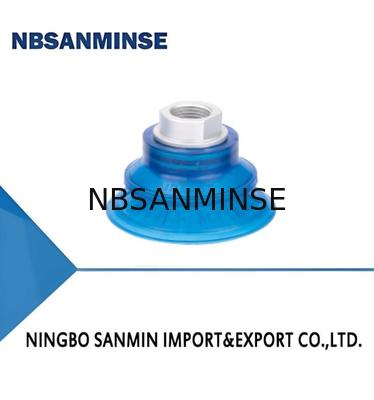

SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet

SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet
SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet
SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet

Large Image :  SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SBF30
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet

Description
Inner Volume: 5.5 Cm³ Pull-out: 33force N
Min.curve Radius Of Workpiece: 30 Mm Material & Hardness: U - PU,70
Connection Thread: G2F - G1/4 Female Thread
Highlight:

SBF Series bellows suction cup

,

metal sheet suction cup

,

pneumatic solenoid valve accessory

Features
◇ 1.5 Bellows
◇ PU material
◇ Internal large area support structure
◇ Various sizes for option
Advantages
◇ Easy to fit uneven surface of workpiece, and has buffer effect
◇ Excellent wear resistance and oil resistance, long lifetime
◇ Effectively increase the friction force between suction cups and workpieces
◇ Suitable for workpieces with different sizes and shapes
Applications
◇ Handling metal sheet in high speed, short cycle time
◇ Handling metal sheet and aluminum plate without deformation
◇ Special pattern slot design of suction cup prevents from slipping
during handling oily sheet metal, ensuring accurate positioning
◇ Used in automotive stamping metal parts handling system
SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet 0
Structure
◇1.5 Bellows, large compressed stroke
◇Suction cup and fitting are one-piece structure design
SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet 1

SBF  50  U-G3F
①   ②③   ④
①Series ②Diameter ③Material&Hardness ④Connection thread
SBF 30-φ32mm U-PU            70 G2F-G1/4 female thread

40-φ42mm
G3F-G3/8female thread
50-φ51.5mm
G2M-G1/4male thread
60-φ64mm
M10M-M10×1.5male thread
80-φ84mm
RA-Rectangular adapter
100-φ103mm

Selection-Model(Connecton thread)
Model Connection thread
G2M		 M10M G2F G3F RA-Rectangular adapter
SBF30U-□ SBF30U-G2M SBF30U-M10M SBF30U-G2F SBF30U-G3F SBF30U-RA
SBF40U-□ SBF40U-G2M SBF40U-M10M SBF40U-G2F SBF40U-G3F SBF40U-RA
SBF50U-□ SBF50U-G2M SBF50U-M10M SBF50U-G2F SBF50U-G3F SBF50U-RA
SBF60U-□ SBF60U-G2M SBF60U-M10M SBF60U-G2F SBF60U-G3F SBF60U-RA
SBF80U-□ SBFBOU-G2M SBF80U-M10M SBF80U-G2F SBFBOU-G3F SBF80U-RA
SBF100U-□ SBF100U-G2M SBF100U-M10M SBF100U-G2F SBF100U-G3F SBF100U-RA
Technical parameters
Model Pull-outforce N Inner volume
   cm³		 Min.aurve radius of workpiece
        mm		 Weight
 g		 Recommended hose dia
mm		 MPQ
pcs
SBF30 33  5.5  30  18.5  6  1
SBF40 60  7.0  45  20.0  6  1
SBF50 103  11.5  50  40.0  8  1
SBF60 145  22.0  55  45.0  8  1
SBF80 235  60.0  72  75.0  10  1
SBF100 380  98.0  97  118.0  10  1

◇ Note: Testing vacuum level -60kPa,workpiece with smooth and clean surface.
   The data of pull-out force as above are figured out without considering safety factor.
   The data may be different according to different workpiece surface.
SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet 2
◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
