SFM Series Flat Suction Cup Special for Oily Metal Sheet

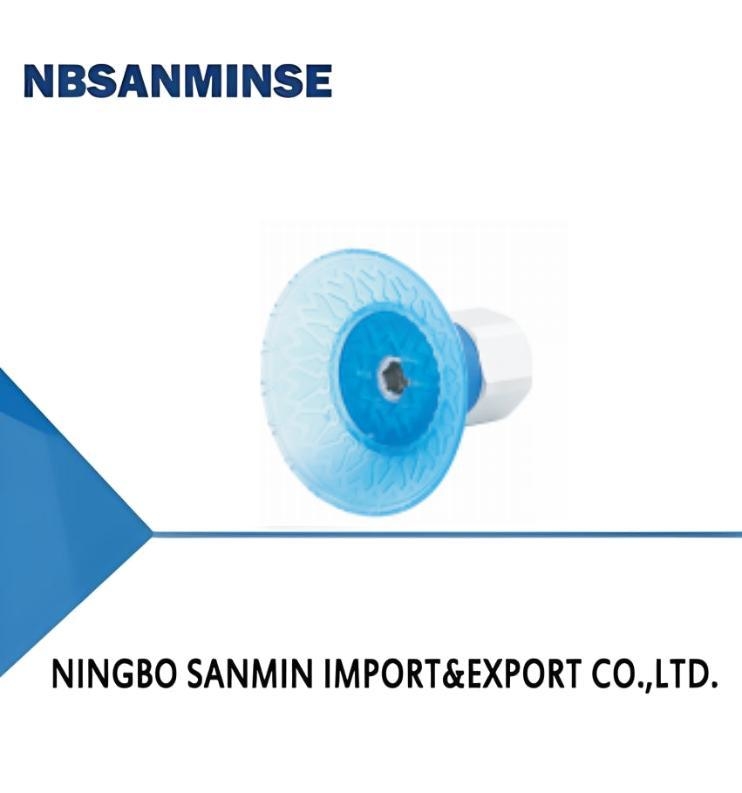

Large Image : SFM Series Flat Suction Cup Special for Oily Metal Sheet

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	SFM30

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

SFM Series Flat Suction Cup Special for Oily Metal Sheet

Description

Diameter:	30 - φ30mm	Connection Thread:	Nil - Suction Cup Only
Pull-out Force N:	45	Inner Volume Cm³:	4.5
Min.curve Radius Of Workpiece Mm:	25
Highlight:	flat suction cup for oily metal , SFM series pneumatic suction cup , metal sheet suction cup with warranty

Features

◇ Large compressed stroke, good flexibility

◇ PU material

◇ Internal large area support structure

◇ Various sizes are available

Advantages

◇ Easy to fit workpieces with different shapes of surfaces

◇ Long lifetime, and wearresistance, ozone resistance and oilresistance

are excellent

◇ Effectively enhance friction force between suction cups and workpieces

◇ Suitable for workpieces with different sizes and shapes

Applications

◇ Handling of oily metal sheet

◇ Handling curved metal sheet

◇ Handling automotive stamping metal parts

Structure

◇ Split structure design, wearing parts can be replaced separately

SFM 50 U -G3F

①②③④

①Series

②Diameter

③Material&Hardness

④Connection thread

SFM

30-p30mm

U-PU 70

Nil-Suction cuponly

40-40mm

G1F-G1/8 female thread

50-φ50mm

G2F-G1/4 female thread

60-φ60mm

G3F -G3/8 female thread

80-φ80mm

G2M -G1/4male thread

100-φ100mm

M10M-M10×1.5 male thread

120-φ120mm

M14M-M14×1.5 male thread
RA-Rectangular adapter

selection

Model

Connection thread
G2M

M10M

M14M

G1F

G2F

G3F

SFM30U

SFM30U-M10M

SFM30U-G1F

SFM30U-RA

SFM40U

SFM40U-M10M

SFM40U-G1F

SFM40U-RA

SFM50U

SFM50UG2M

SFM50U-M10M

SFM50U-M14M

SFM50U-G2F

SFM50U-G3F

SFM50U-RA

SFM60U

SFM60U-G2M

SFM60U-M10M

SFM60U-M14M

SFM60U-G2F

SFM60U-G3F

SFM60U-RA

SFM80U

SFMBOU-G2M

SFM80U-M10M

SFM8DU-M14M

SFM80U-G2F

SFM80U-G3F

SFM80U-RA

SFM100U

SFM100U-G2M

SFM100U-M10M

SFM100U-M14M

SFM100U-G2F

SFM100U-G3F

SFM100U-RA

SFM120U

SFM120U-G2M

SFM120U-M10M

SFM120U-M14M

SFM120U-G2F

SFM120U-G3F

SFM120U-RA

Technical parameters
Model	Pull-out force N	Inner volume cm³	Min.curve radius of workpiece mm	Weight g	Recommended hose dia.mm	MPQ pcs
SFM30	45	4.5	25	3.5	5	1
SFM40	70	8.5	30	5.0	6	1
SFM50	112	18.6	35	8.5	8	1
SFM60	150	26	40	11	8	1
SFM80	285	56	50	21	8	1
SFM100	420	105	70	35	10	1
SFM120	580	153	90	55	10	1

SFM Series Flat Suction Cup Special for Oily Metal Sheet 2

SFM Series Flat Suction Cup Special for Oily Metal Sheet 3

M - Male thread connection

◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
