STC Series 1.5 Bellows Suction Cup Special for Metal Sheet

STC Series 1.5 Bellows Suction Cup Special for Metal Sheet
STC Series 1.5 Bellows Suction Cup Special for Metal Sheet
STC Series 1.5 Bellows Suction Cup Special for Metal Sheet STC Series 1.5 Bellows Suction Cup Special for Metal Sheet

Large Image :  STC Series 1.5 Bellows Suction Cup Special for Metal Sheet

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: STC22
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

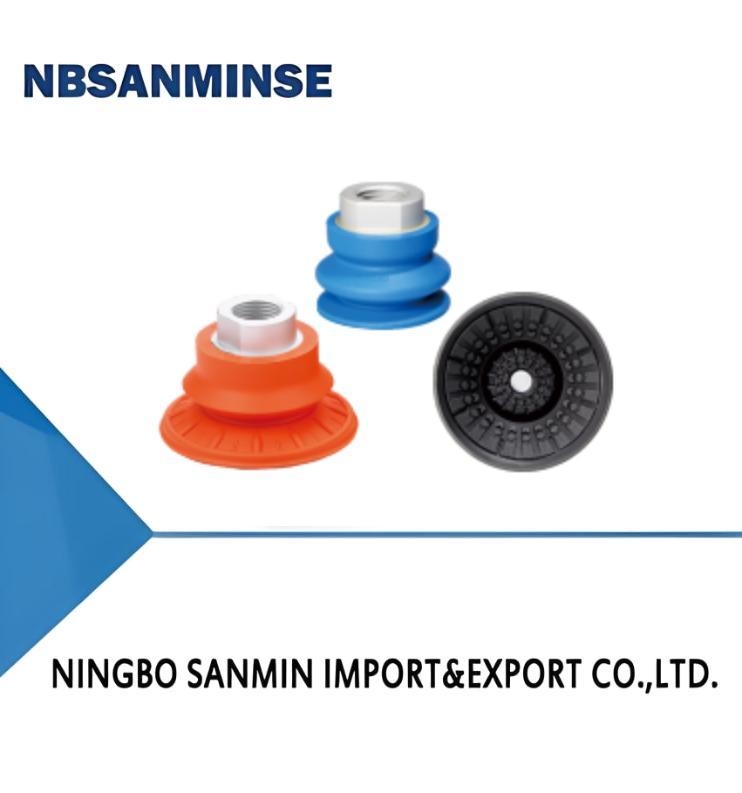

STC Series 1.5 Bellows Suction Cup Special for Metal Sheet

Description
Inner Volume: 1.5 Cm³ Vertical Pull-out: 23 N
Lateral Pull-outforce: 20 N Min.curve Radius Of: 20 Mm
Lateral Pull-out: 6.5Oily Surface (N)
Highlight:

STC Series bellows suction cup

,

metal sheet suction cup

,

pneumatic solenoid valve accessory

Features
◇ 1.5 Bellows structure
◇ Internal large area pattern support structure
◇ Various sizes and specifications are available
Advantages
◇ Easy to fit the uneven surface of workpiece, and has buffereffect
◇ Effectively enhance friction force between suction cupsand workpieces
◇ The max. temp of HK material is 250℃, it can be used to pick up high temp metal sheet
◇ The max. temp of HD material is 160℃, it can be used to pick up high temp glass without mark
◇ Suitable for workpieces with different sizes and shapes
Applications
◇ Suitable for fast handling of metal plates, short cycle time
◇ Handling metal sheet and aluminum plates without deformation
◇ The internal special pattern groove design prevents the oily sheet
metal from slipping during handling
◇ Used in automotive stamping metal parts handling system
STC Series 1.5 Bellows Suction Cup Special for Metal Sheet 0
Structure
◇ 1.5 Bellows structure, large compressed stroke
◇ Suction cup and fitting are one-piece structure design
STC Series 1.5 Bellows Suction Cup Special for Metal Sheet 1

STC   50   N-G3F
①   ② ③     ④
①Series Diameter ③Material&Hardnes5
④Connection thread
STC 22-φ22mm N-NBR 60  G2F-G1/4 female thread
30-φ30mm HK-Extra high temp rubber 65  G3F-G3/8 female thread
40-φ40mm HD-High temp/mark free material 60  G2M-G1/4 male thread
50-φ50mm

M10M-M10×1.5 male thread
60-p60mm M14M-M14×1.5 male thread
80-φ80mm RA-Rectangular adapter
100-φ100mm
125-φ125mm

selection
Model Connection thread G2M M10M M14M G2F G3F RA
STC22N-□ STC22N-G2M STC22N-M10M STC22N-M14M STC22N-G2F STC22N-G3F STC22N-RA
STC30N-□ STC30N-G2M STC30N-M10M STC30N-M14M STC30N-G2F STC30N-G3F STC30N-RA
STC40N-□ STC40N-G2M STC40N-M10M STC40N-M14M STC40N-G2F STC40N-G3F STC40N-RA
STC50N-□ STC50N-G2M STC50N-M10M STC50N-M14M STC50N-G2F STC50N-G3F STC50N-RA
STC60N-□ STC60N-G2M STC60N-M10M STC60N-M14M STC60N-G2F STC60N-G3F STC60N-RA
STC80N-□ STC8ON-G2M STCBON-M10M STC80N-M14M STC8ON-G2F STCBON-G3F STC80N-RA
STC100N-□ STC100N-G2M STC100N-M10M STC100N-M14M STC100N-G2F STC100N-G3F STC100N-RA
STC125N-□ STC125N-G2M STC125N-M10M STC125N-M14M STC125N-G2F STC125N-G3F STC125N-RA



Model Connection thread
G2M		 G2F Model
G3F		 Connection thre
G2M		 ad
G2F		 G3F
STC22HK-□ STC22HK-G2M STC22HK-G2F STC22HK-G3F STC22HD-□ STC22HD-G2M STC22HD-G2F STC22HD-G3F
STC30HK-□ STC30HK-G2M STC30HK-G2F STC30HK-G2F STC30HD-□ STC30HD-G2M STC30HD-G2F STC30HD-G3F
STC40HK-□ STC40HK-G2M STC40HK-G2F STC40HK-G3F STC40HD-□ STC40HD-G2M STC40HD-G2F STC40HD-G3F
STC50HK-□ STC50HK-G2M STC50HK-G2F STC50HK-G3F STC50HD-□ STC50HD-G2M STC50HD-G2F STC50HD-G3F
STC60HK-□ STC60HK-G2M STC60HK-G2F STC60HK-G3F STC60HD-□ STC60HD-G2M STC60HD-G2F STC60HD-G3F
STCB0HK-□ STC80HK-G2M STC80HK-G2F STCBOHK-G3F STCBOHD-□ STCBOHD-G2M STC8OHD-G2F STCBOHD-G3F
STC100HK-□ STC100HK-G2M STC100HK-G2F STC100HK-G3F STC100HD-□ STC100HD-G2M STC100HD-G2F STC100HD-G3F
STC125HK-□ STC125HK-G2M STC125HK-G2F STC125HK-G3F STC125HD-□ STC125HD-G2M STC125HD-G2F STC125HD-G3F

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces
STC Series 1.5 Bellows Suction Cup Special for Metal Sheet 2
STC Series 1.5 Bellows Suction Cup Special for Metal Sheet 3
M - Male thread
◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
