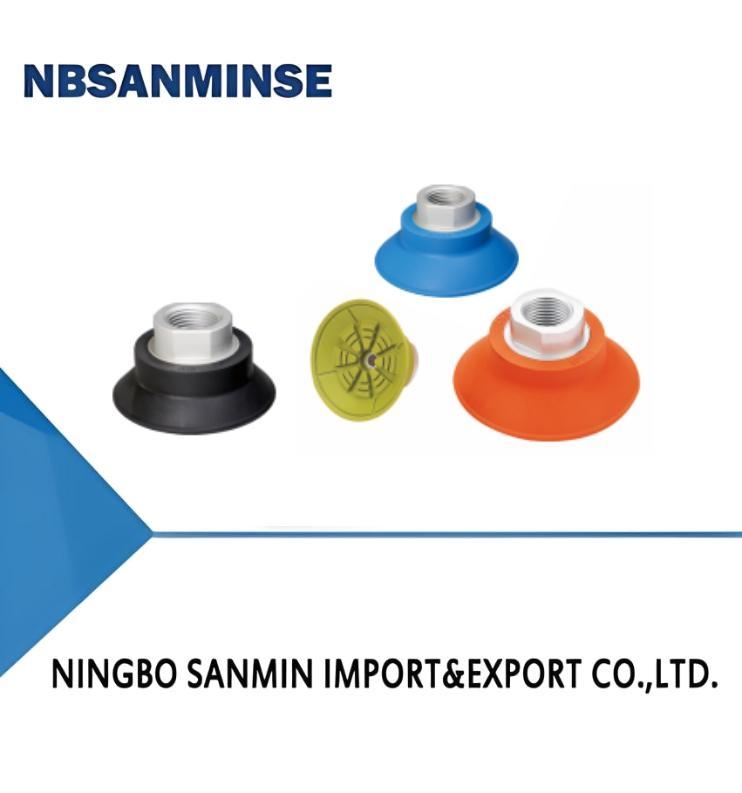

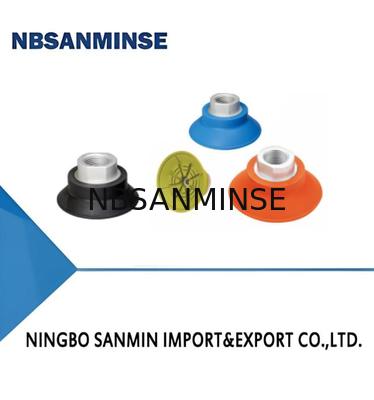

SFF Series Flat Suction Cup Speical for Metal Sheet

Contact Now

SFF Series Flat Suction Cup Speical for Metal Sheet

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SFF30

Detail Information
Vertical Pull-out Force N:	45	Lateral Pull-out Force N:	35
Lateral Pull-out Force Oily Surface(N):	33	Inner Volume Cm³:	1.6
Min.curve Radius Of Workpiece Mm:	35

Product Description

Features

◇ Internal large area support structure

◇ Various sizes are available

Advantages

◇ Effectively enhance the friction force between suction cups

and workpieces

◇ The max. temp of HK material is 250℃, it can be used to

pick up high temp metal sheet

◇ The max. temp of HD material is 160℃, it can be used to

pick up high temp glass without mark

◇ Suitable for workpieces with different sizes and shapes

Applications

◇ Handling of oily metal sheet

◇ Handling metal sheet and aluminum plates without deformation

◇ Used for loading and unloading of material during CNC or machine

tool processing

◇ Handling curved metal sheets

◇ Used in automotive stamping metal parts handling systems

Structure

◇ Suction cup and fitting are one-piece structure

SFF 50 N-G3F

①Series

②Diameter

③Material &Hardness

④Connection thread

30-中30mm

N -NBR

G2F -G1/4 female thread

40-中40mm

NG-NBR

G3F -G3/8 female thread

50 -中50mm

HK -Extra high temp rubber

G2M -G1/4 male thread

60-中60mm

HD-High temp/markfree material

M10M-M10×1.5male thread

80-中80mm

M14M-M14×1.5male thread

100-中100mm

RA -Rectangular adapter

125-φ125mm

Selection

Model

Connection threa
G2M

d
M10M

SFF30N-□
SFF40N-□

SFF30N-G2M
SFF40N-G2M

SFF30N-M10M
SFF40N-M10M

SFF30N-M14M
SFF40N-M14M

SFF30N-G2F
SFF40N-G2F

SFF30N-G3F
SFF40N-G3F

SFF30N-RA

SFF40N-RA

SFF50N-口

SF50N-G2M

SFF50N-M10M

SFF50N-M14M

SFF50N-G2F

SFF50N-G3F

SFF50N-RA

SFF60N-□

SFF60N-G2M

SFF60N-M10M

SFF60N-M14M

SFF60N-G2F

SFF60N-G3F

SFF60N-RA

SFF80N-□

SFF80N-G2M

SFF80N-M10M

SFFB0N-M14M

SFFB0N-G2F

SFFBON-G3F

SFF80N-RA

SFF100N-□

SFF100N-G2M

SFF100N-M10M

SFF100N-M14M

SFF100N-G2F

SFF100N-G3F

SFF100N-RA

SFF125N-□

SFF125N-G2M

SFF125N-M10M

SFF125N-M14M

SFF125N-G2F

SFF125N-G3F

SFF125N-RA

Model

Connection threa
G2M

d
M10M

SFF30NG-□

SFF30NG-G2M

SFF30NG-M10M

SFF30N-M14M

SFF30NG-G2F

SFF30NG-G3F

SFF30NG-RA

SFF40NG-□

SFF40NG-G2M

SFF40NG-M10M

SFF40N-M14M

SFF40NG-G2F

SFF40NG-G3F

SFF40NG-RA

SFF50NG-□

SFF50NG-G2M

SFF50NG-M10M

SFF50N-M14M

SFF50NG-G2F

SFF50NG-G3F

SFF50NG-RA

SFF60NG-□

SFF60NG-G2M

SFF60NG-M10M

SFF60N-M14M

SFF60NG-G2F

SFF60NG-G3F

SFF60NG-RA

SFF80NG-□

SFF80NG-G2M

SFF80NG-M10M

SFFBON-M14M

SFFBONG-G2F

SFFBONG-G3F

SFF80NG-RA

SFF100NG-□

SFF100NG-G2M

SFF100NG-M10M

SFF100N-M14M

SFF100NG-G2F

SFF100NG-G3F

SFF100NG-RA

SFF125NG-□

SFF125NG-G2M

SFF125NG-M10M

SFF125N-M14M

SFF125NG-G2F

SFF125NG-G3F

SFF125NG-RA

Model

Connection thre

ad
G2F

Model
G3F

Connection thre
G2M

ad
G2F

SFF30HK-□

SFF30HK-G2M

SFF30HK-G2F

SFF30HK-G3F

SFF3OHD-□

SFF30HD-G2M

SFF30HD-G2F

SFF30HD-G3F

SFF40HK-□

SFF40HK-G2M

SFF40HK-G2F

SFF40HK-G3F

SFF40HD-□

SFF40HD-G2M

SFF40HD-G2F

SFF40HD-G3F

SFF50HK-□

SFF50HK-G2M

SFF50HK-G2F

SFF50HK-G3F

SFF50HD-□

SFF50HD-G2M

SFF50HD-G2F

SFF50HD-G3F

SFF60HK-□

SFF60HK-G2M

SFF60HK-G2F

SFF60HK-G3F SFF60HD-□

SFF60HD-G2M

SFF60HD-G2F

SFF60HD-G3F

SFF8OHK-□

SFFB0HK-G2M

SFFBOHK-G2F

SFFBOHK-G3F

SFFBOHD-□

SFFBOHD-G2M

SFFB0HD-G2F

SFF80HD-G3F

SFF100HK-□

SFF100HK-G2M

SFF100HK-G2F

SFF100HK-G3F

SFF100HD-□

SFF100HD-G2M

SFF100HD-G2F

SFF100HD-G3F

SFF125HK-□

SFF125HK-G2M

SFF125HK-G2F

SFF125HK-G3F

SFF125HD-□

SFF125HD-G2M

SFF125HD-G2F

SFF125HD-G3F

Technical parameters
Model	Vertical pull-out force N	Lateral pull-out force N	Lateral pull-out force oily surface(N)	Inner volume cm³	Min.curve radius of workpiece mm	Weight 9	Recommended hose dia mm	MPQ pcs
SFF30 SFF40 SFF50	4572	3554	3351	1.6 3.5	35 47.5	1113	66	1
	4572	3554	3351	1.6 3.5	35 47.5	1113	66	1
	112	90	86	7.5	70	20	8	1
SFF60	145	102	93	12.6	81	26	8	1
SFF80	288	212	190	35	115	43	8	1
SFF100	445	322	308	60	141	57	8	1
SFF125	660	475	400	115	165	145	10	1

M - Male thread connection

◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
